Installation





DOOR LOCK: DOOR CONTROL RECEIVER (for Luggage Compartment): INSTALLATION

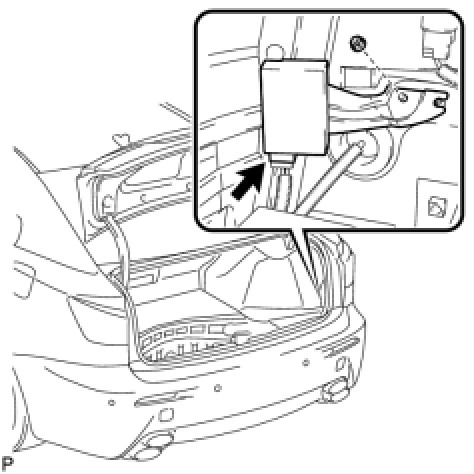

1. INSTALL NO. 2 DOOR CONTROL RECEIVER

(a) Install the door No. 2 control receiver with the nut.





(b) Connect the connector.

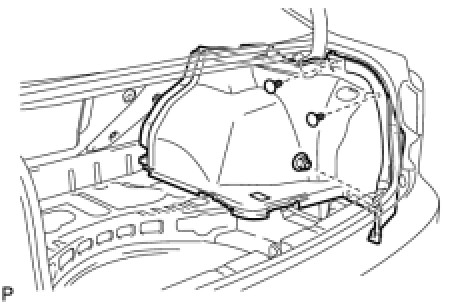

2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER RH

(a) Install the side luggage compartment trim cover with the 3 clips.





3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

(a) Install the No. 1 luggage compartment trim hook with the screw.





4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER Installation

5. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK Installation

6. INSTALL ROPE HOOK Installation

7. INSTALL NO. 2 ROOM LIGHT ASSEMBLY Installation

8. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER Installation

9. INSTALL ROPE HOOK ASSEMBLY

(a) Install the 3 rope hook assemblies with the 3 bolts.





10. INSTALL DECK SIDE TRIM BOX RH

11. INSTALL DECK SIDE TRIM BOX LH

12. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER
