Repair Instruction - Initialization
INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION 1.

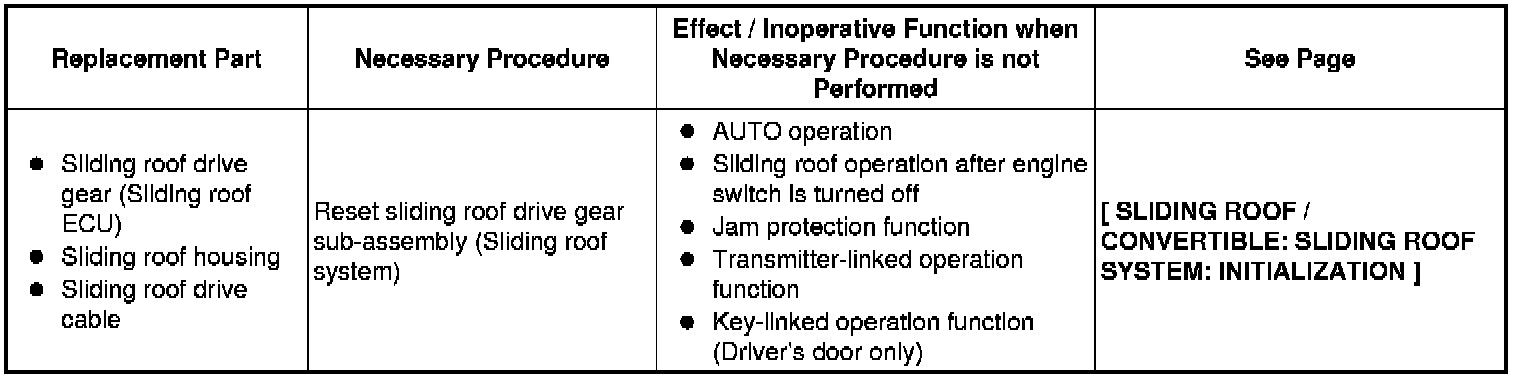

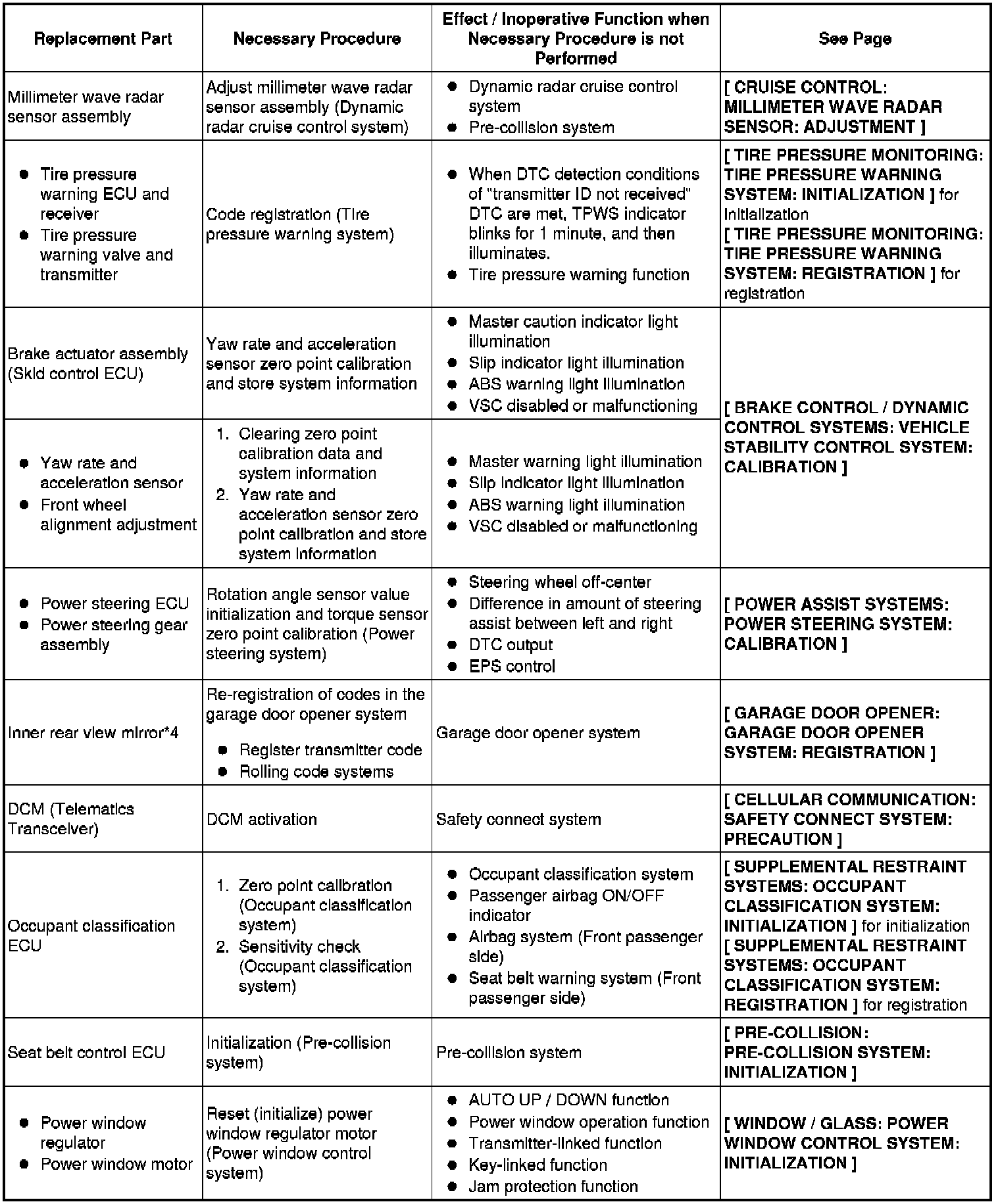

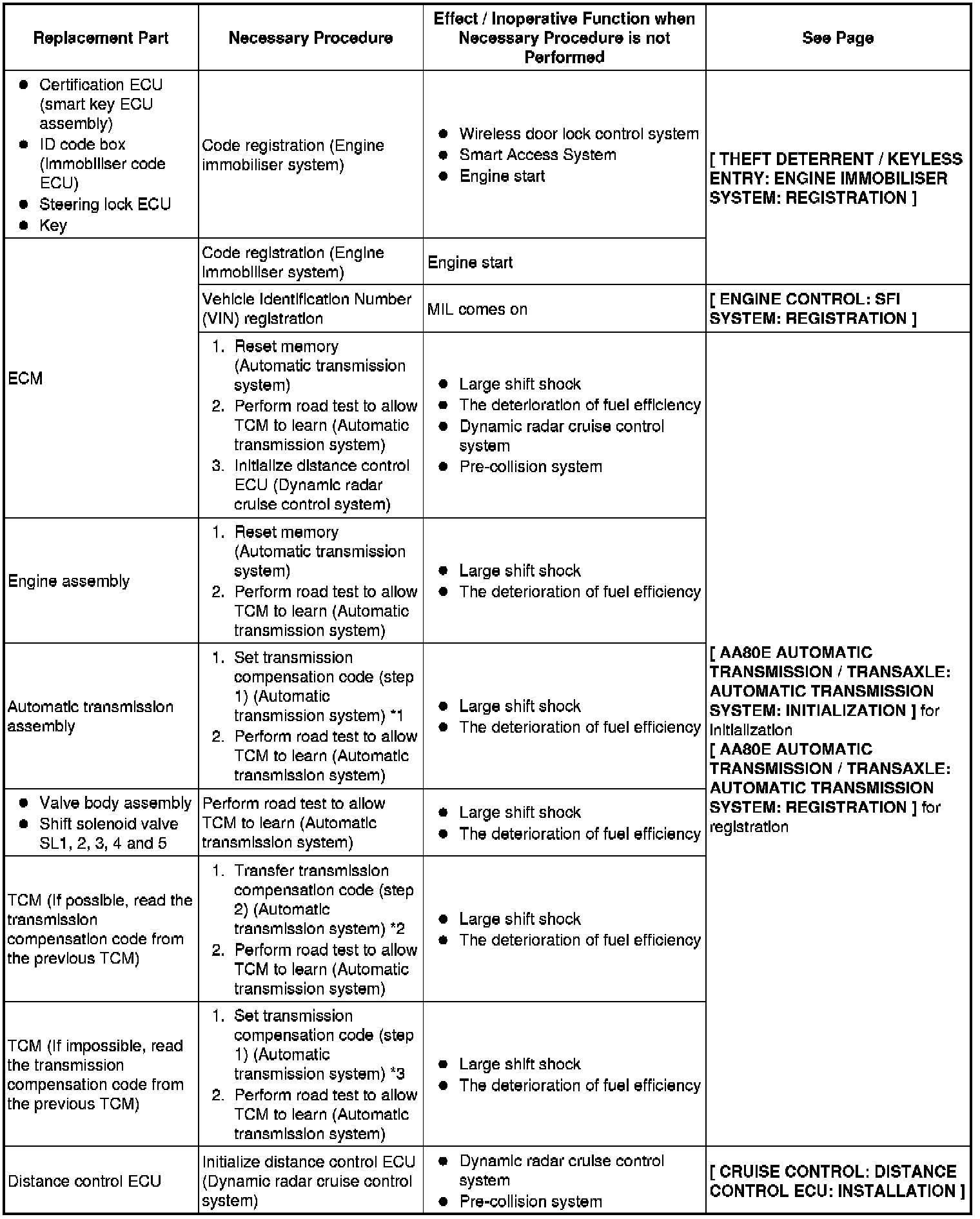

PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED
*
*1: New automatic transmission's compensation code.
*
*2: Read the compensation code from the previous
TCM, then transfer it to the new TCM.
*
*3: Set the transmission compensation code of the current automatic transmission.
*
*4: Garage Door Opener System
