IG Power Source Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: IG Power Source Circuit
- IG Power Source Circuit

DESCRIPTION

When the engine switch is turned on (IG), the IG power source circuit supplies positive (+) voltage to the multiplex tilt and telescopic ECU.

The multiplex tilt and telescopic ECU also receives engine switch signals via this circuit.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (D-IG1-1)

(a) Remove the D-IG1-1 fuse from the main body ECU.

(b) Measure the resistance of the fuse.

Standard resistance:





NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK MULTIPLEX TILT AND TELESCOPIC ECU (IG TERMINAL VOLTAGE)

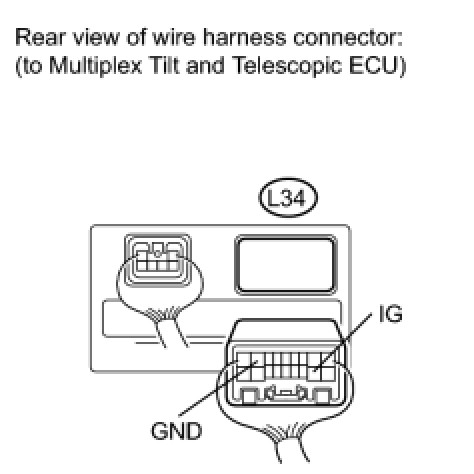

(a) Disconnect the L34 connector from the multiplex tilt and telescopic ECU.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
NG -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - MAIN BODY ECU)





(a) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MAIN BODY ECU - BATTERY)

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - MAIN BODY ECU)
