Climate Control Seat [Driver's Seat and Front Passenger's Seat]

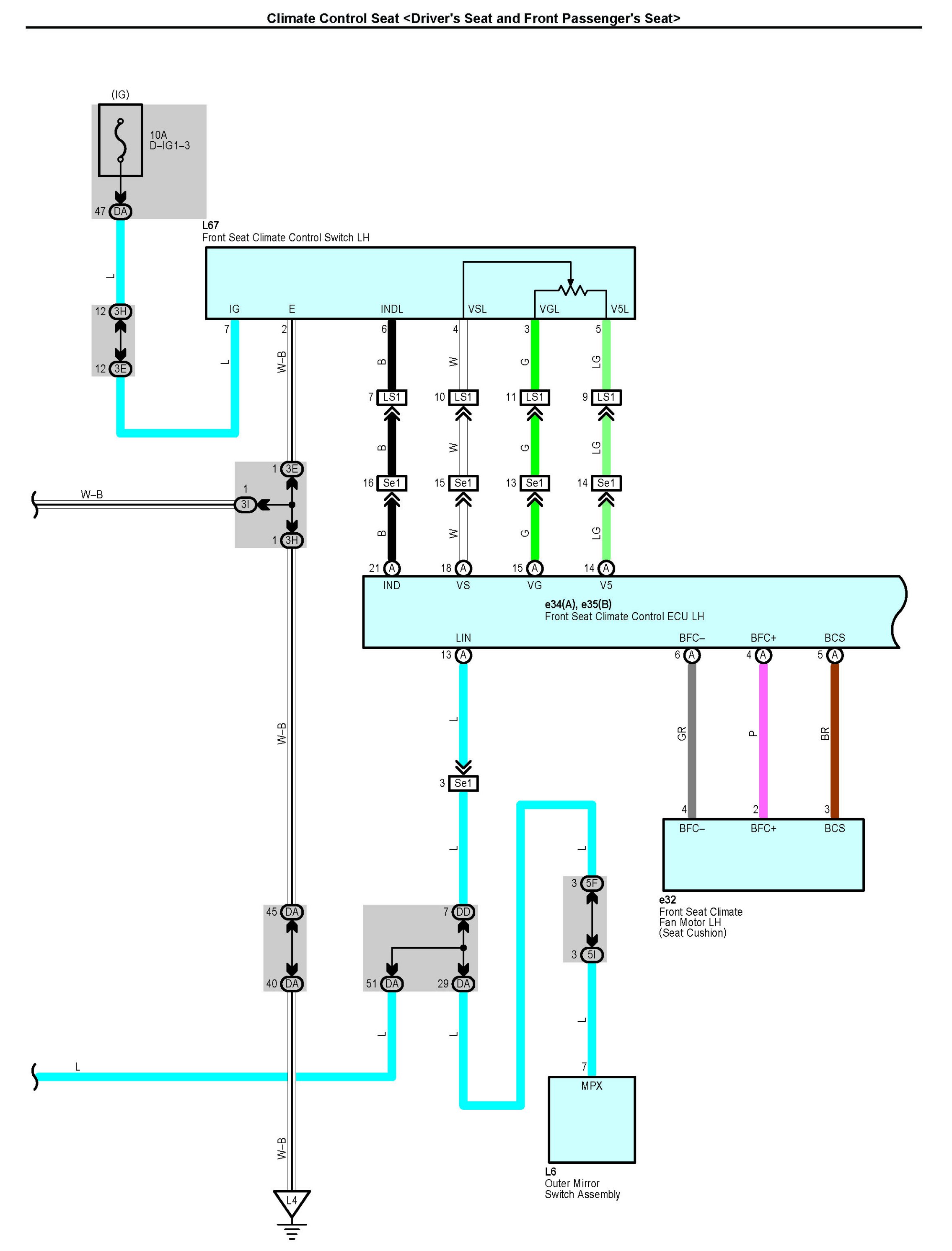

Climate Control Seat [Driver's Seat and Front Passenger's Seat] Part 1:

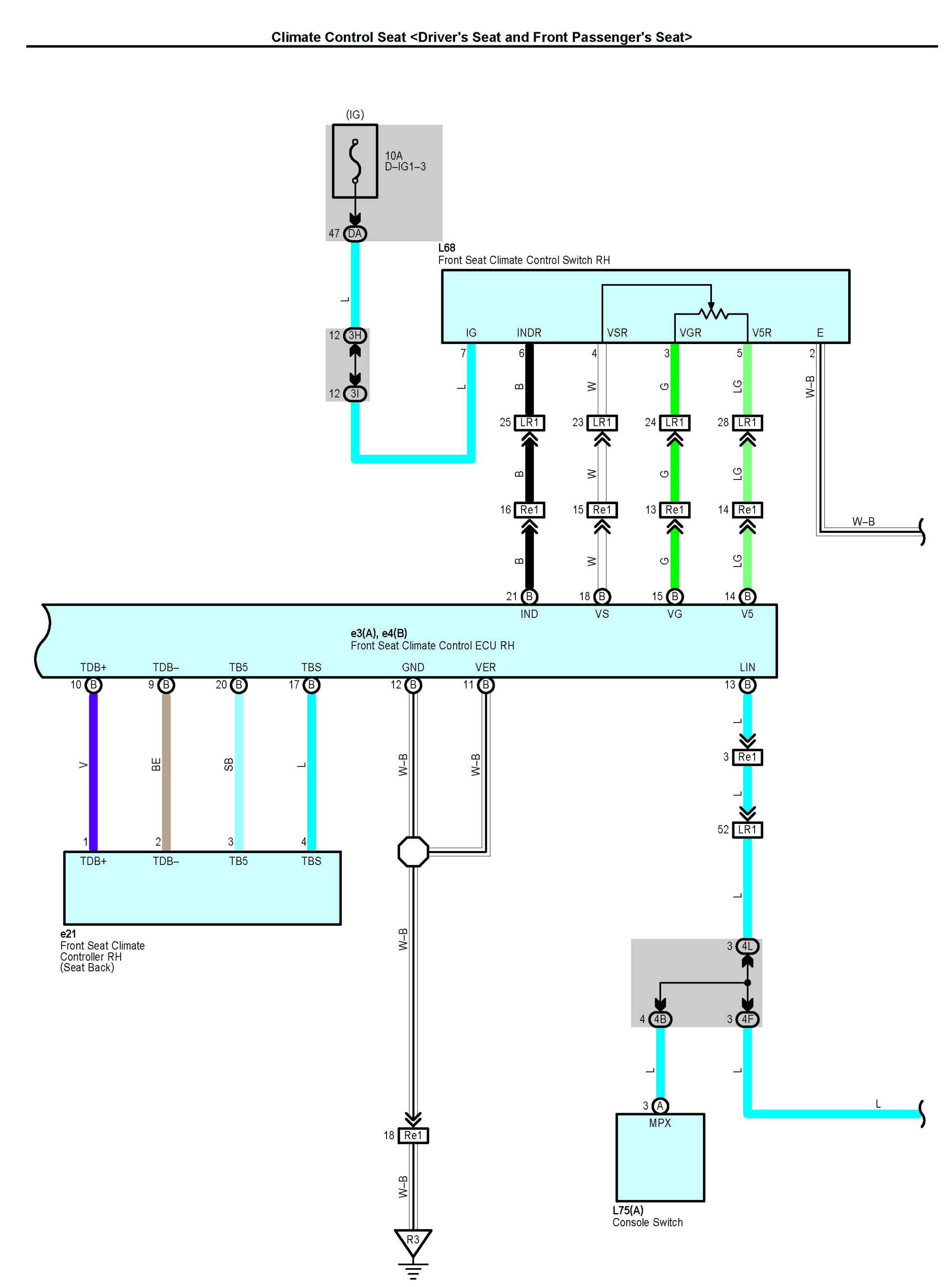

Climate Control Seat [Driver's Seat and Front Passenger's Seat] Part 2:

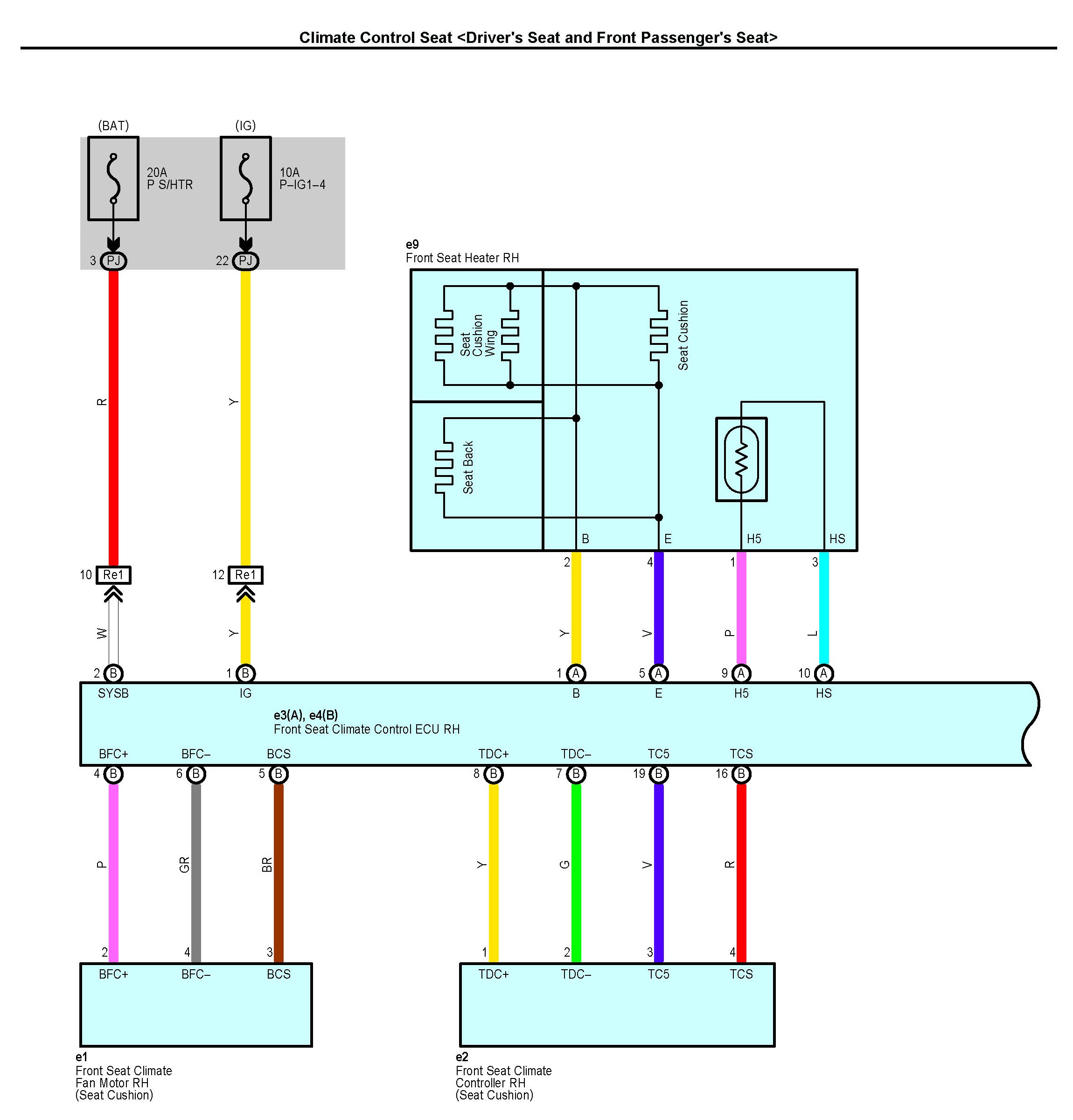

Climate Control Seat [Driver's Seat and Front Passenger's Seat] Part 3:

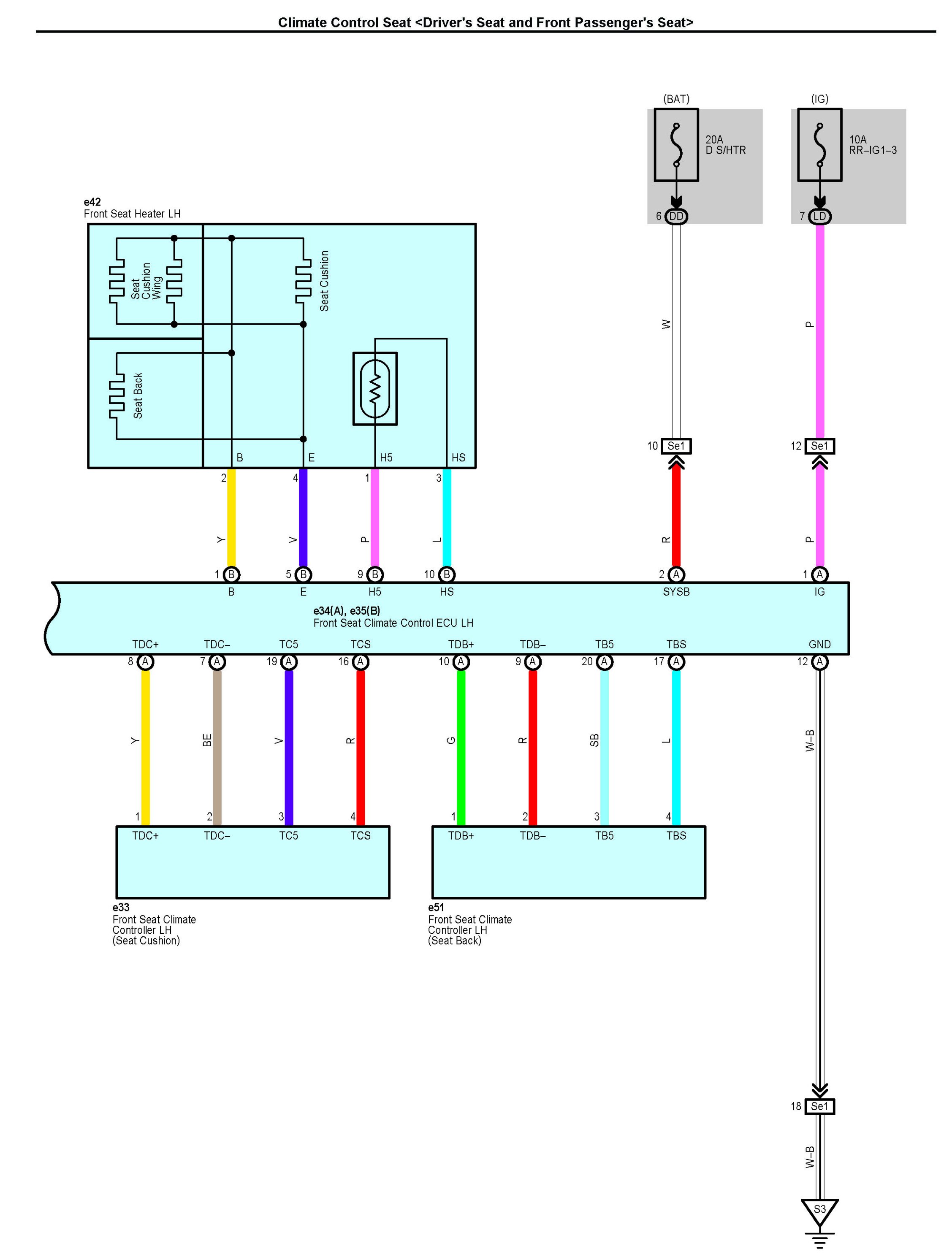

Climate Control Seat [Driver's Seat and Front Passenger's Seat] Part 4:

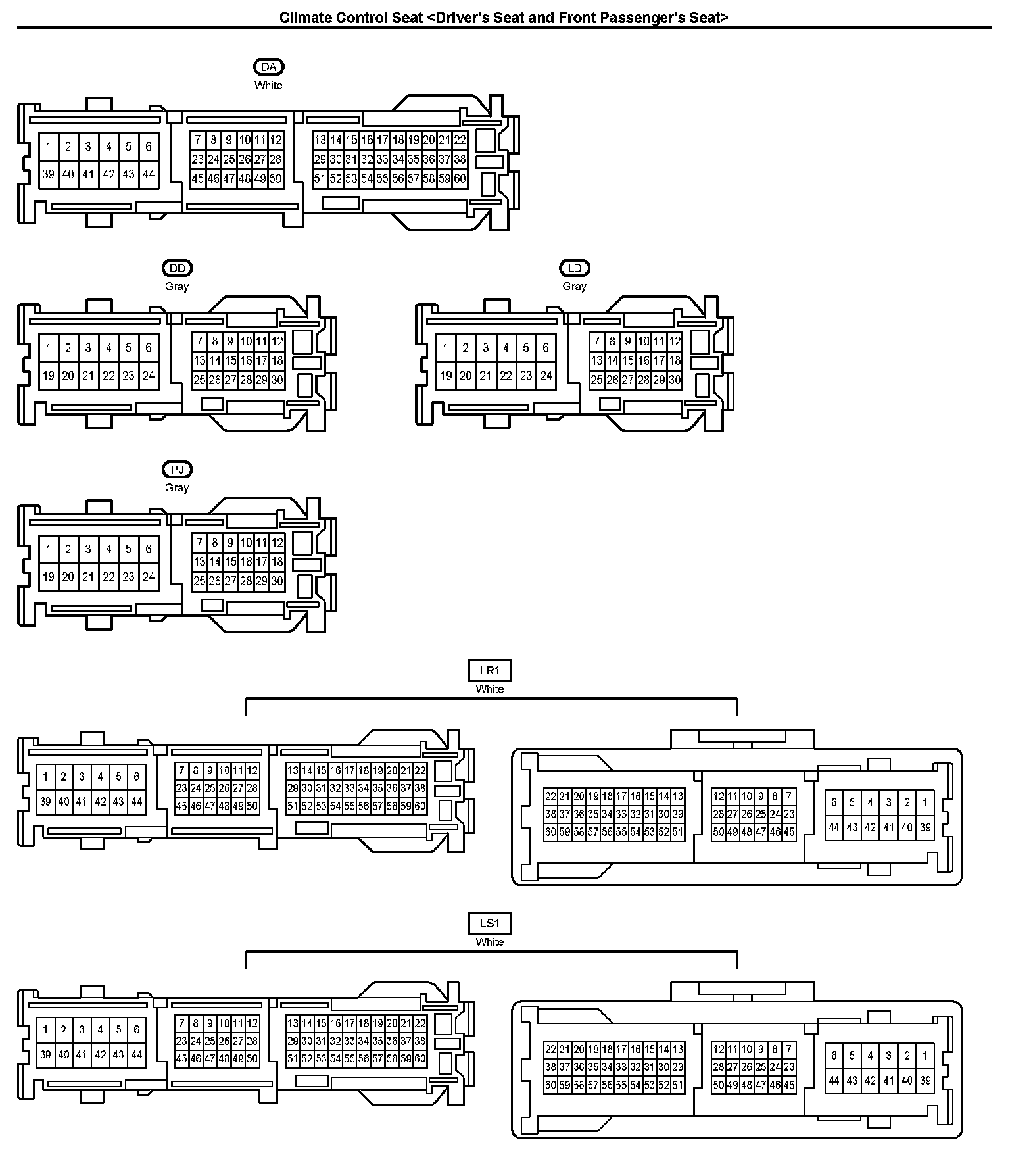

Connectors Part 1:

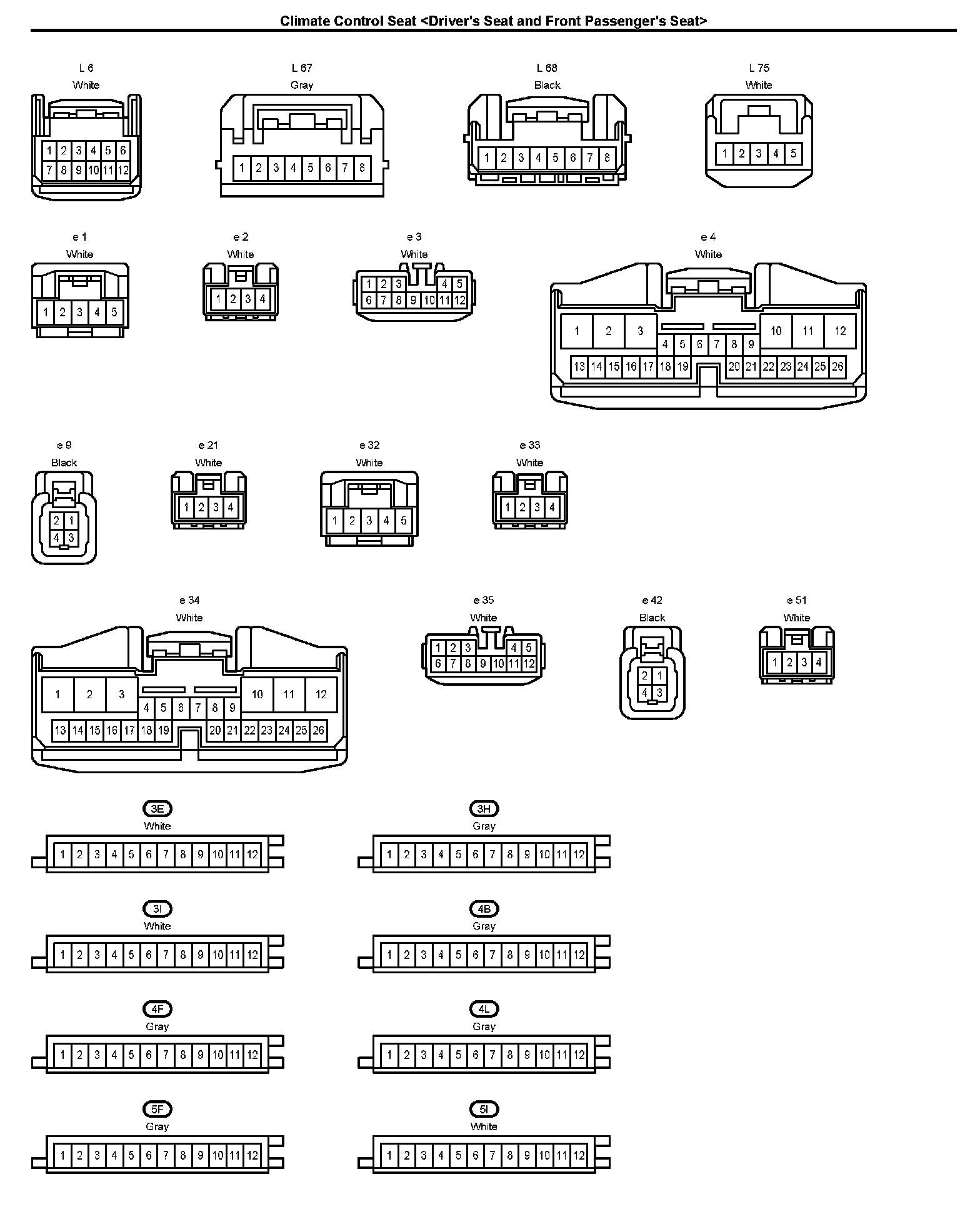

Connectors Part 2:

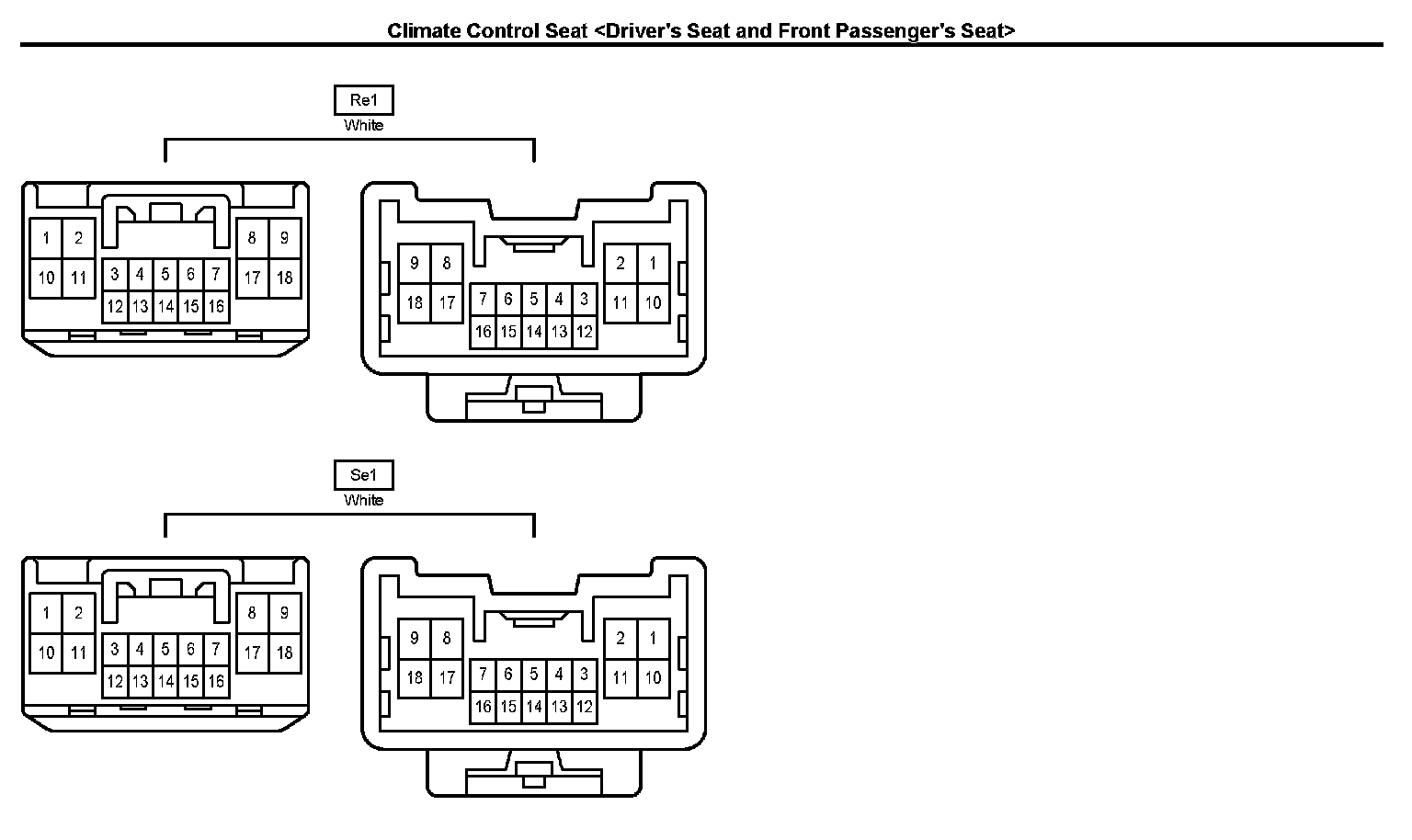

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
