Electrical Diagrams

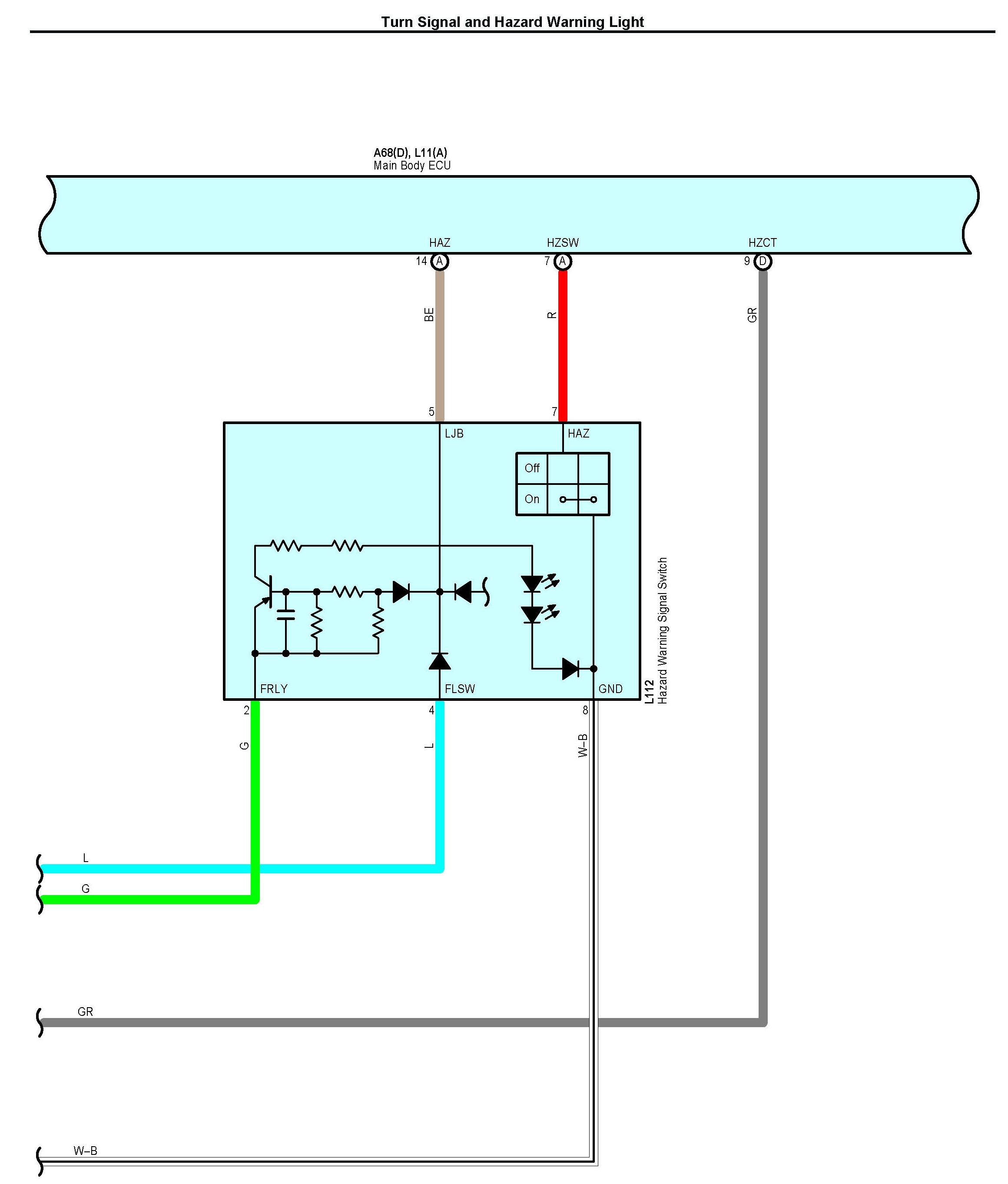

Turn Signal And Hazard Warning Light Part 1:

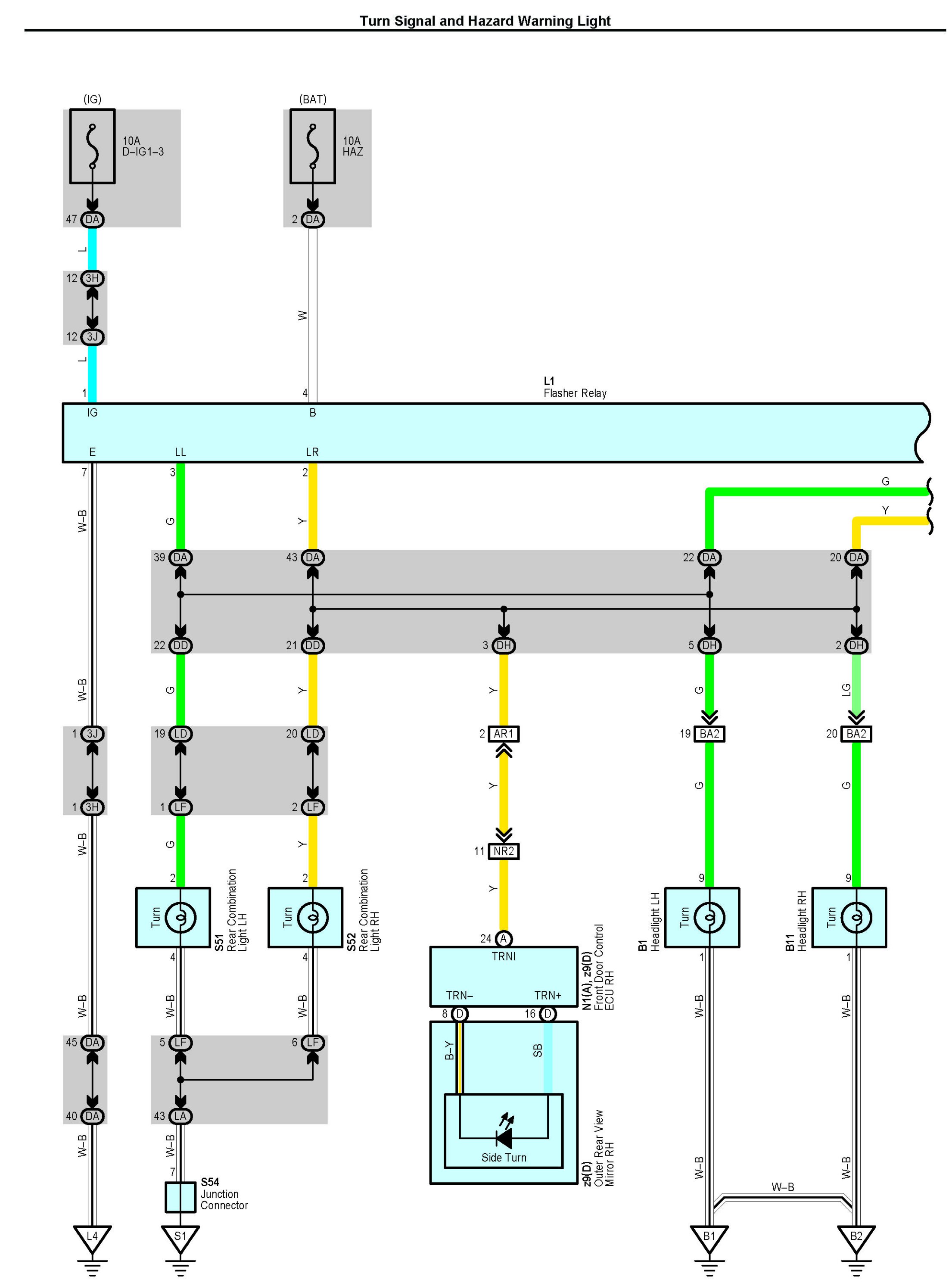

Turn Signal And Hazard Warning Light Part 2:

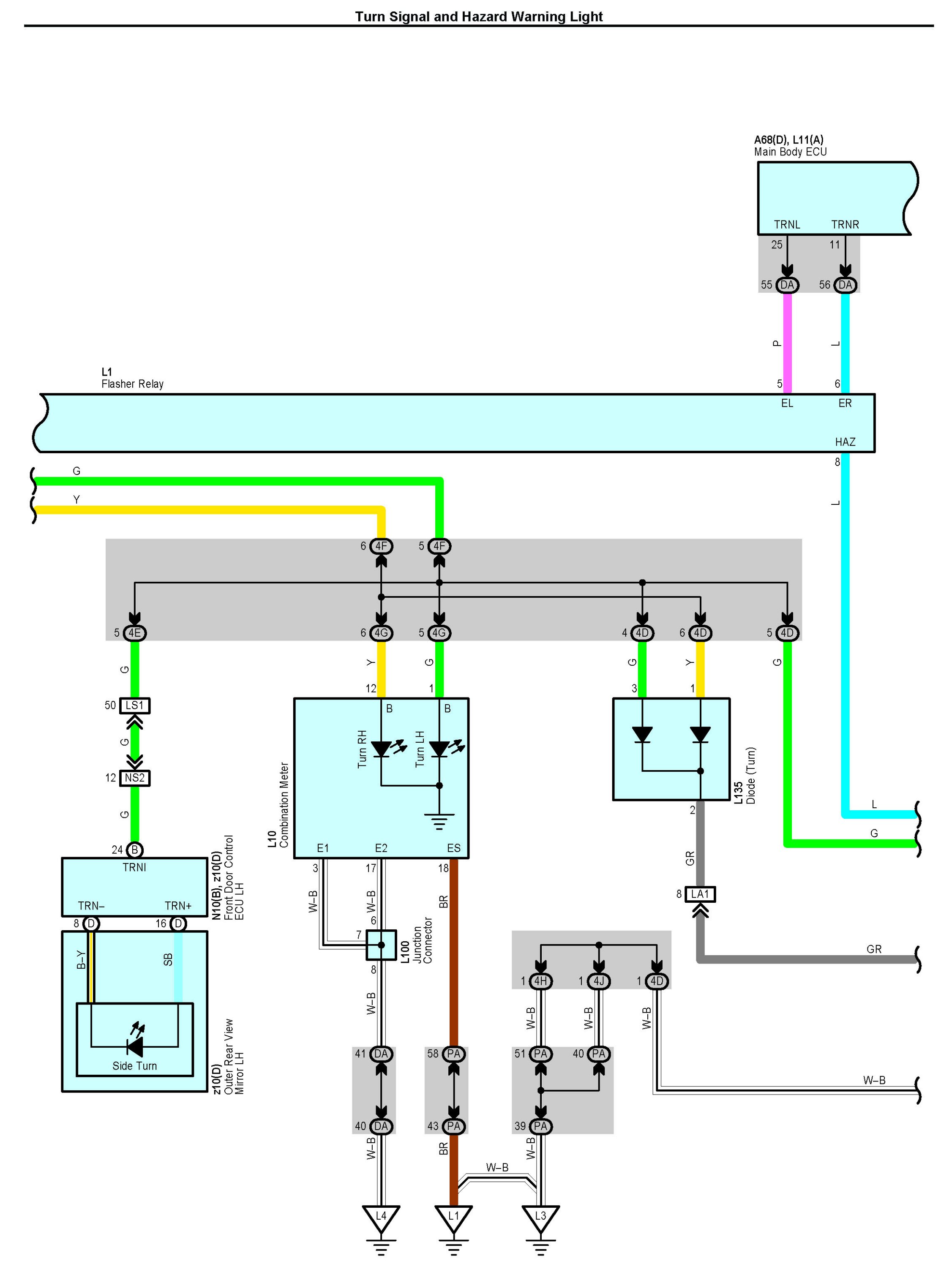

Turn Signal And Hazard Warning Light Part 3:
Turn Signal And Hazard Warning Light Part 4:

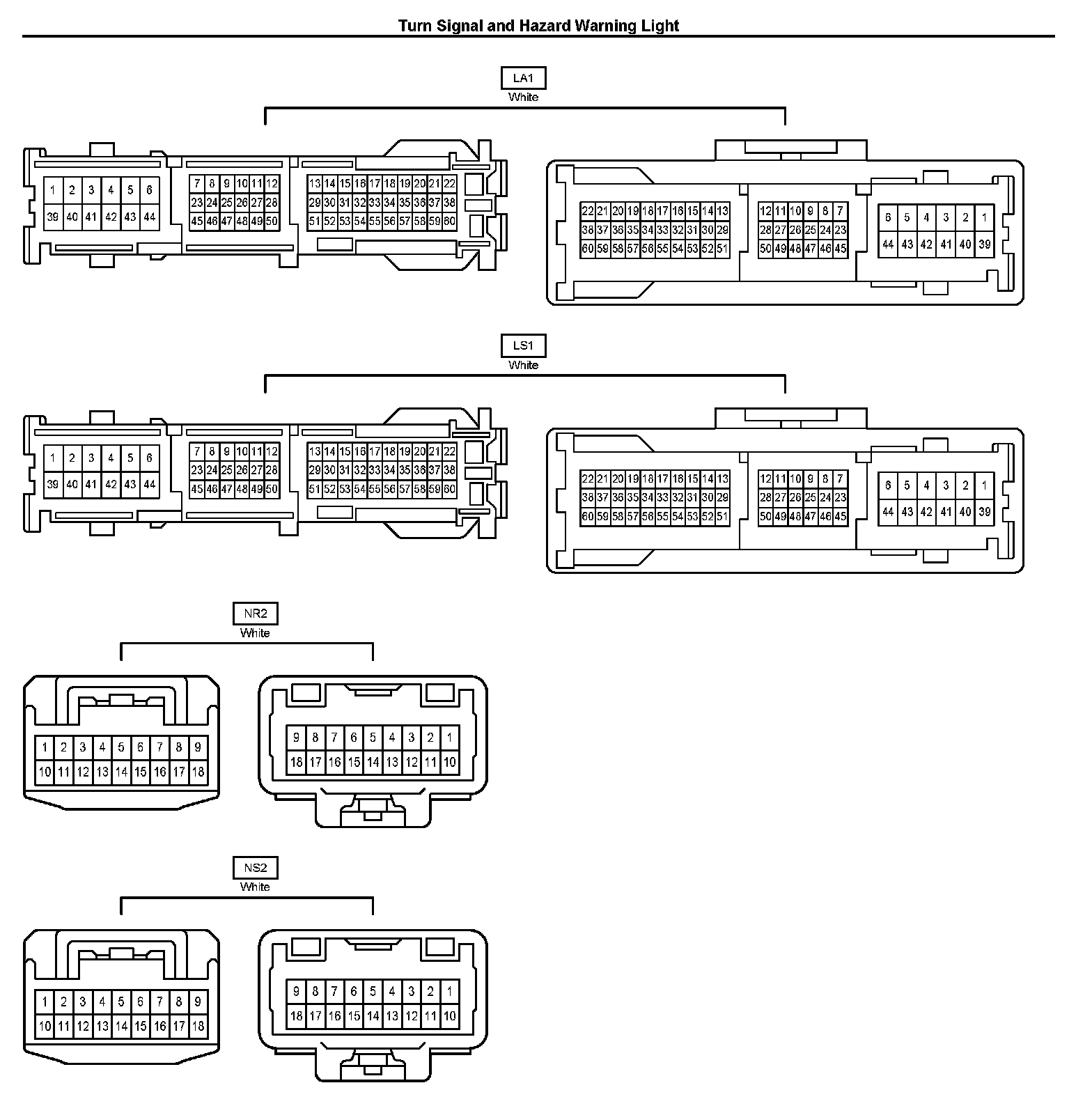

Connectors Part 1:

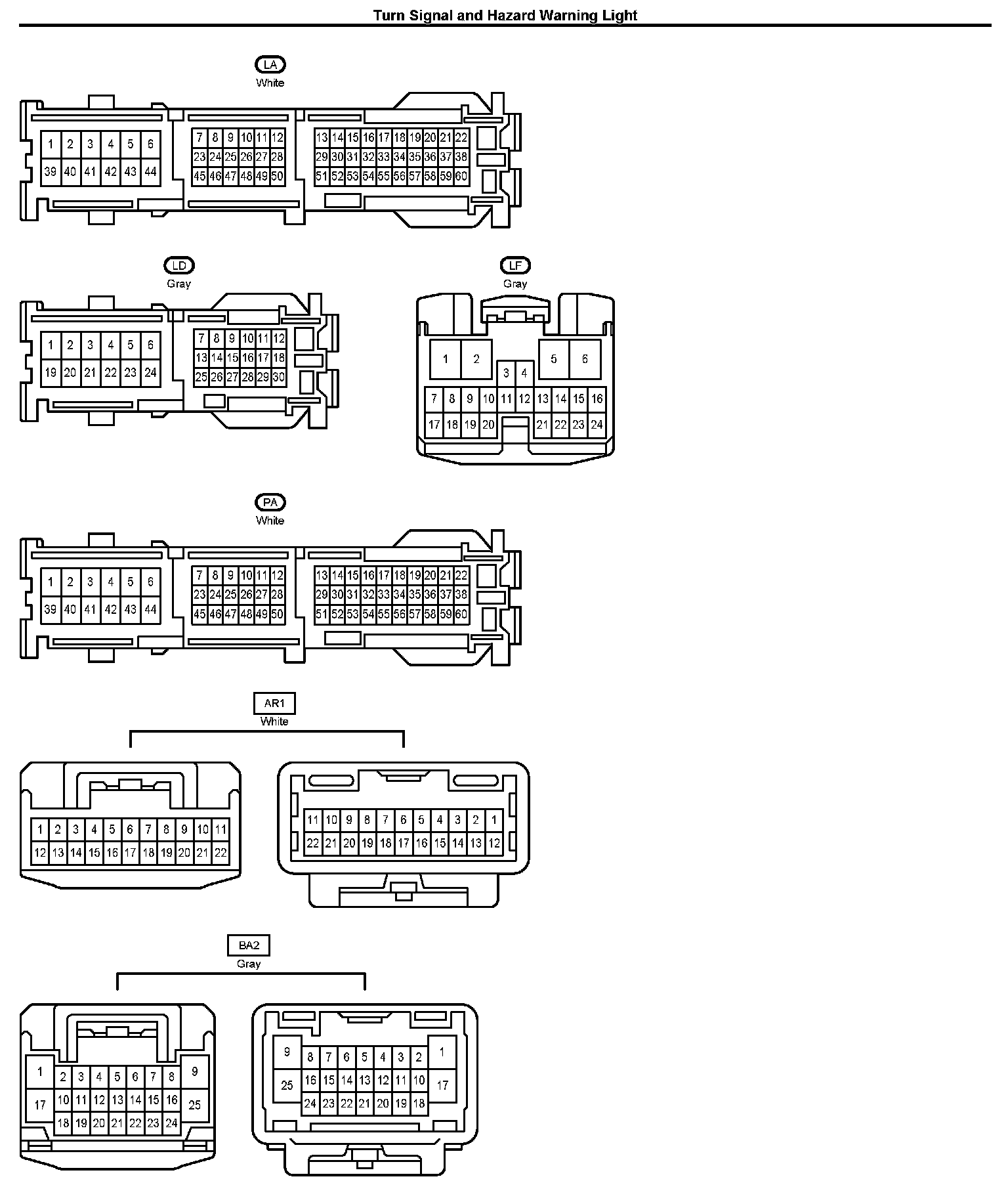

Connectors Part 2:

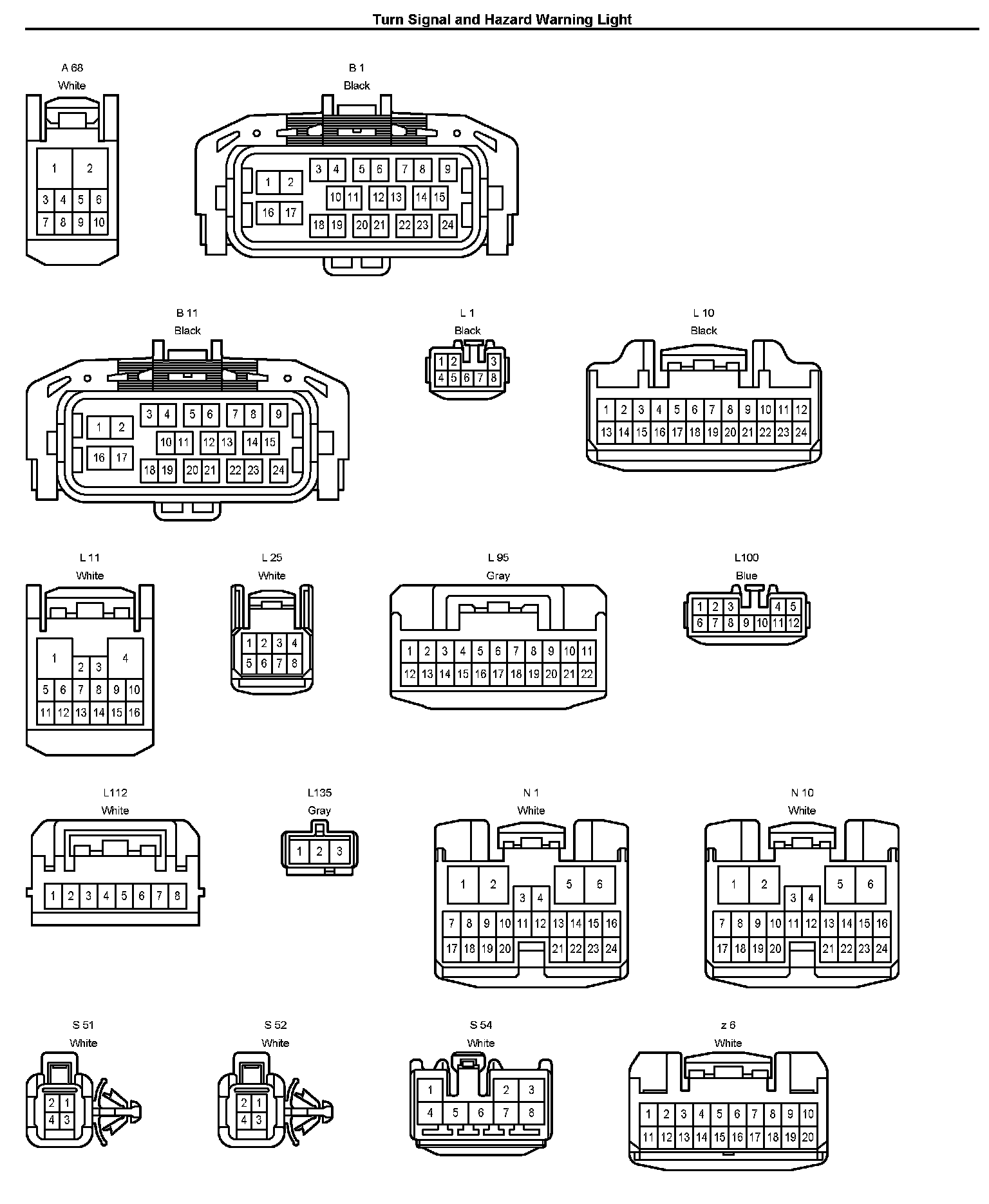

Connectors Part 3:

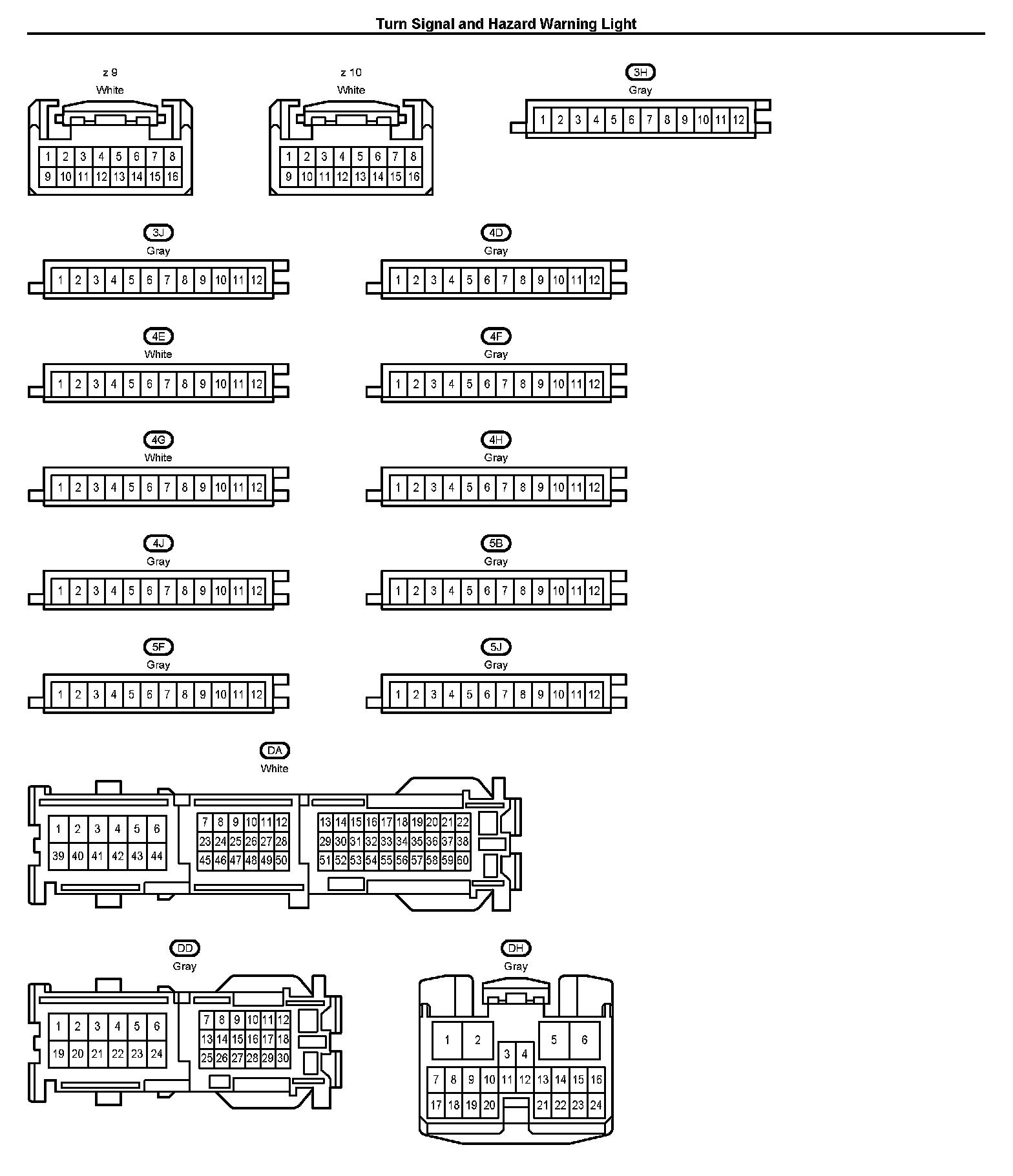

Connectors Part 4:
Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
