Electrical Diagrams

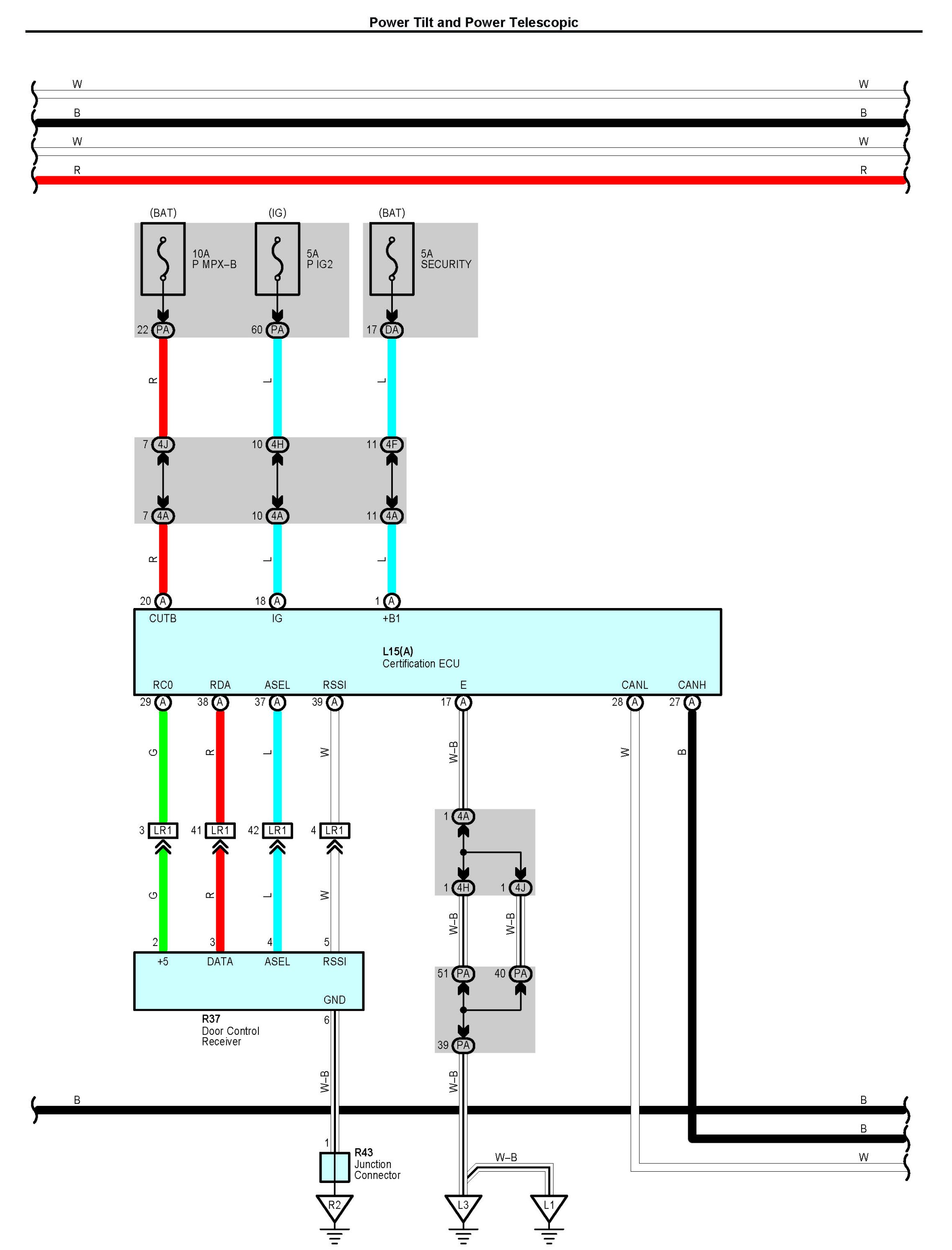

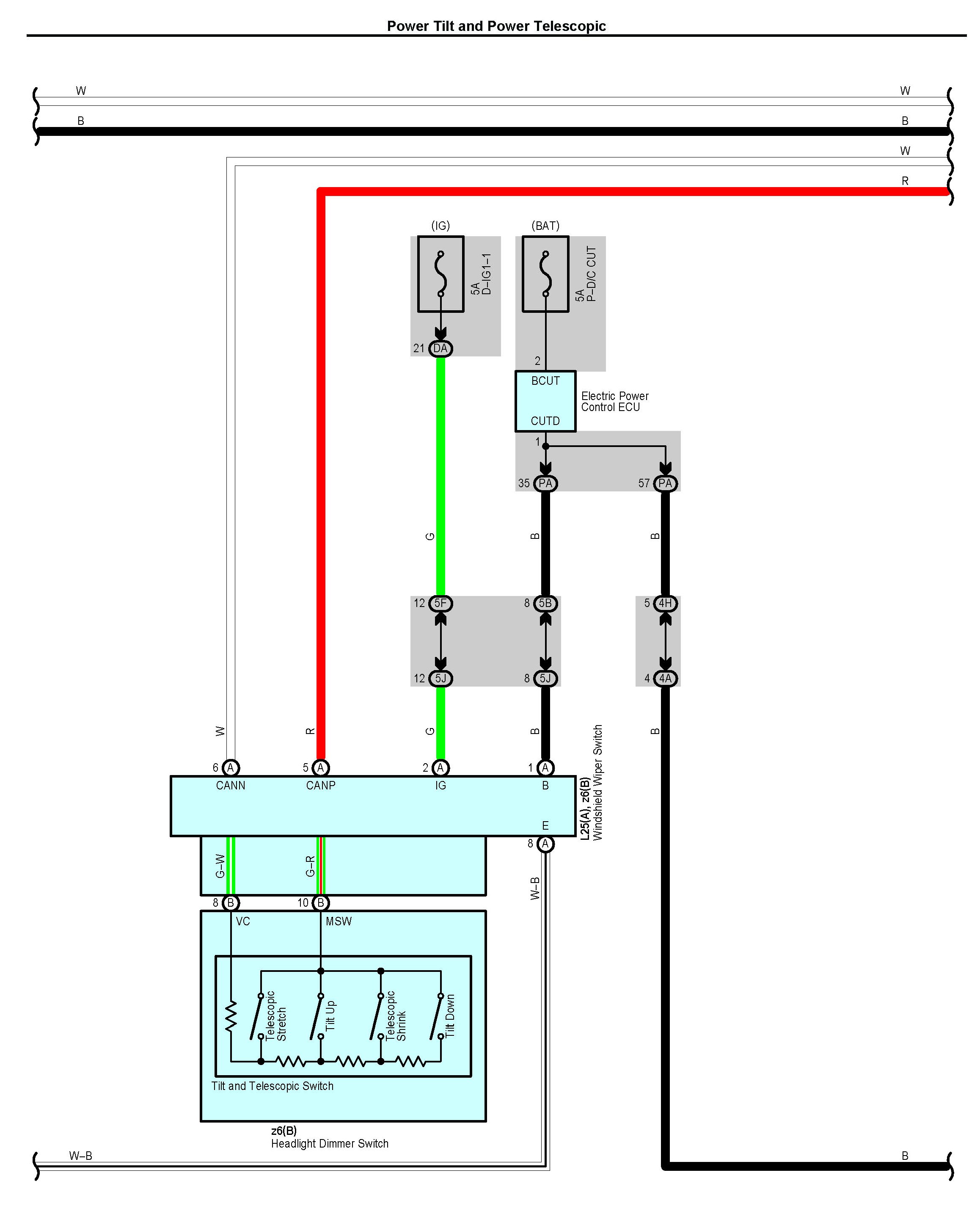

Power Tilt and Power Telescopic Part 1:

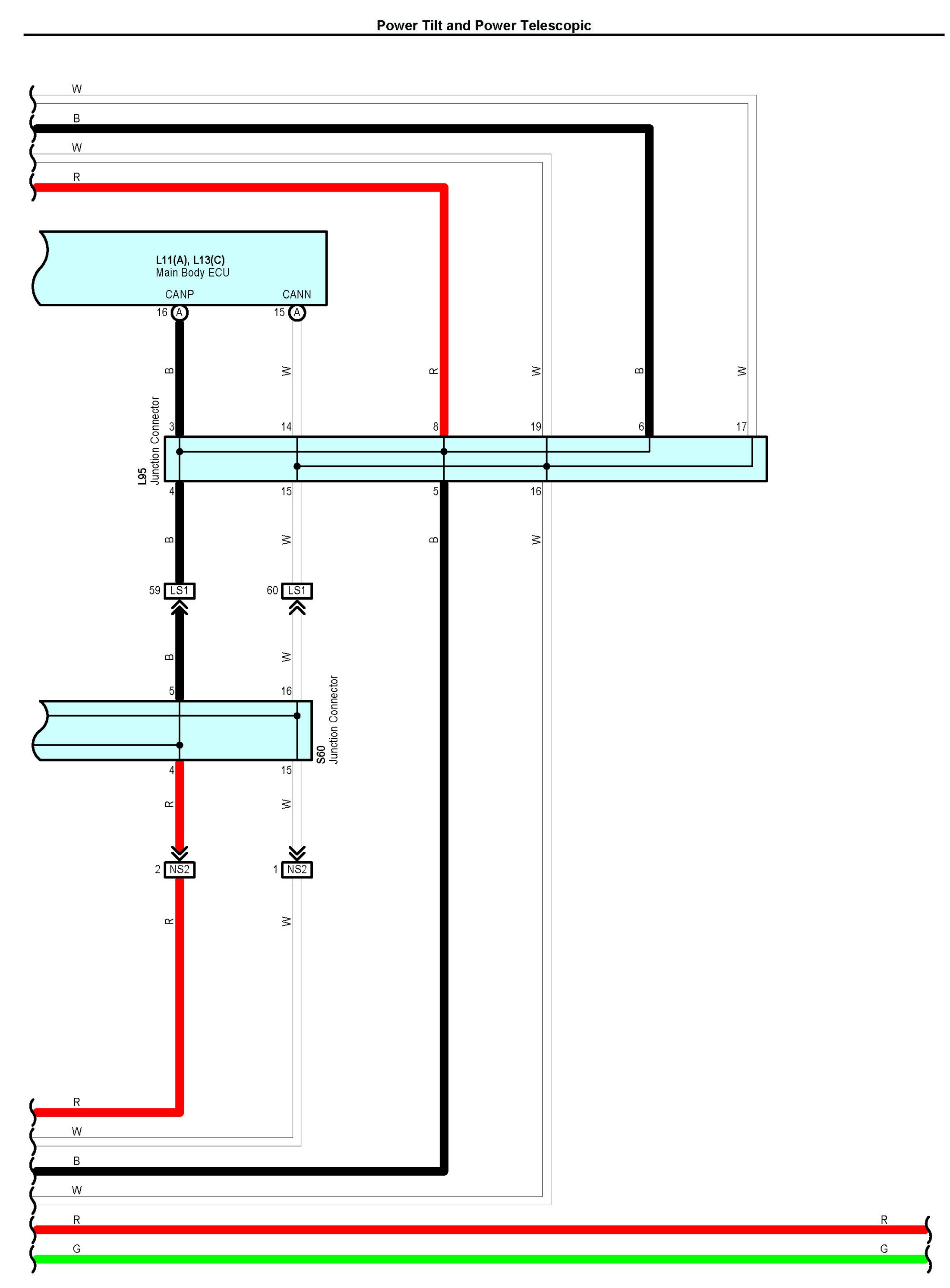

Power Tilt and Power Telescopic Part 2:

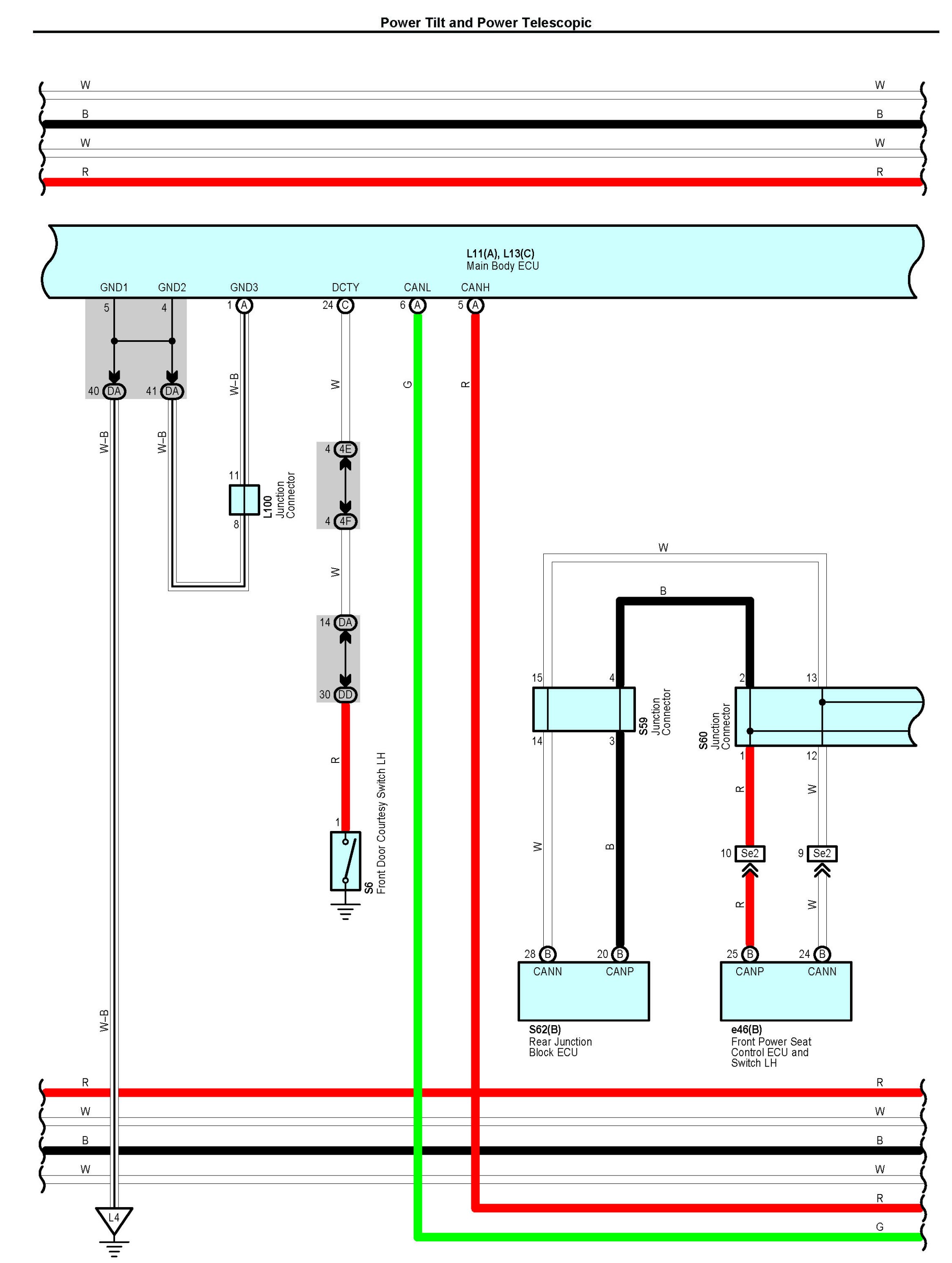

Power Tilt and Power Telescopic Part 3:

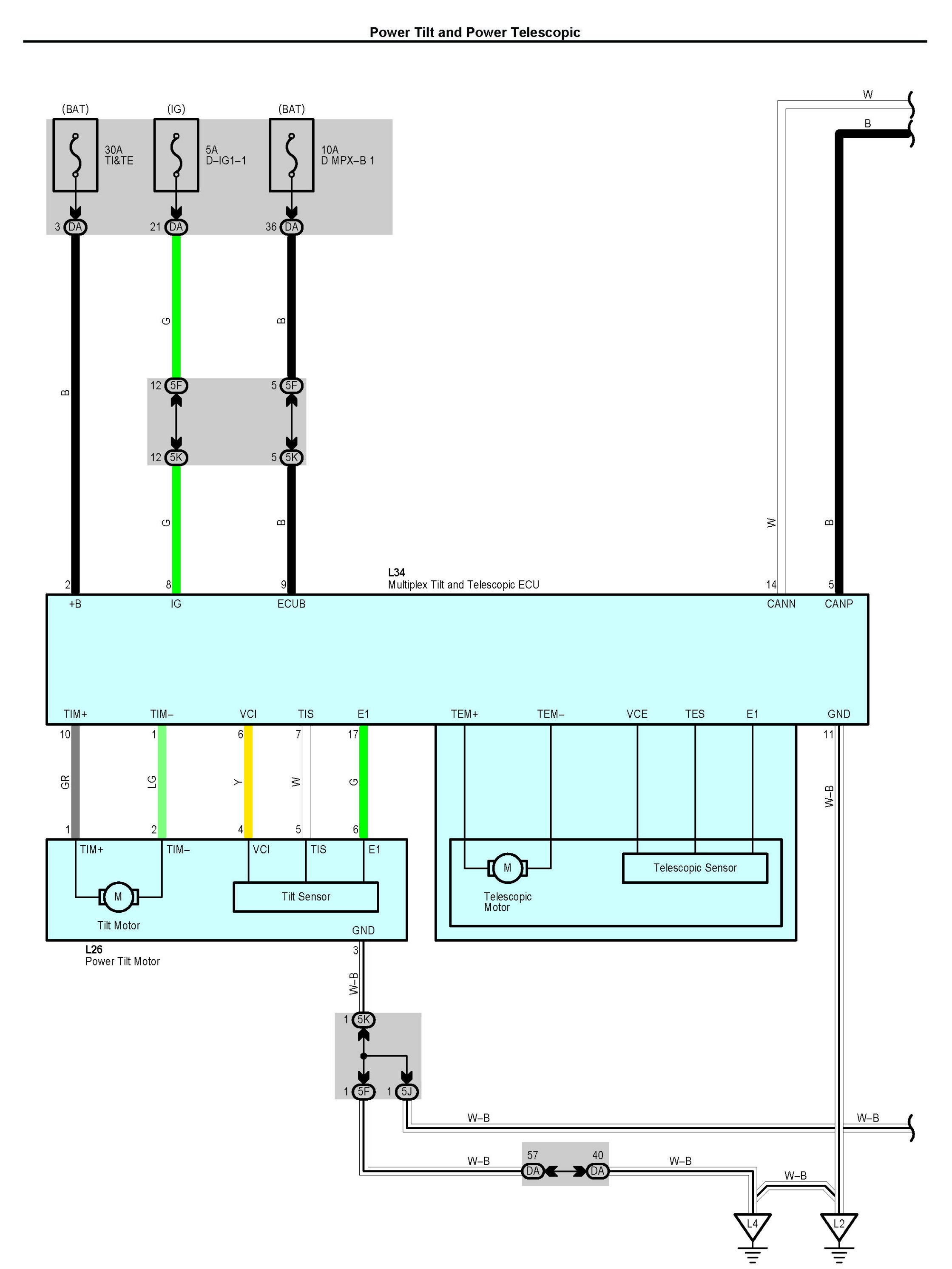

Power Tilt and Power Telescopic Part 4:

Power Tilt and Power Telescopic Part 5:

Power Tilt and Power Telescopic Part 6:

Power Tilt and Power Telescopic Part 7:

Power Tilt and Power Telescopic Part 8:

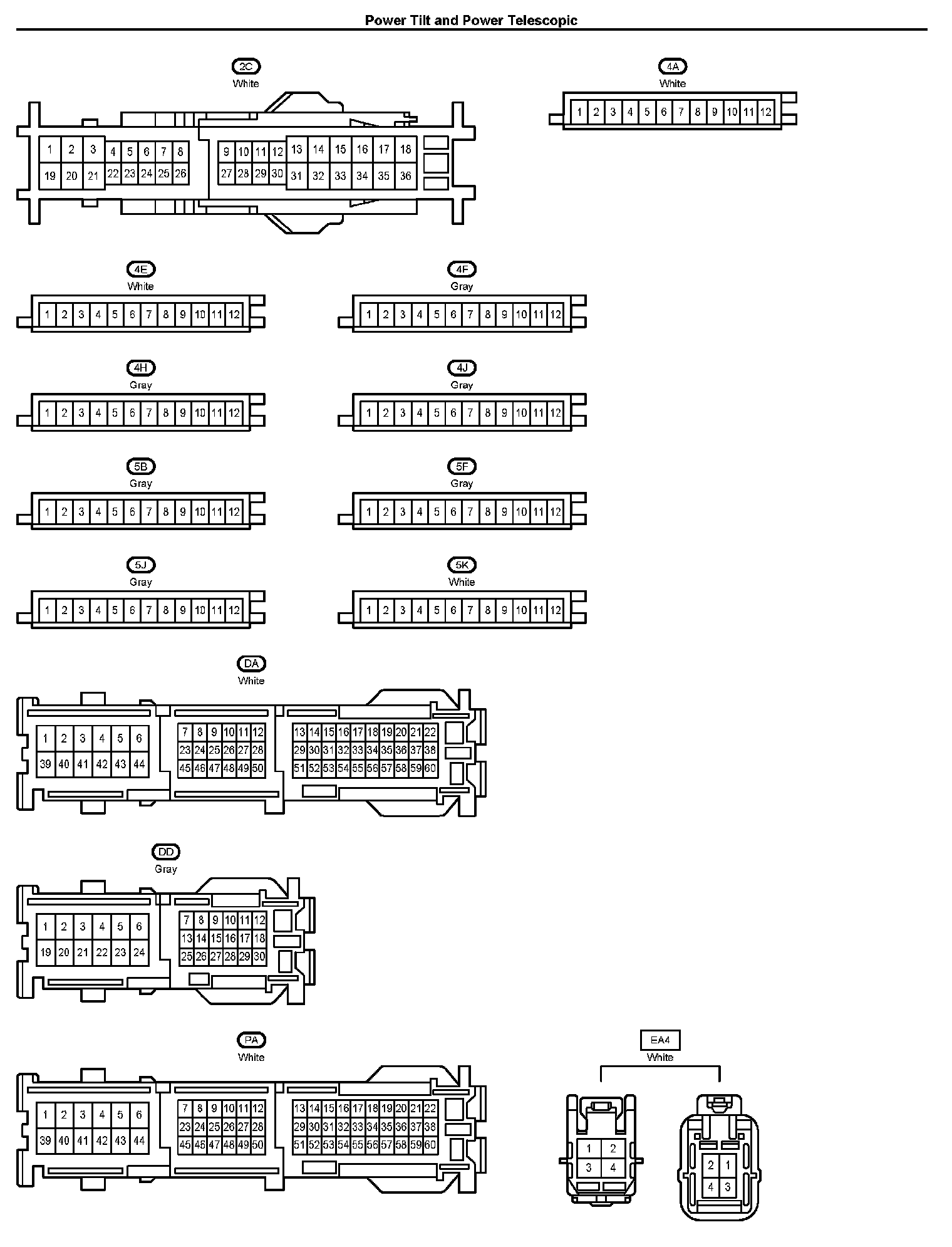

Connectors Part 1:

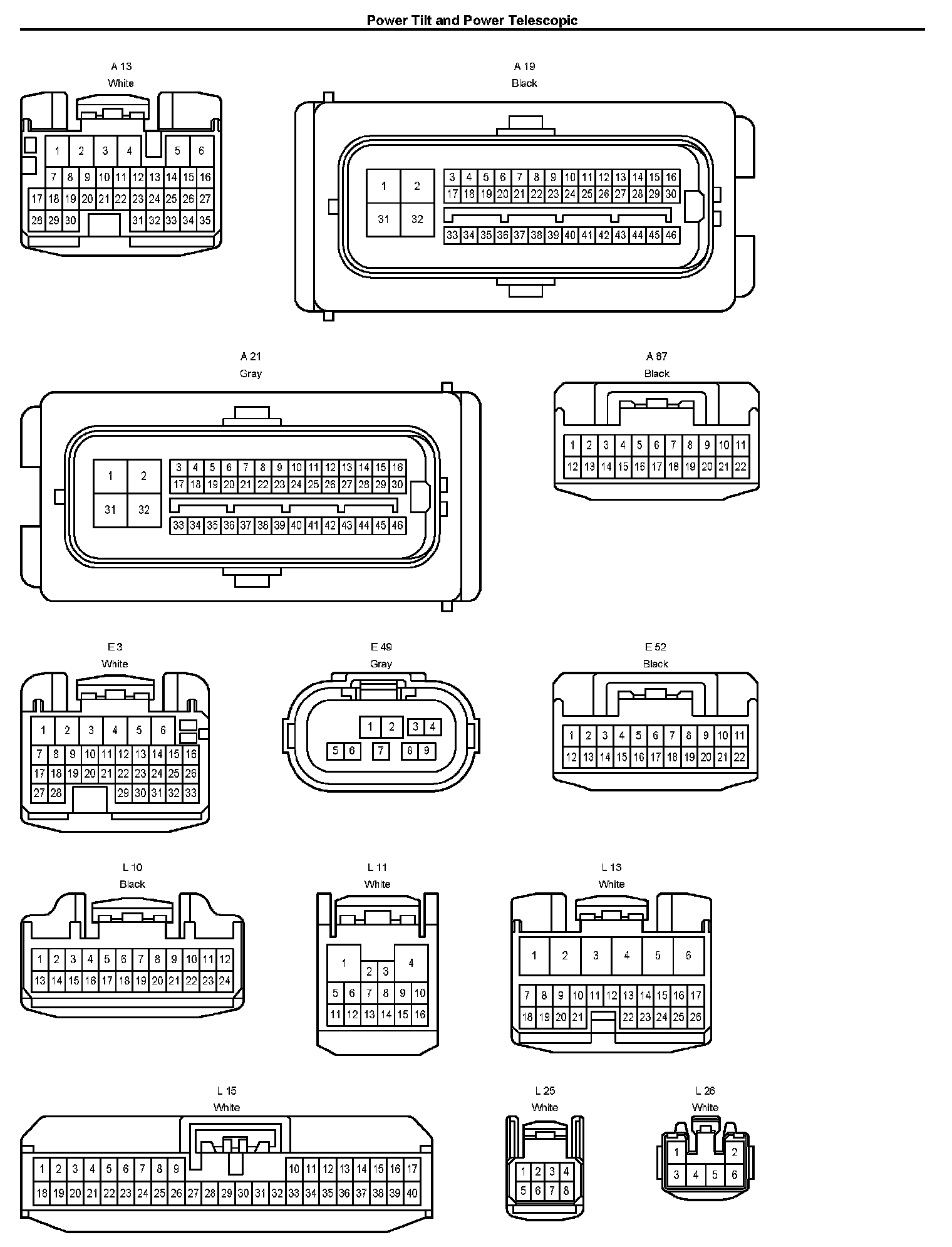

Connectors Part 2:

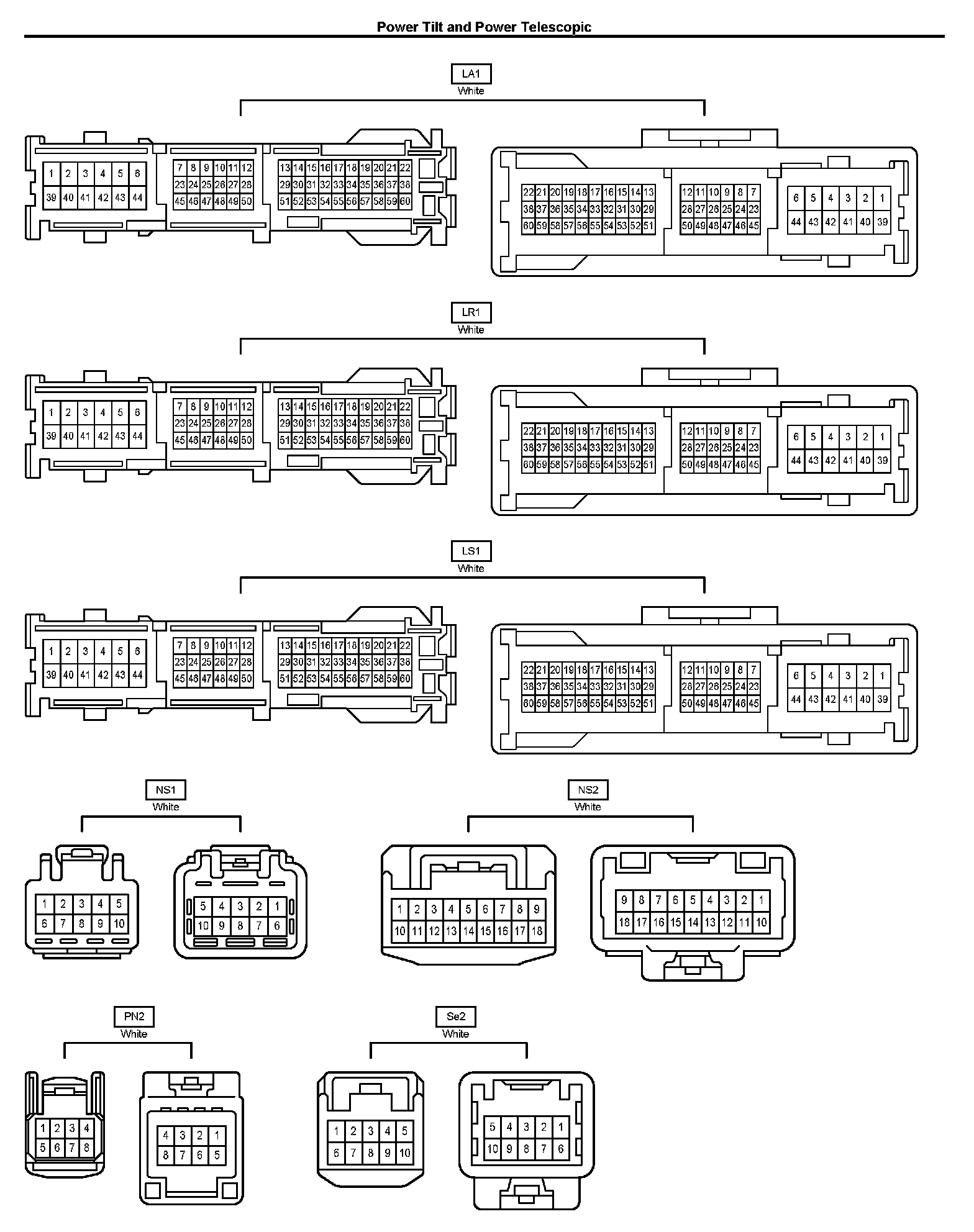

Connectors Part 3:

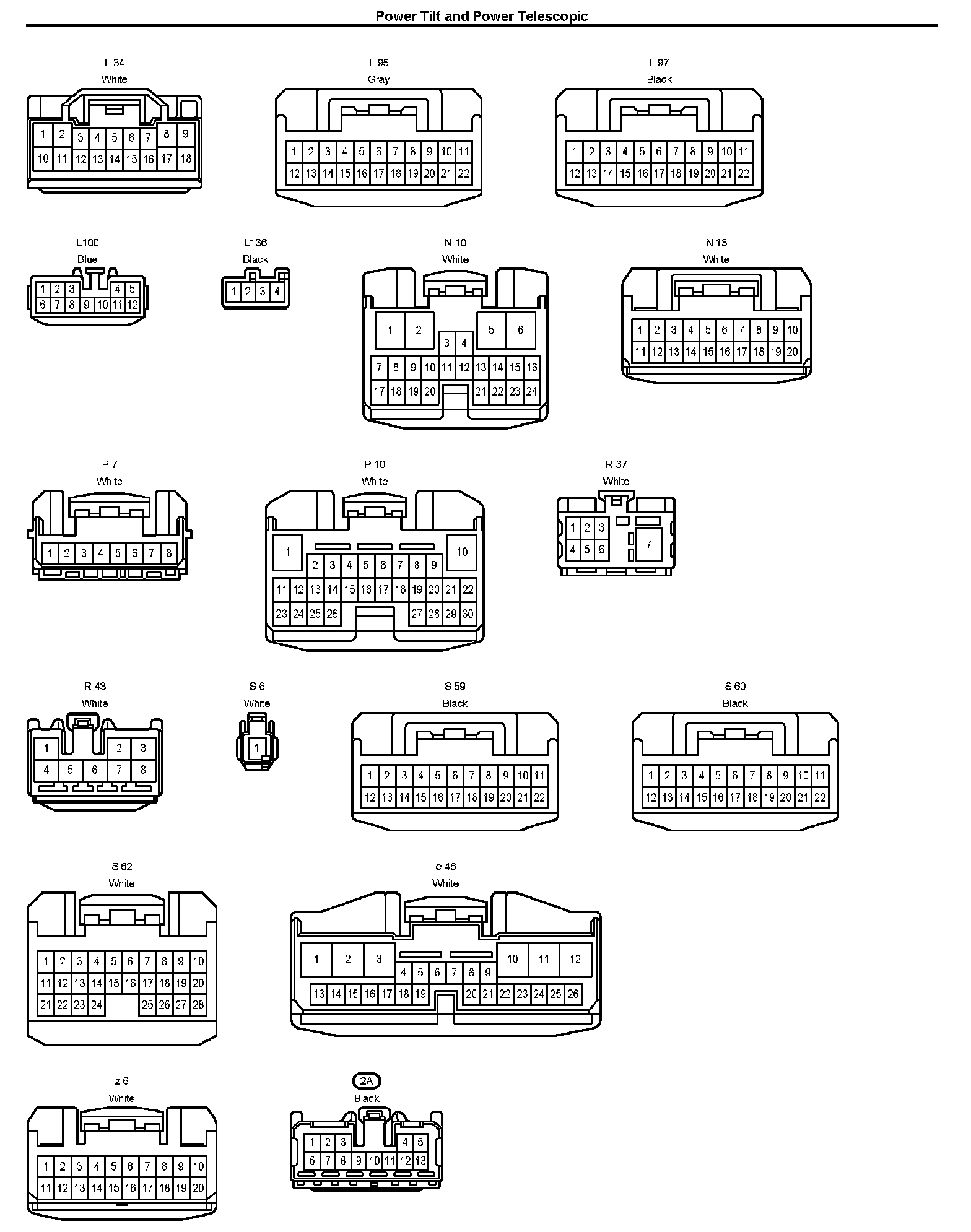

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
