Power Seat Control Module: Locations





SEAT: FRONT POWER SEAT CONTROL SYSTEM: PARTS LOCATION

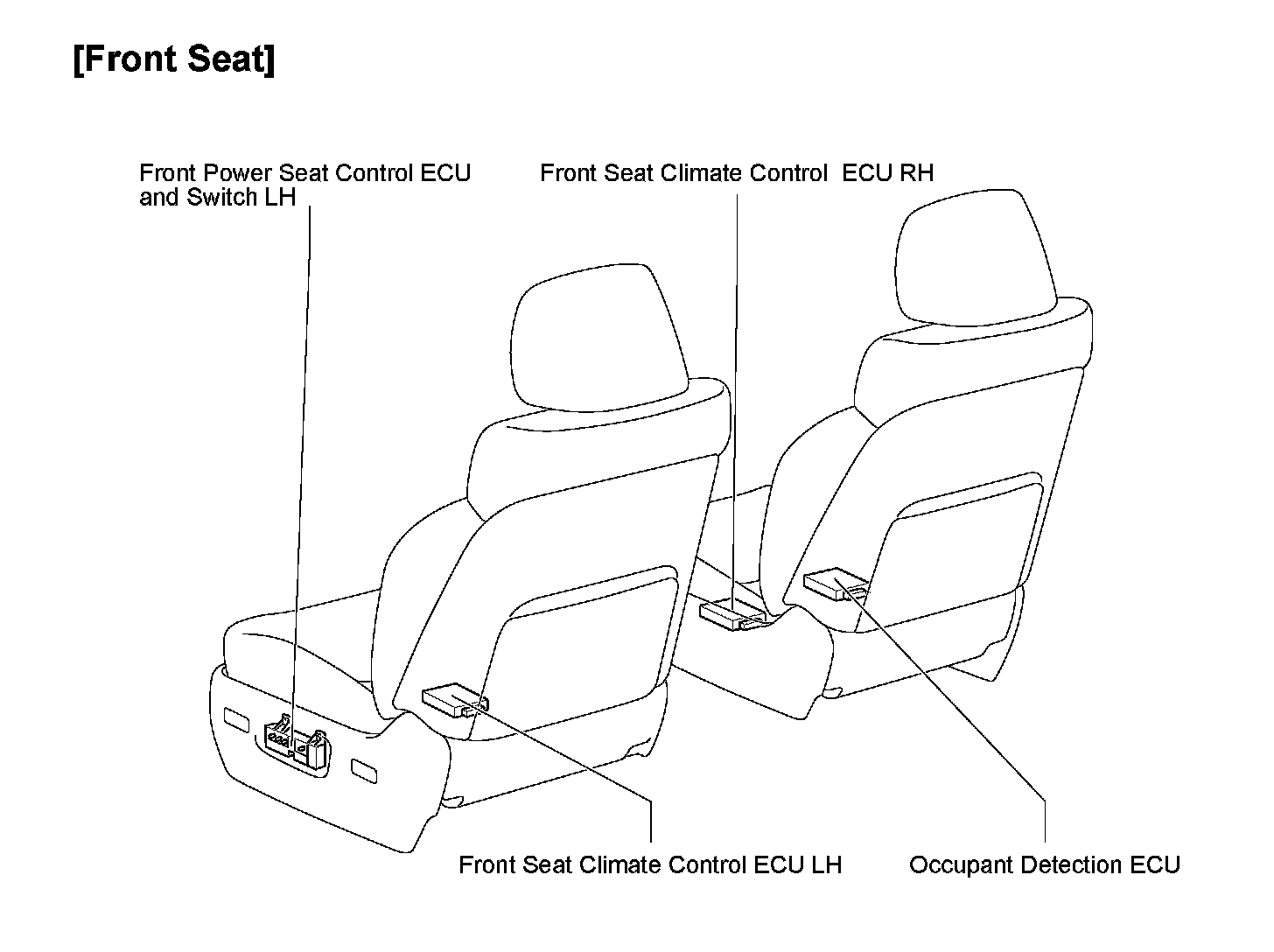

Front Seat:

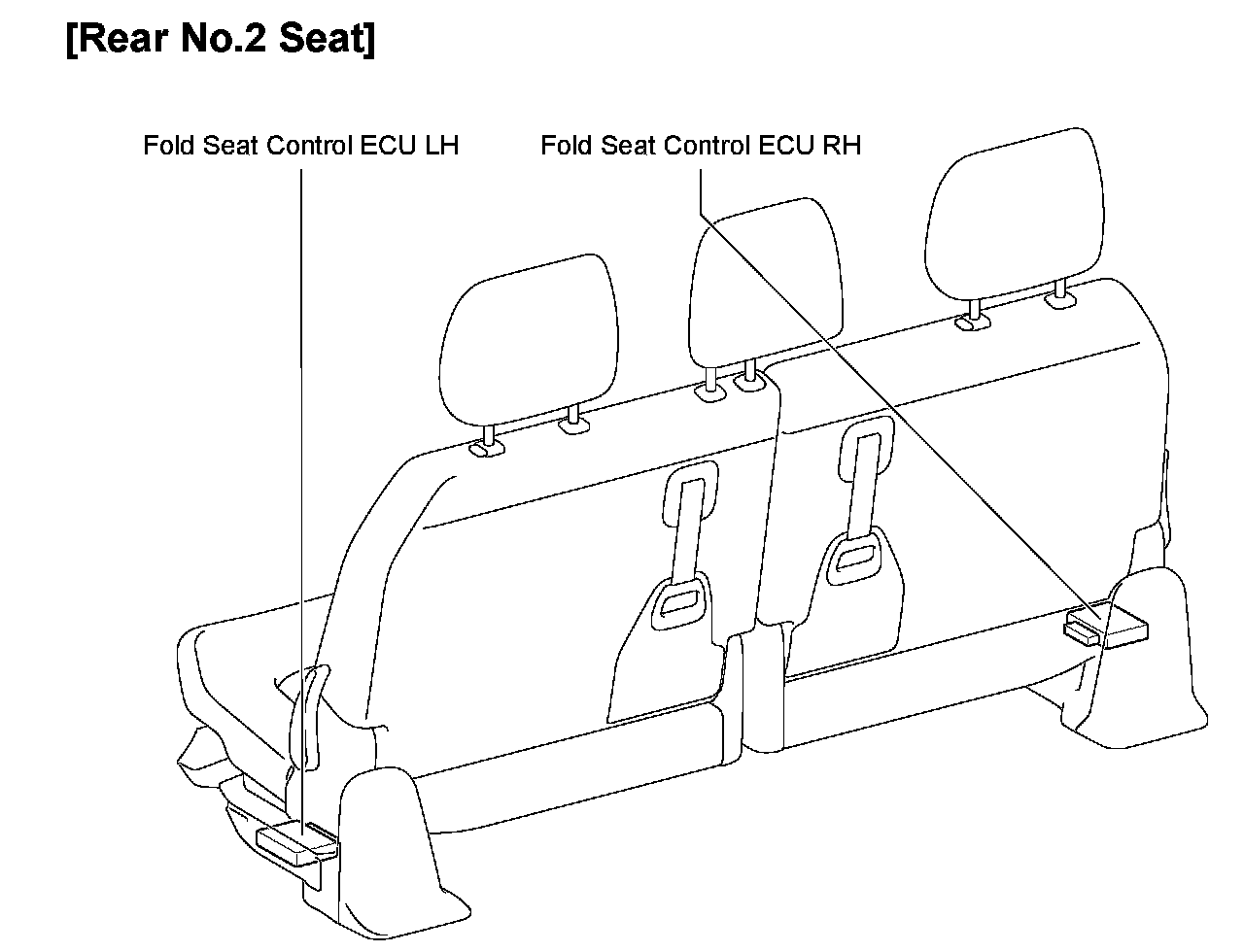

Rear No.2 Seat:
