Cruise Control Switch: Testing and Inspection

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSPECTION

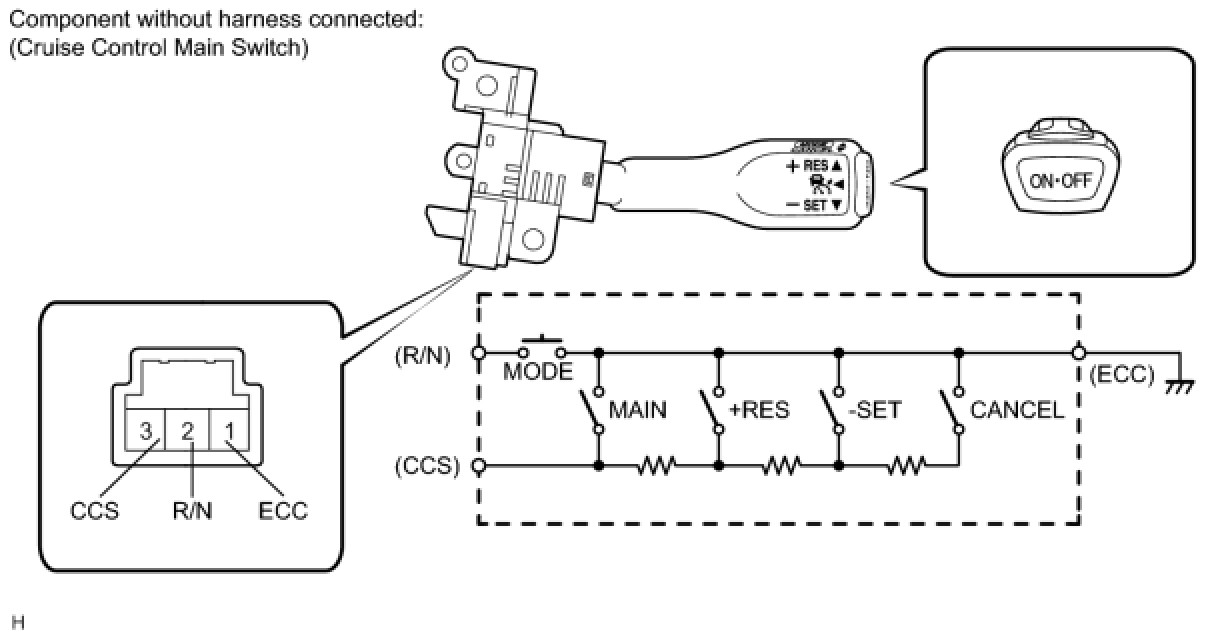

1. INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY

(a) Measure the resistance (for vehicles without vehicle-to-vehicle distance control mode).

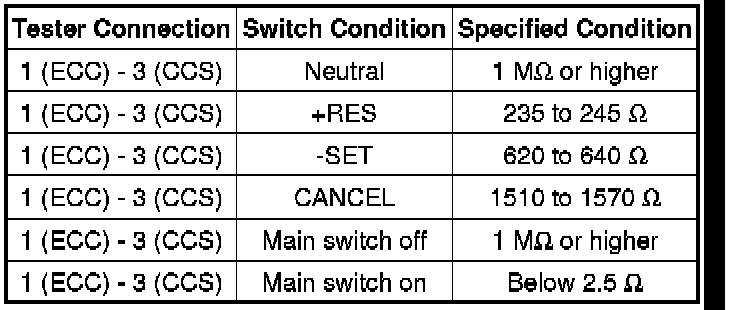

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the cruise control main switch assembly.

(b) Measure the resistance (for vehicles with vehicle-to-vehicle distance control mode).





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the cruise control main switch assembly.
