Installation
HEATING / AIR CONDITIONING: REAR AIR CONDITIONING PANEL: INSTALLATION 1.

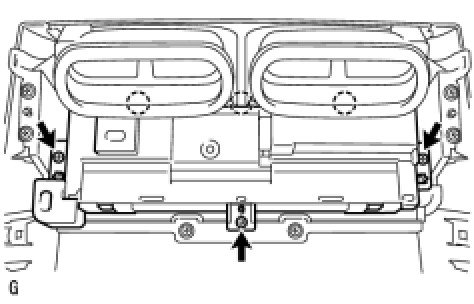

INSTALL NO. 2 AIR CONDITIONING
CONTROL ASSEMBLY (a)
Attach the 3 claws to install the air conditioning control.
(b)
Install the 3 screws.
2.
INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY
(a)
w/ Cool Box:
Install the rear console end panel
Installation.
(b)
w/o Cool Box:
Install the rear console end panel
Installation.
