Programming and Relearning

LIGHTING (EXT): LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Customize Setting.

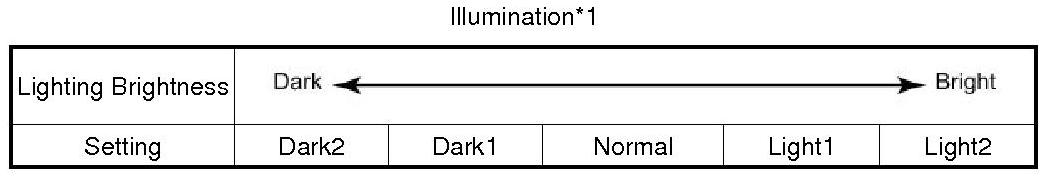

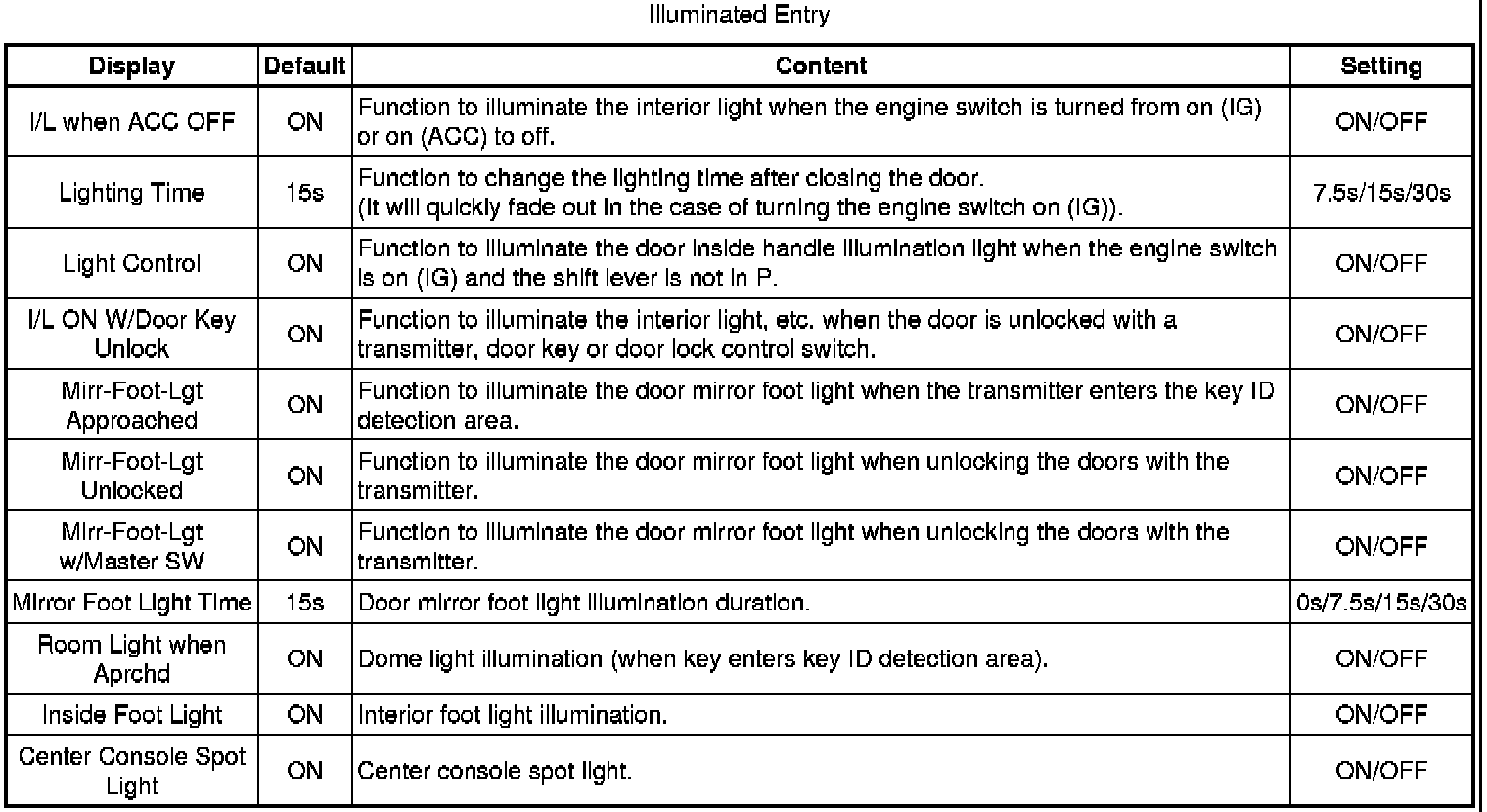

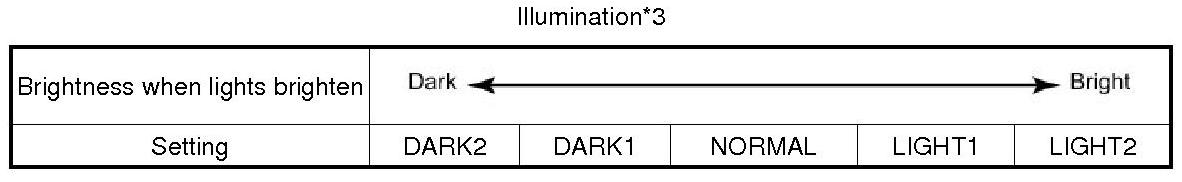

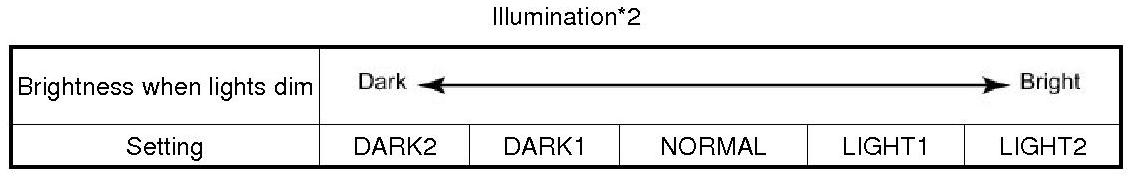

(e) Select the setting by referring to the table below.









HINT
The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle of the customer.













2. Door linked map light and personal light illumination control

Mode 1: When door is opened, map light of opened door illuminates, or personal light illuminates

Mode 2: When door is opened, all map lights and personal lights illuminate

Mode 3: Map lights and personal lights are not linked to doors

(a) To change modes, press the map light assembly DOOR and on switch simultaneously, and then turn the engine switch from off to on (IG). Each engine switch off to on (IG) operation will change the mode (Mode 1 -> Mode 2 -> Mode 3 -> Mode 1).

HINT
After changing modes, the map light responds by blinking as follows: Mode 1: once; Mode 2: twice; Mode 3: three times.
