Removal





3UR-FE ENGINE CONTROL: CAMSHAFT POSITION SENSOR: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. REMOVE ENGINE ROOM SIDE COVER RH Removal

3. REMOVE UPPER RADIATOR SUPPORT SEAL Removal

4. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

5. REMOVE AIR CLEANER HOSE ASSEMBLY Removal

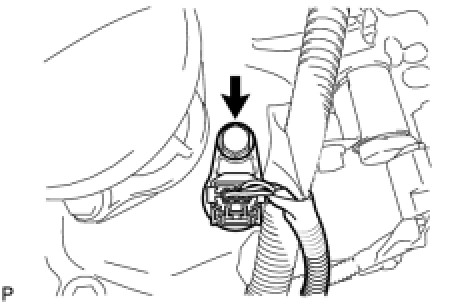

6. REMOVE CAMSHAFT POSITION SENSOR





(a) Disconnect the sensor connector.

(b) Remove the bolt and sensor.

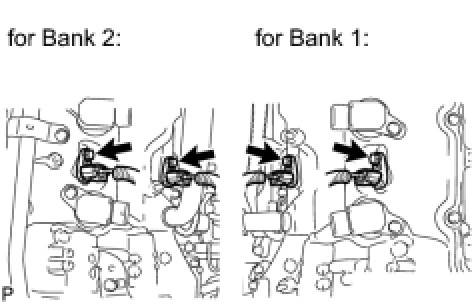

7. REMOVE VVT SENSOR

(a) Disconnect the 4 sensor connectors.





(b) Remove the 4 bolts and 4 sensors.
