Combination Meter ECU Communication Stop Mode





NETWORKING: CAN COMMUNICATION SYSTEM: Combination Meter ECU Communication Stop Mode
- Combination Meter ECU Communication Stop Mode

DESCRIPTION

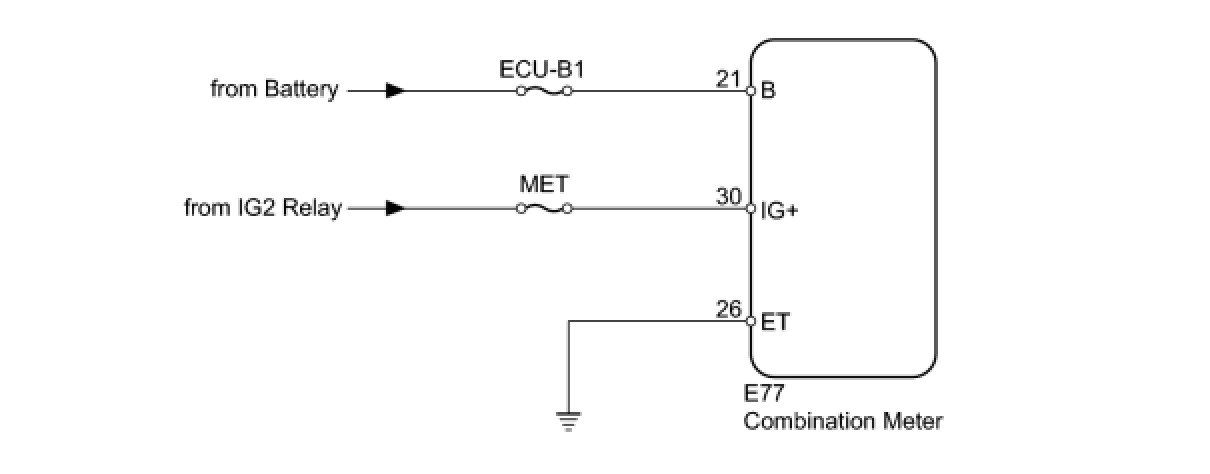

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (COMBINATION METER - BATTERY AND BODY GROUND)

(a) Disconnect the E77 combination meter connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

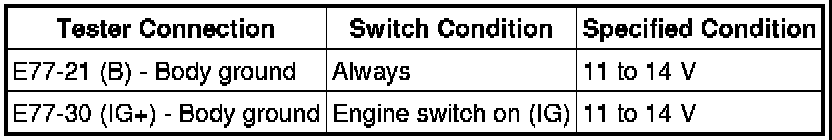

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

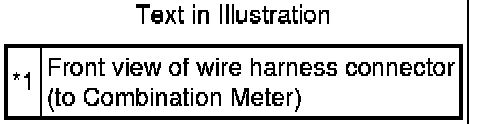

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE COMBINATION METER ASSEMBLY Removal
