Installation

3UR-FE STARTING: ENGINE SWITCH: INSTALLATION

1. INSTALL ENGINE SWITCH

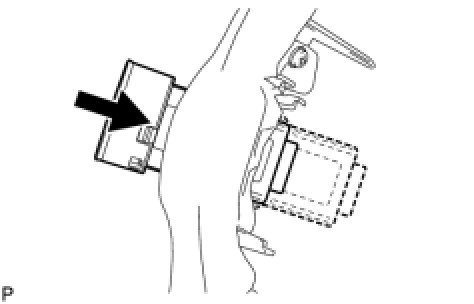

(a) Attach the 2 claws to install the switch.

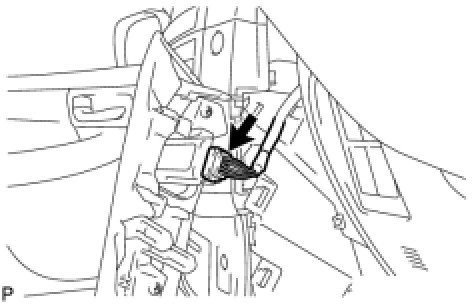

(b) Connect the switch connector.

2. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
