Removal





3UR-FE STARTING: ENGINE SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System:
* After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
2. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Removal

3. REMOVE ENGINE SWITCH

(a) Disconnect the switch connector.

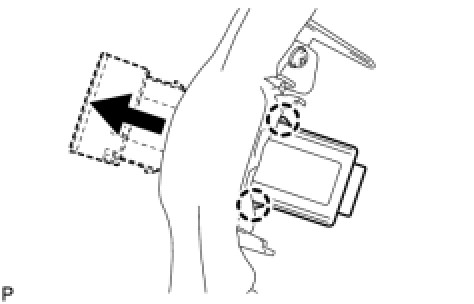

(b) Detach the 2 claws and remove the switch.
