Removal
WINDOW / GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: REMOVAL 1.
REMOVE FRONT DOOR ARMREST BASE PANEL ASSEMBLY RH
(a)
Using a moulding remover, detach the 5 claws.
(b)
Disconnect the 2 connectors and remove the armrest base panel.
2.

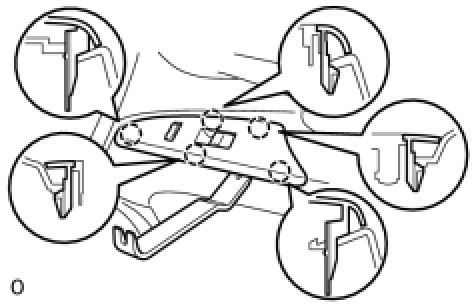

REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY
(a)
Detach the 2 claws and remove the regulator switch.
