Installation
WINDOW / GLASS: POWER WINDOW MASTER SWITCH: INSTALLATION 1.

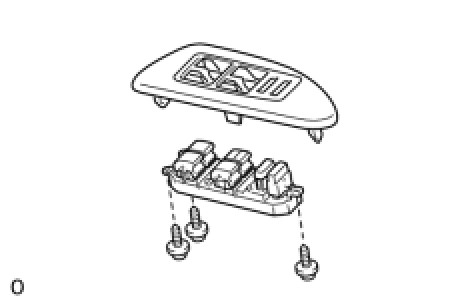

INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
(a)
Install the master switch with the 3 screws.
2.

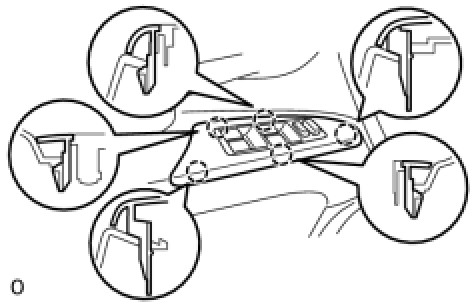

INSTALL FRONT UPPER ARMREST BASE PANEL LH
(a)
Connect the connector.
(b)
Attach the 5 claws to install the armrest base panel.
