Removal
WINDOW / GLASS: POWER WINDOW MASTER SWITCH: REMOVAL 1.
REMOVE FRONT UPPER ARMREST BASE PANEL LH
(a)

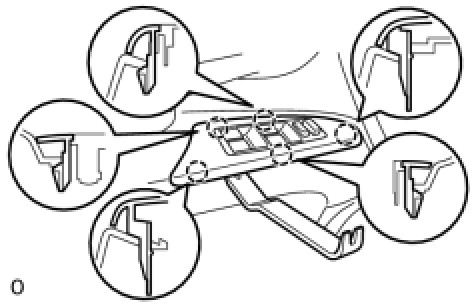

Using a moulding remover, detach the 5 claws.
(b)
Disconnect the connector and remove the armrest base panel.
2.
REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
(a)
Remove the 3 screws and master switch.
