Installation





WINDOW / GLASS: REAR POWER WINDOW SWITCH: INSTALLATION

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.
1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Attach the 2 claws to install the regulator switch.





2. INSTALL REAR UPPER DOOR ARMREST BASE PANEL LH

(a) Connect the connector.

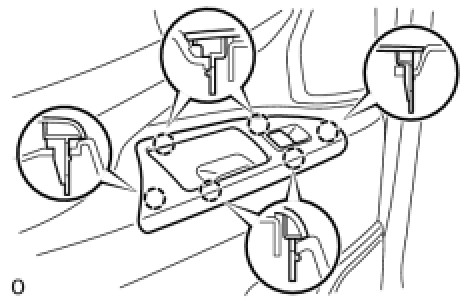

(b) Attach the 6 claws to install the armrest base panel.
