Cylinder Head Assembly

Cylinder head bolts





Standard diameter 10.85 to 11.00 mm (0.4272 to 0.4330 in.)
Minimum diameter 10.70 mm (0.4212 in.)
Measurement point (distance from the seat) 103 mm (4.06 in.)

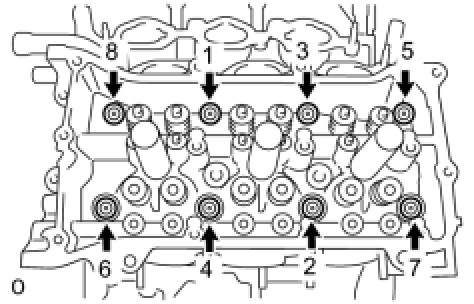

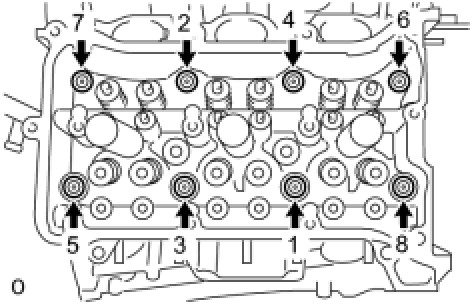

1st 36 Nm (367 kgf-cm, 27 ft lb)
2nd Turn 90°
3nd Turn 90°

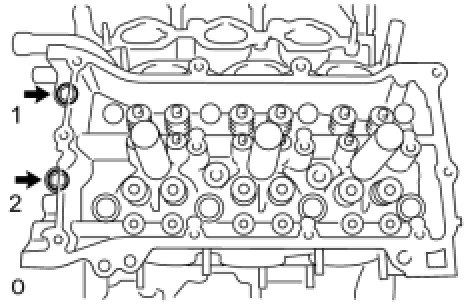

14 mm (0.55 in.) head 30 Nm (306 kgf-cm, 22 ft lb)





Warpage
Cylinder head lower
Standard 0.05 mm (0.00197 in.)
Maximum 0.10 mm (0.00394 in.)
Intake
Standard 0.08 mm (0.00315 in.)
Maximum 0.10 mm (0.00394 in.)
Exhaust
Standard 0.08 mm (0.00315 in.)
Maximum 0.10 mm (0.00394 in.)

Camshaft housing

LH:

RH:

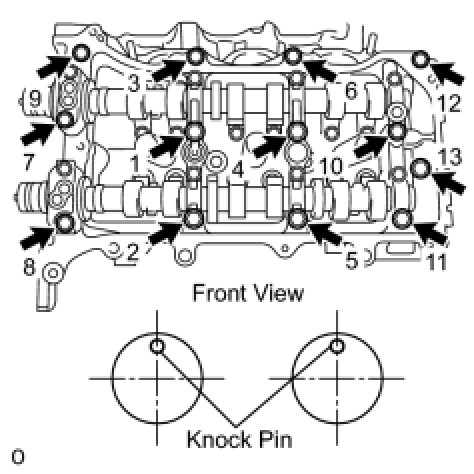

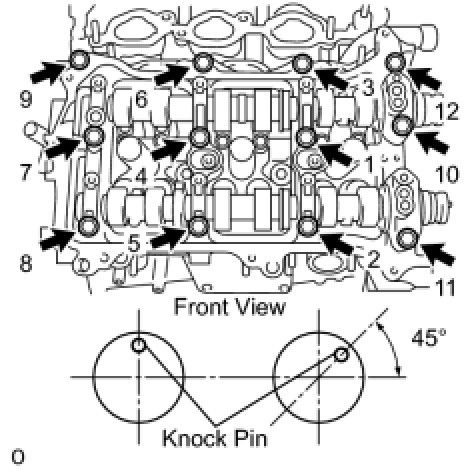

Torque 28 Nm (286 kgf-cm, 21 ft-lbf)

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gears Specifications
