Torque Specifications
SPECIFICATIONS: MF1A TRANSFER / 4WD / AWD: TORQUE SPECIFICATIONS

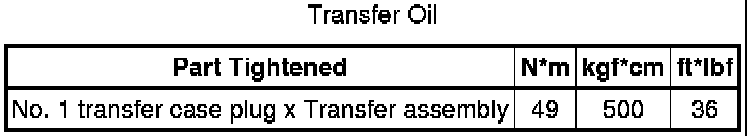

Transfer Oil
Transfer Case

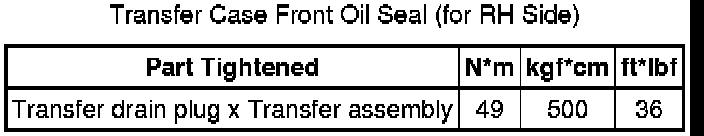

Front Oil Seal (for RH Side)

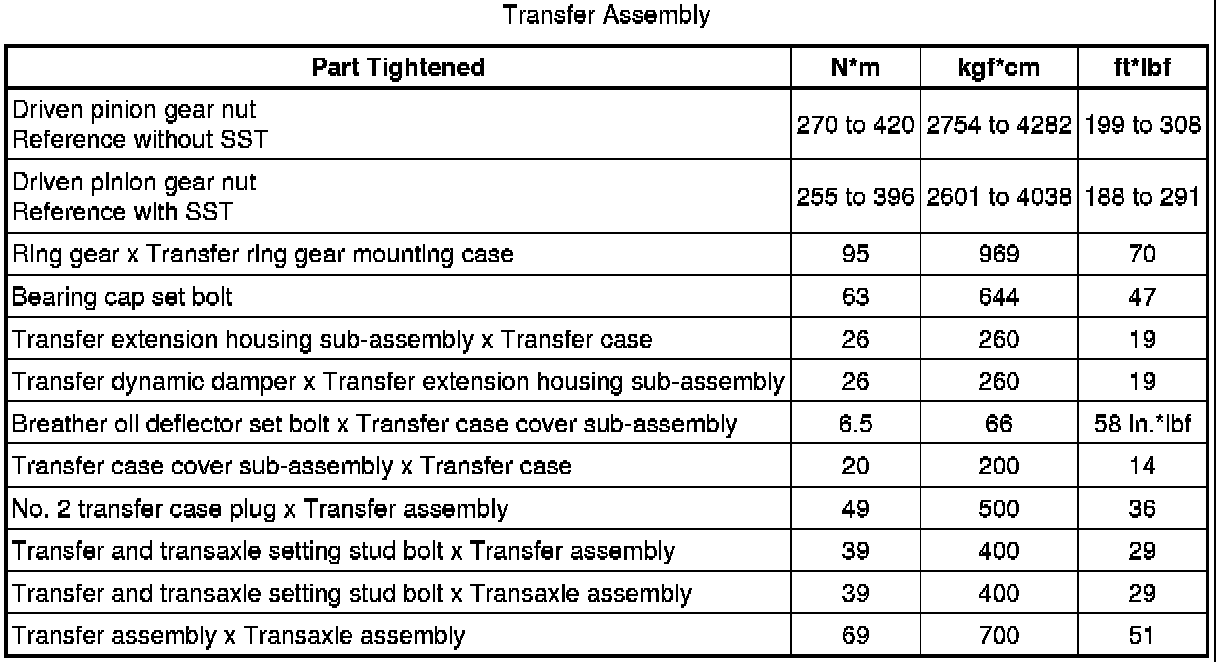

Transfer Assembly

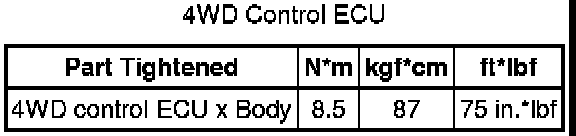

4WD Control ECU
