Vehicle Identification and Serial Numbers

INTRODUCTION: IDENTIFICATION INFORMATION: VEHICLE IDENTIFICATION AND SERIAL NUMBERS

1. VEHICLE IDENTIFICATION NUMBER

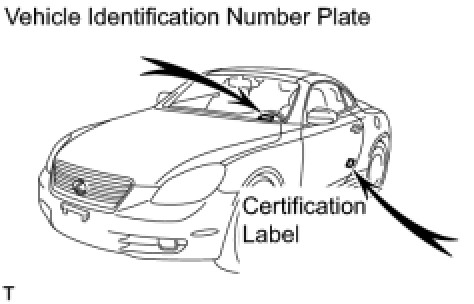

(a) The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustration.

(1) Vehicle Identification Number Plate

(2) Certification Label

2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

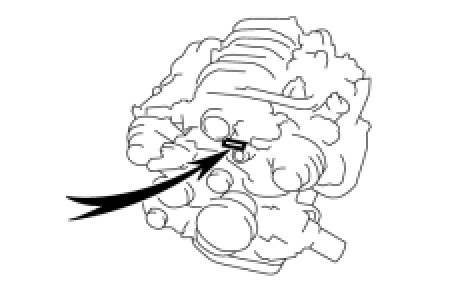

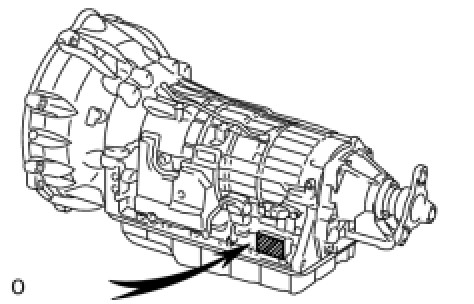

(a) The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.

(1) Engine Serial Number





(2) Transmission Serial Number
