Disassembly
MIRROR: OUTER REAR VIEW MIRROR: DISASSEMBLY 1.
REMOVE OUTER MIRROR LH
(a)

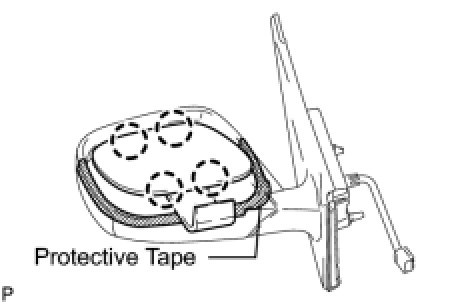

Using a moulding remover, detach the 4 claws.
HINT Apply protective tape to the mirror body. (b)

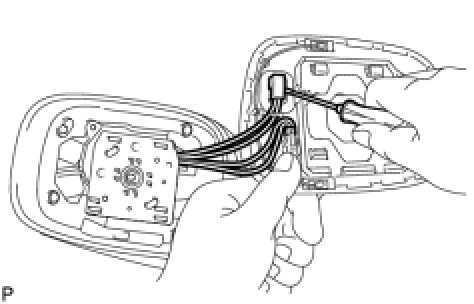

Using a screwdriver, disconnect the 2 connectors and remove the mirror.
2.
REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH
Removal
