Pinout Values and Diagnostic Parameters
CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM 1.
CHECK ECM
(a)

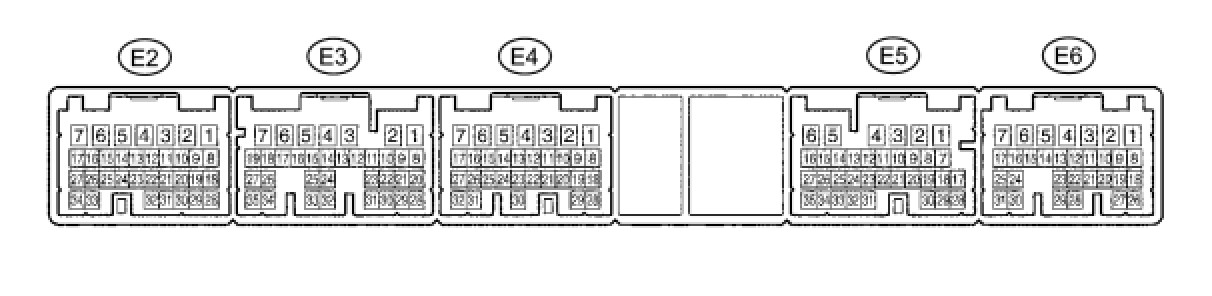

Measure the voltage of the connectors.
*
If the result is not as specified, the ECM may have a malfunction.
(b)

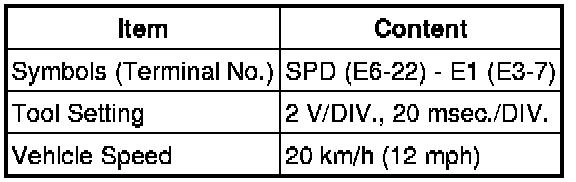

Inspect using an oscilloscope.
HINT The wavelength becomes shorter as vehicle speed increases.
