Reassembly
AIR CONDITIONING: CONDENSER: REASSEMBLY 1.
INSTALL COOLER DRYER
(a)
Using needle nose pliers, install the cooler dryer.
(b)

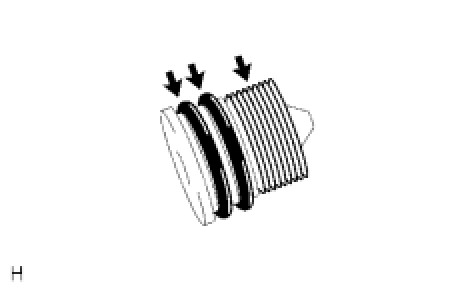

Install 2 new O-rings to the cap.
(c)
Sufficiently apply compressor oil to the contact surfaces of the O-ring and the cap.
Compressor oil: ND-OIL 8 or equivalent (d)
Using a 10 mm hexagon wrench, install the cap to the condenser.
Torque : 12.3 Nm (125 kgf-cm, 9 ft-lbf)
