Emission Control Systems: Description and Operation
3UZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM 1.

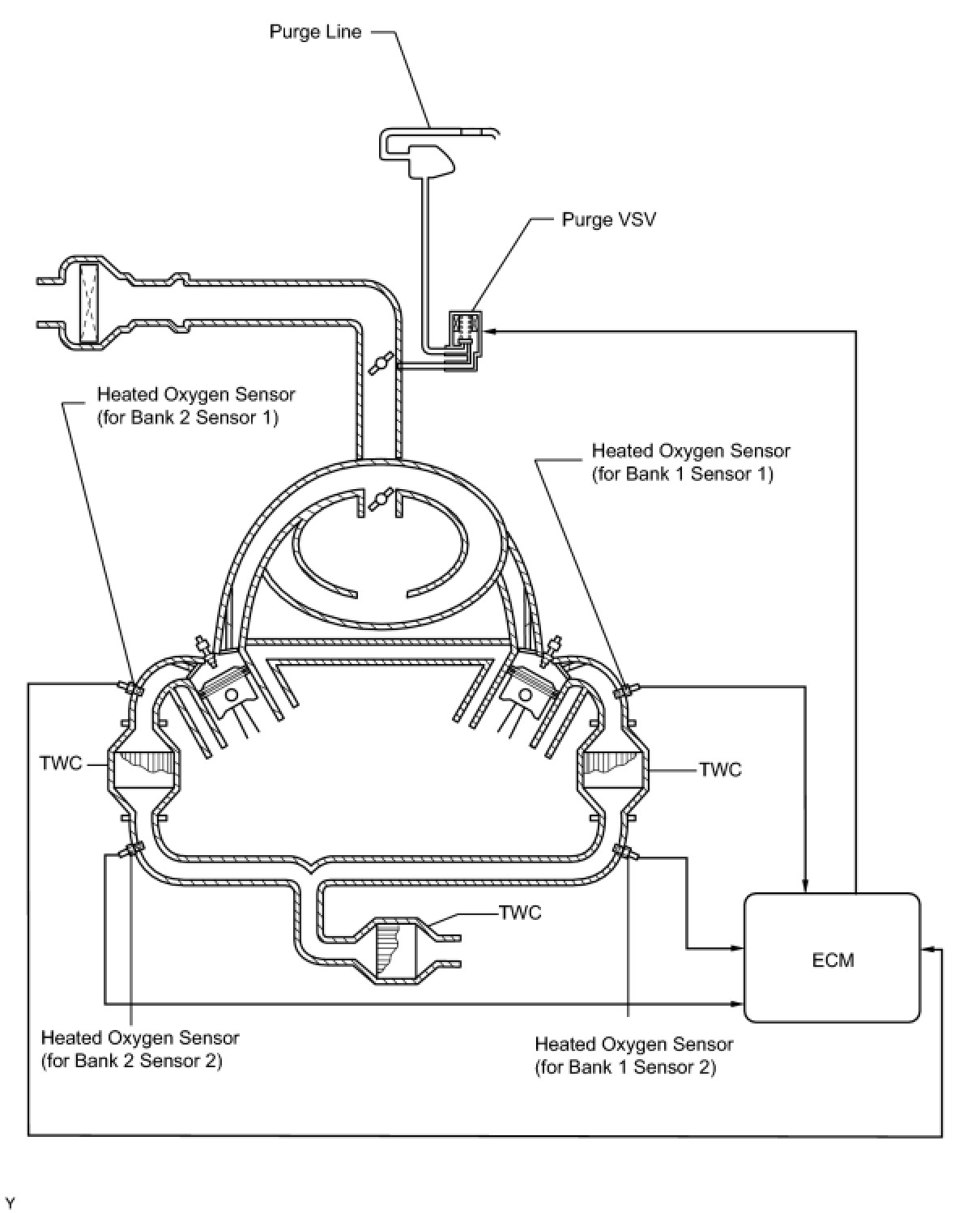

EMISSION CONTROL SYSTEM DIAGRAM
2.

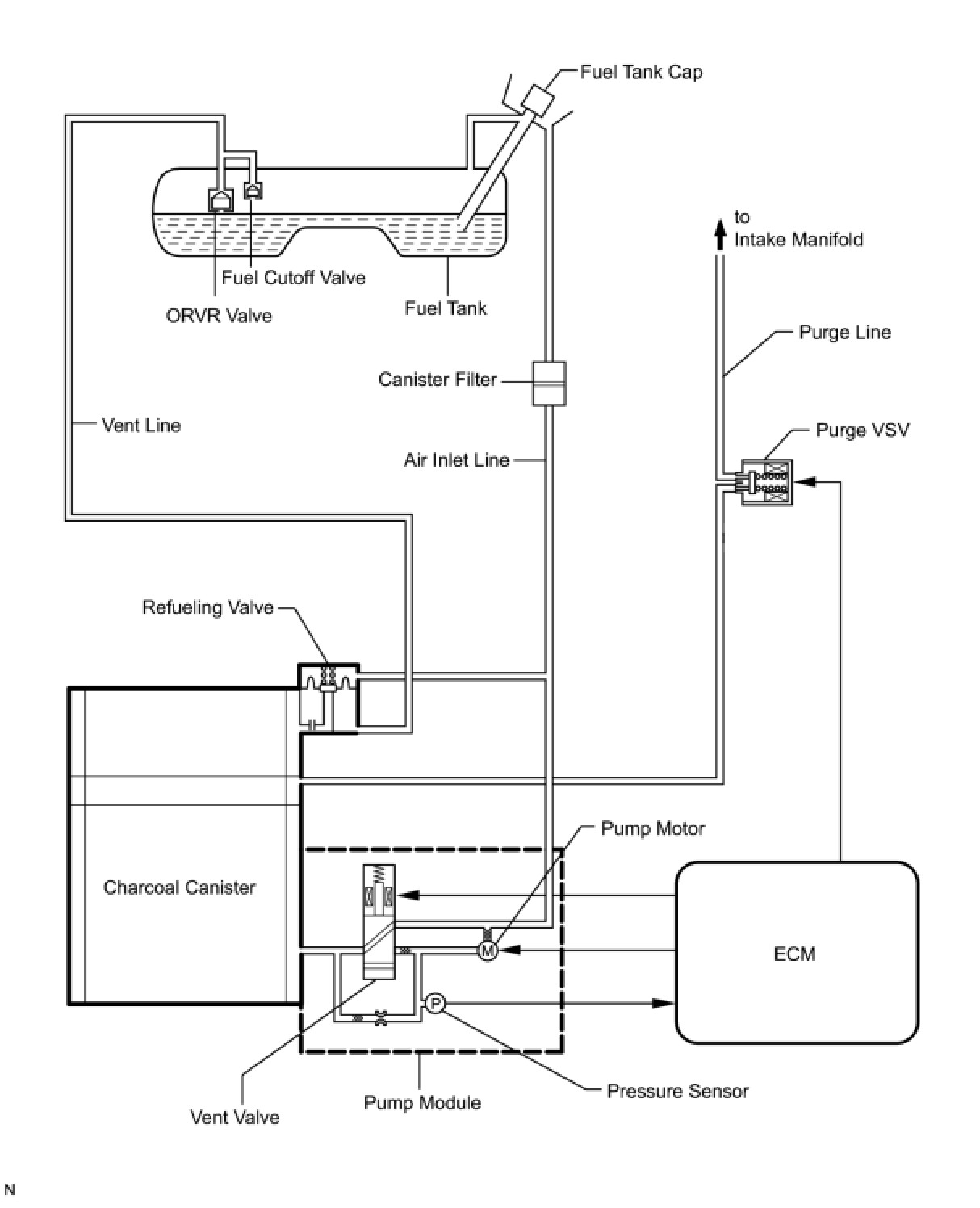

EVAP SYSTEM DIAGRAM
3.
EMISSION CONTROL WIRING DIAGRAM (Heated Oxygen Sensor Circuit)
4.

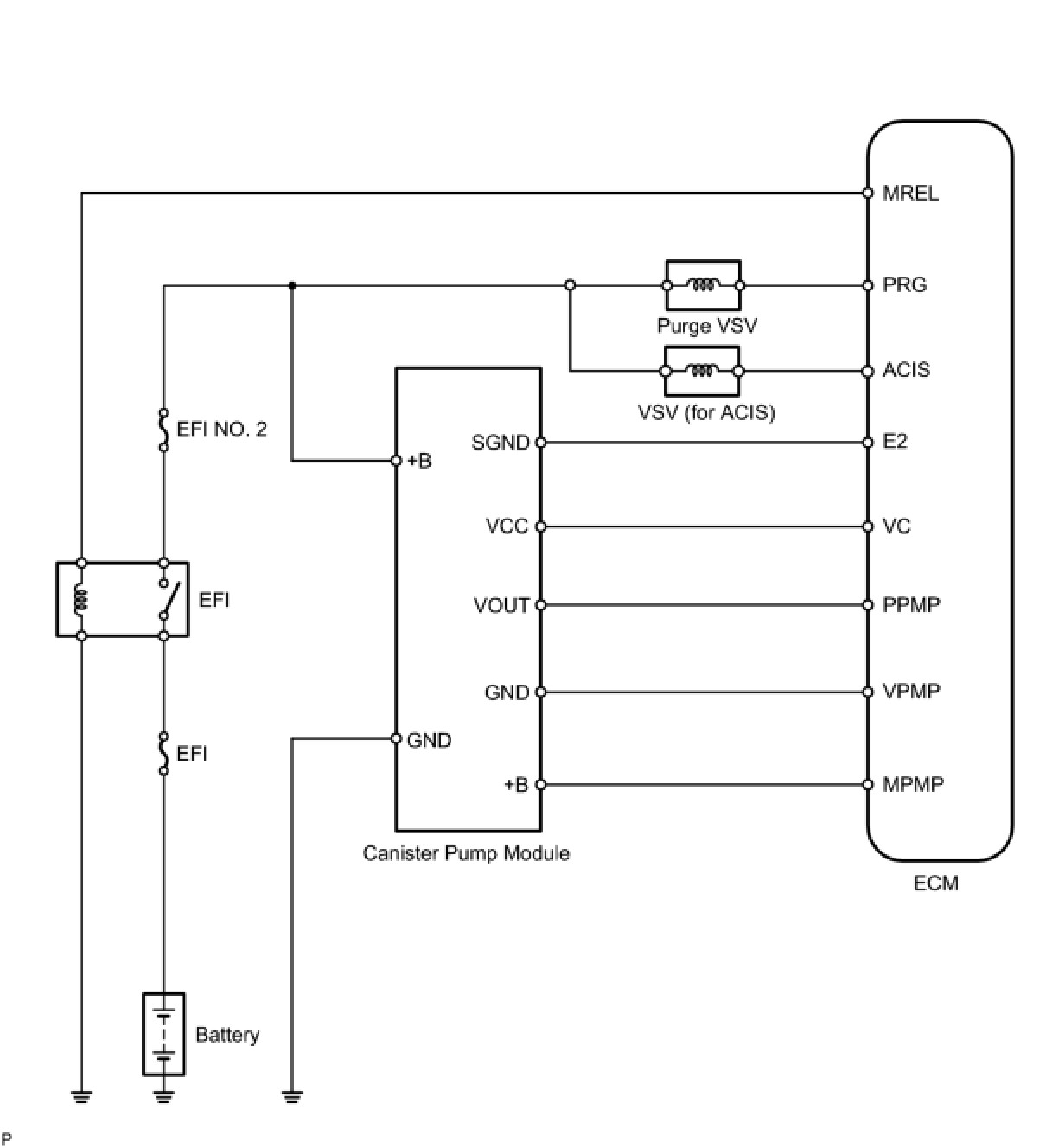

EVAP SYSTEM WIRING DIAGRAM
