Replacement

3UZ-FE CHARGING: GENERATOR: REPLACEMENT

1. REPLACE FRONT BEARING





(a) Remove the 4 screws and bearing retainer.

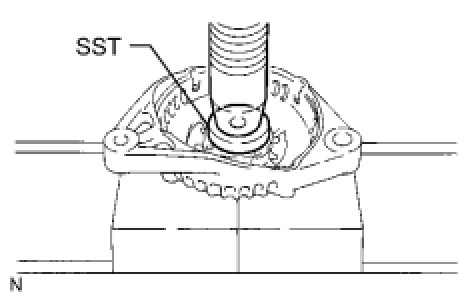

(b) Using SST and a press, press out the bearing.

SST : 09223-00010

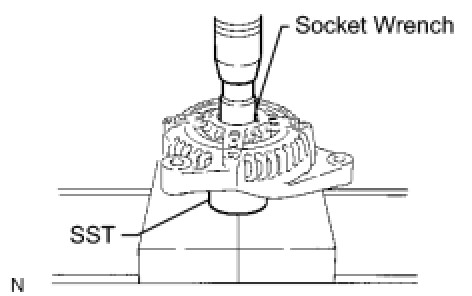

(c) Using SST and a press, press in a new bearing.

SST : 09950-60010

(d) Install the bearing retainer with the 4 screws.

Torque : 2.3 Nm (24 kgf-cm, 20 in-lbf)

2. REPLACE REAR BEARING

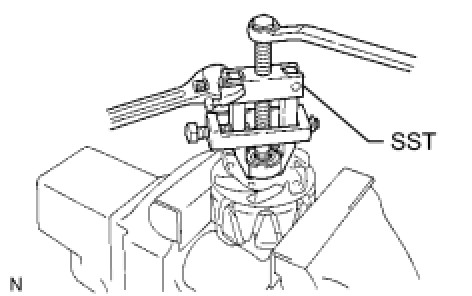

(a) Using SST, remove the bearing cover (outside) and bearing.

SST : 09820-00021

NOTICE:
Be careful not to damage the fan.

(b) Remove the bearing cover (inside).

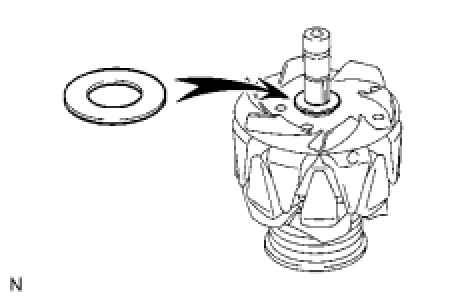

(c) Place the bearing cover (inside) on the rotor.

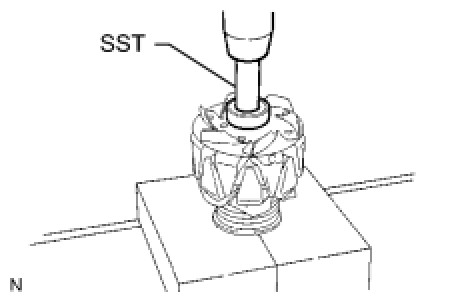

(d) Using SST and a press, press in a new bearing.

SST : 09820-00031





(e) Using SST, push in the bearing cover (outside).

SST : 09285-76010
