Charging System: Description and Operation

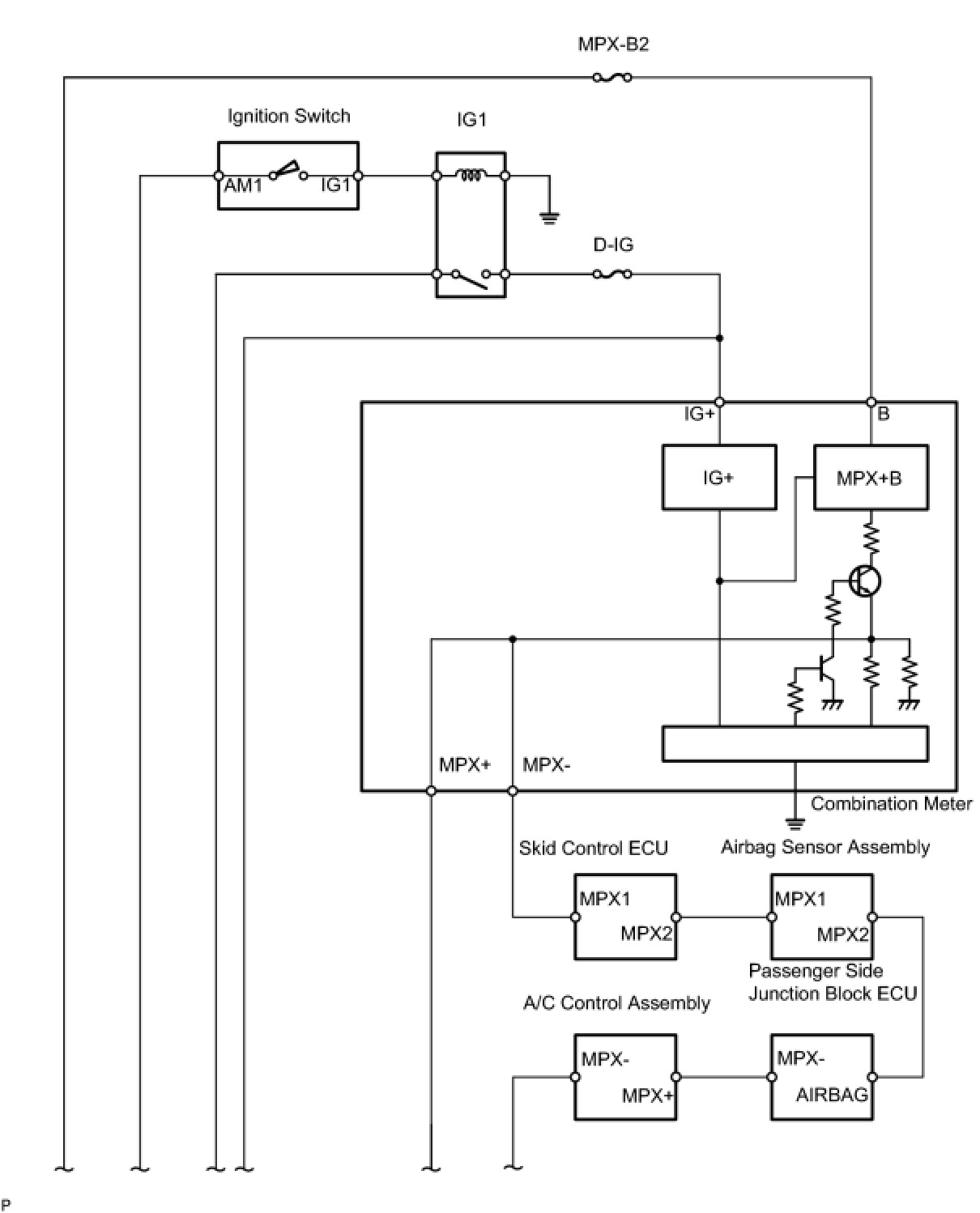

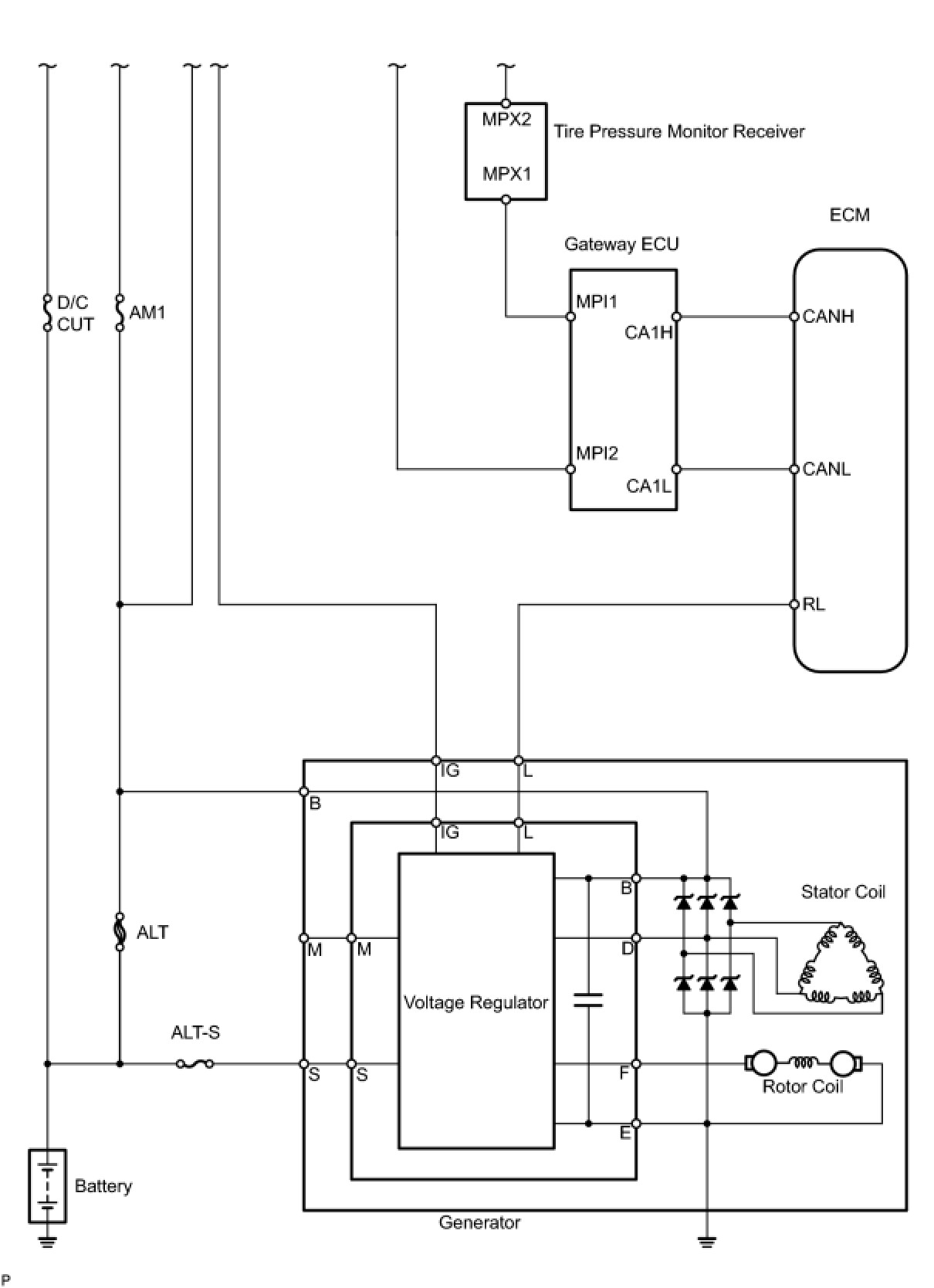

3UZ-FE CHARGING: CHARGING SYSTEM: SYSTEM DIAGRAMThe
charging system uses the voltage regulator to regulate electricity that is generated by the rotor coil rotations. This electricity is stored in the battery.
