Fail-Safe Chart





WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: FAIL-SAFE CHART

1. INSPECT POWER WINDOW FAIL-SAFE FUNCTION

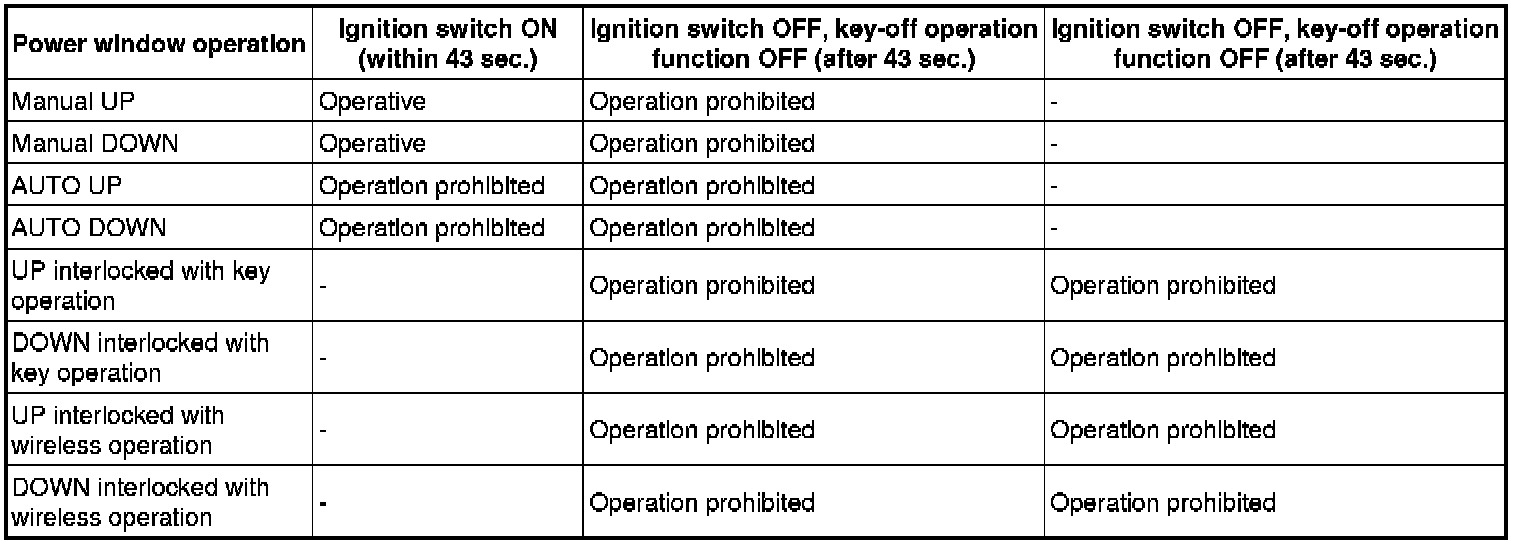

(a) When an abnormality is detected in the limit switch and pulse sensor for operating the jam protection function (DTC: B1231, B1232, B1233, B1234), the following power window operations will be prohibited as a fail-safe.





HINT
When the limit switch is functioning normally, prohibition (fail-safe function) will be canceled by fully opening or fully closing the door glass by manual operation. Then AUTO operation will be possible.
