Smart Access System With Push-Button Start

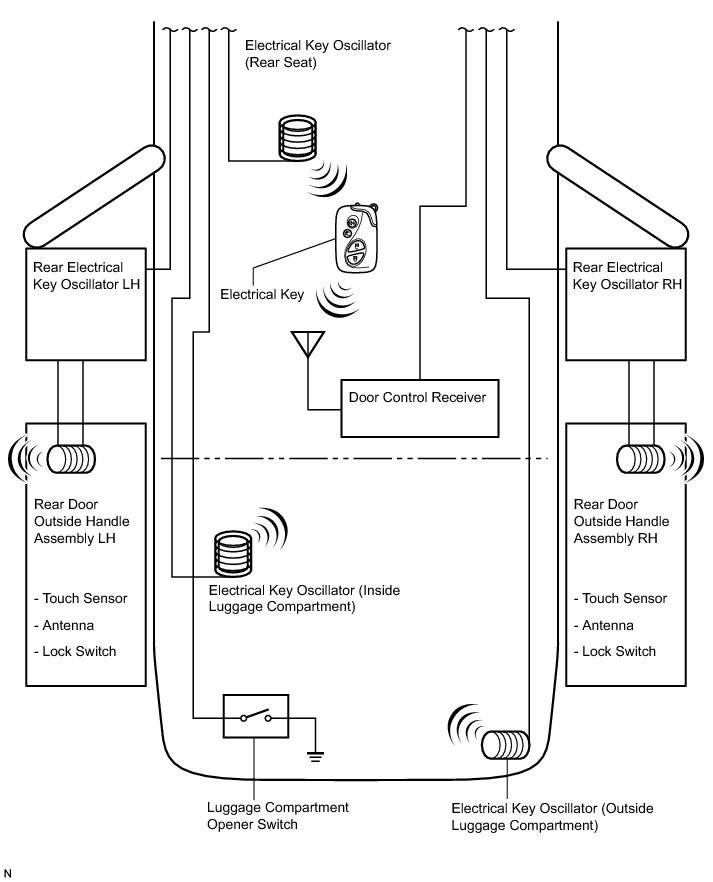

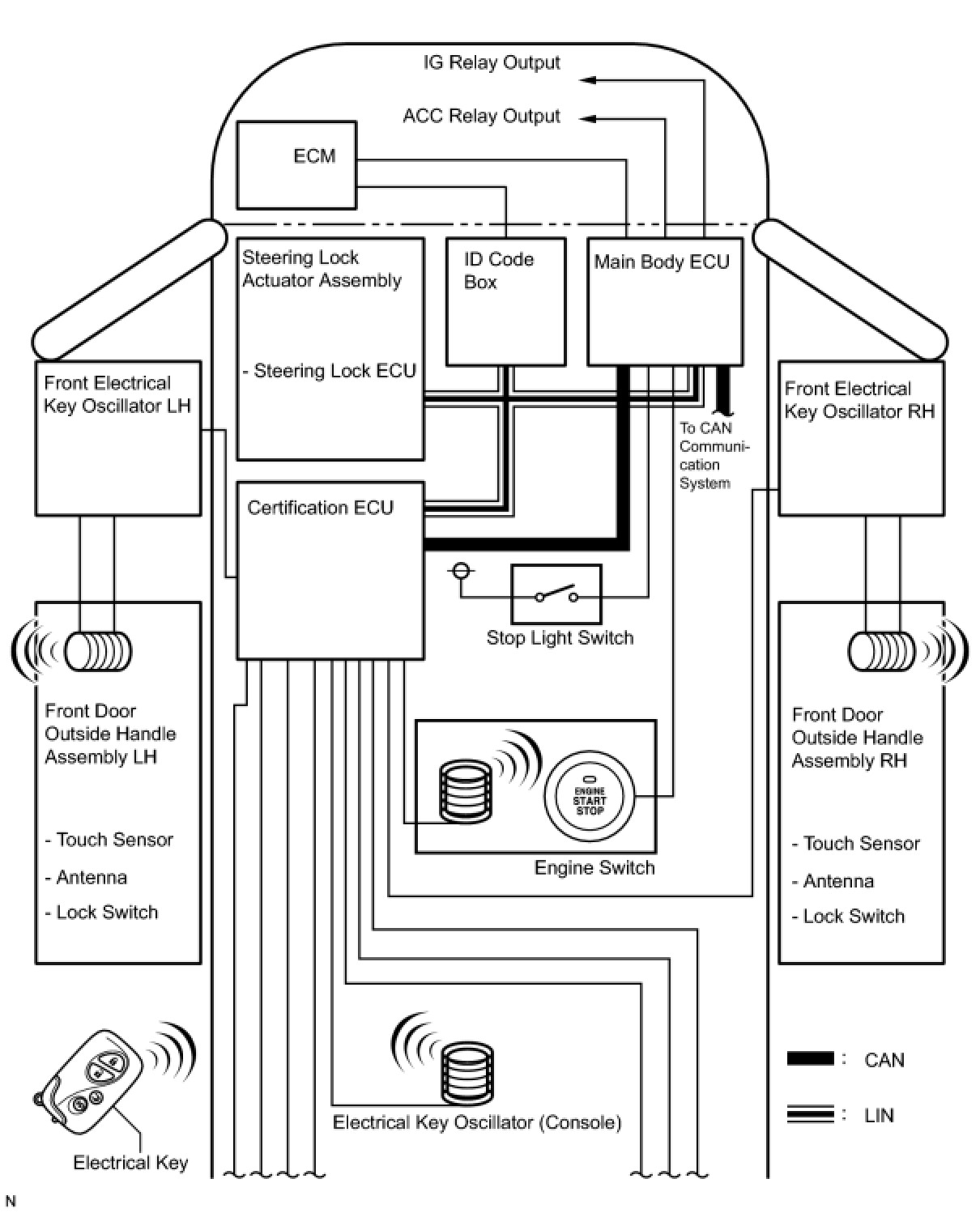

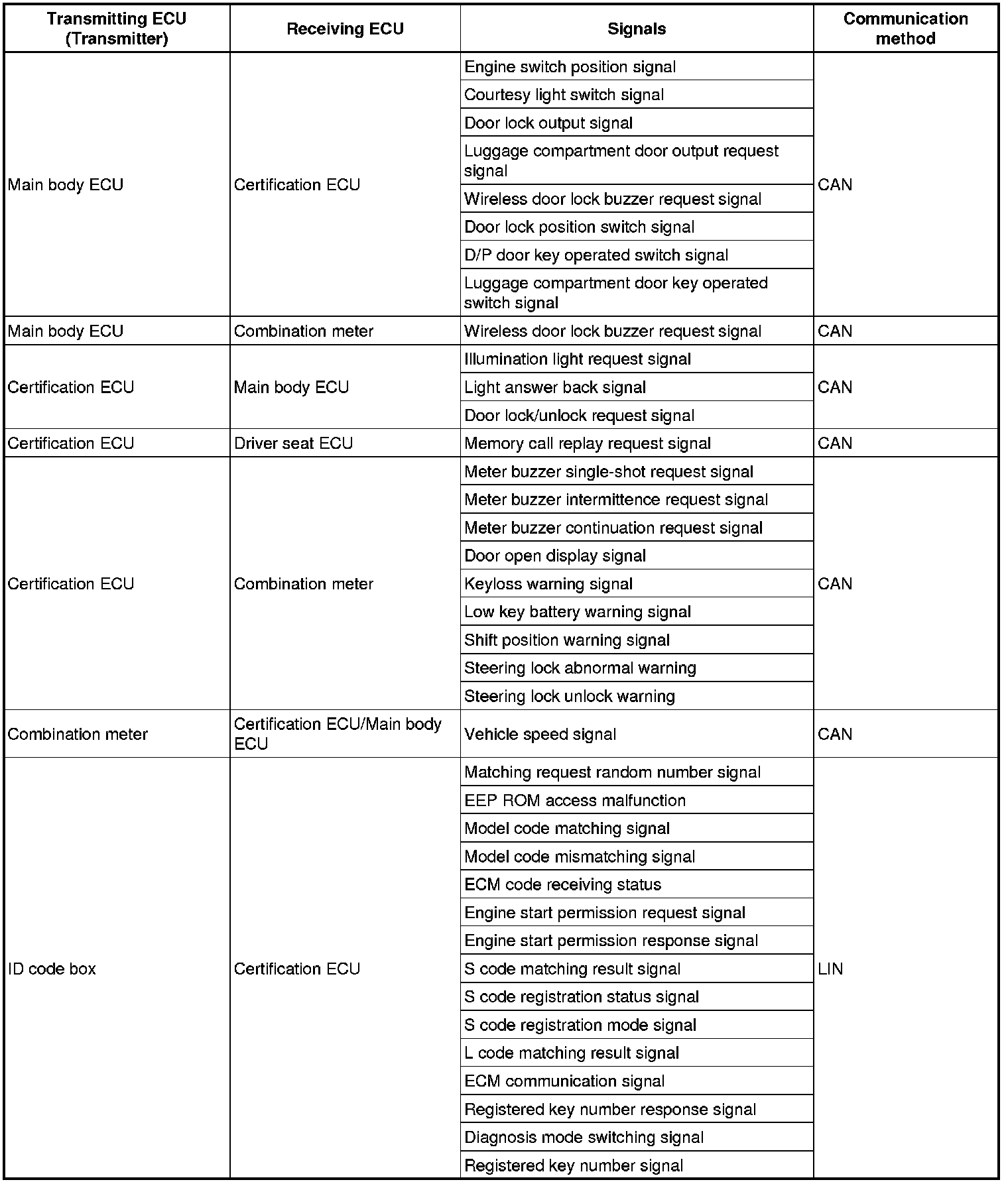

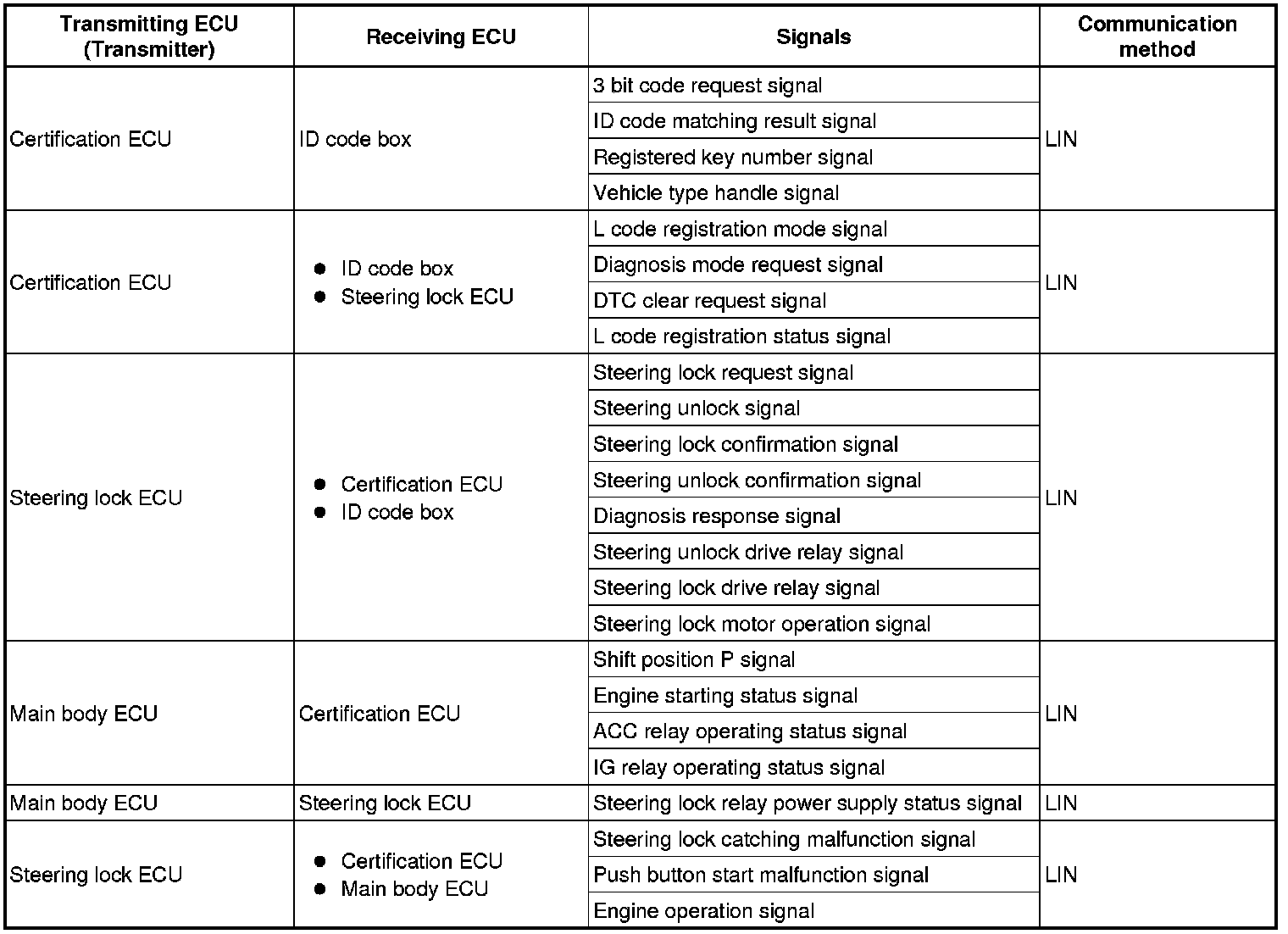

DOOR LOCK: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: SYSTEM DIAGRAM
SYSTEM DESCRIPTION
CAUTION:
If using a pacemaker, be sure to read the manual of the pacemaker before using the electrical key, because the radio waves of the electrical key may affect the pacemaker.
1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START DESCRIPTION
(a) In addition to conventional mechanical key and wireless door lock control functions, the smart access system with push-button start enables door locking/unlocking, steering lock releasing, engine starting and luggage compartment door opening without operating the electrical key. The only requirement is that the electrical key is in the user's possession.
* This system is controlled by the certification ECU. When the certification ECU detects the presence of the an electrical key in one of the detection areas, it identifies and checks the ID code, and outputs operation signals to the related ECU in accordance with their functions.
* The detection areas are formed by 8 oscillators (4 door oscillators, 2 luggage compartment oscillators, and 2 cabin oscillators).

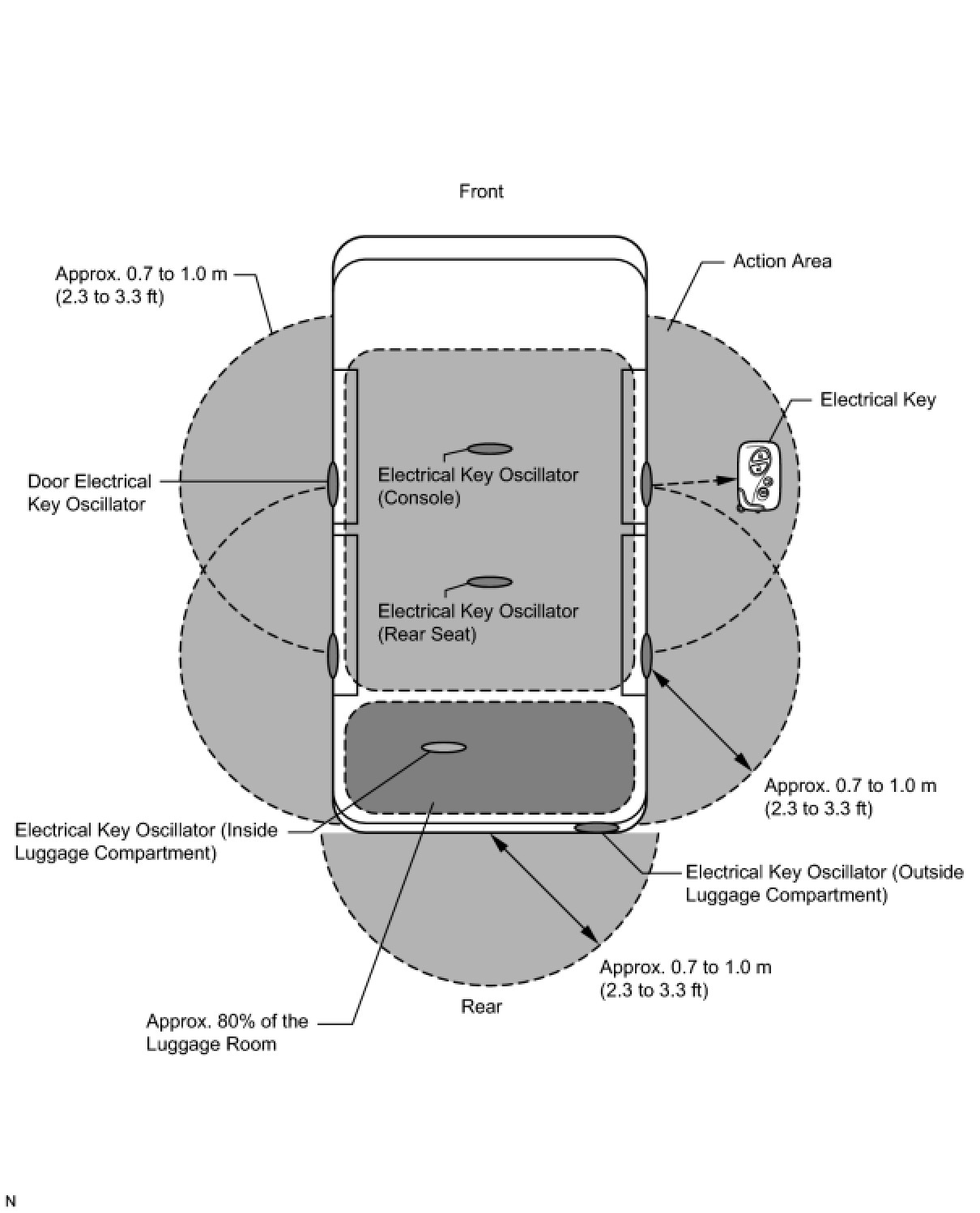

2. DETECTION AREA
(a) Precautions for the entire system:
* Be sure to carry the electrical key during inspection of the smart access system with push-button start.
* As weak radio waves are used to detect the electrical key, the electrical key detection area may decrease, or the electrical key may not be detected correctly in the following situations:
* The electrical key battery is depleted.
* Any facilities that generate strong radio waves, such as a TV tower, power plant, broadcast station, or gas station, are located near the inspection site.
* A wireless device, such as a cellular phone, is carried with the electrical key.
* The electrical key is in contact with or covered with metal.
* Another wireless door lock control function is operated near the vehicle.
* The electrical key is located near a device that generates high voltage or noise.
* The electrical key may be difficult to operate for a reason relating to the vehicle body shape.
* The electrical key may not be detected correctly if it is around the vehicle's windows, the door handle, or the center of the bumper even when it is in the detection area outside the vehicle.
* The electrical key may not be detected correctly if it is on the instrument panel, rear package tray, floor, or in the glove box even when it is in the detection area inside the vehicle.
* The engine cannot be started even when the electrical key is in the detection area inside the luggage compartment.
* The electrical key may not operate if the electrical key is not held properly.
* The smart access system with push-button start does not operate in the following conditions:
* The smart access system with push-button start is canceled.
* The electrical key battery is completely depleted (the indicator does not blink when pushing any of the buttons on the electrical key).

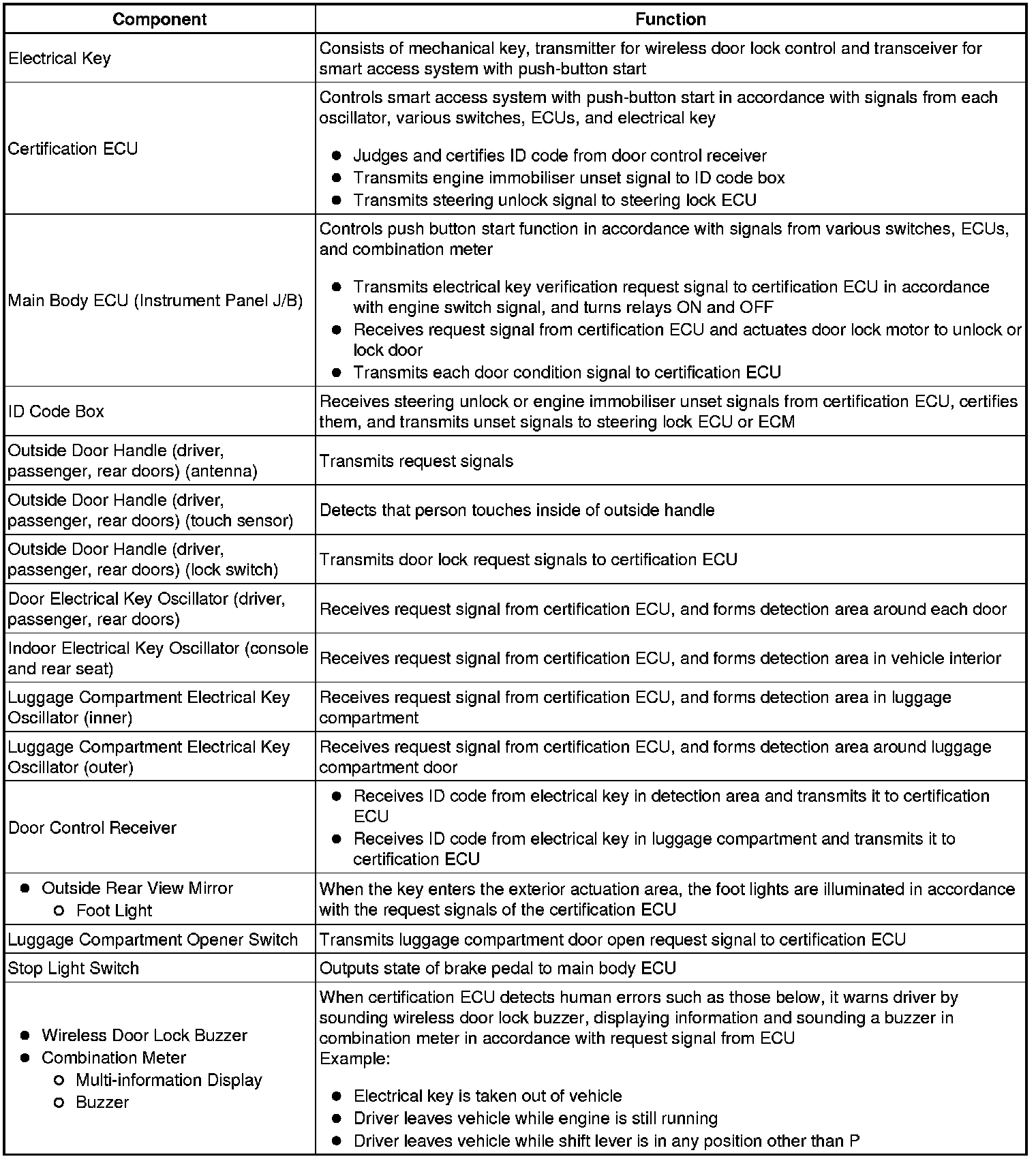

3. FUNCTION OF MAIN COMPONENTS
4. CONSTRUCTION AND OPERATION

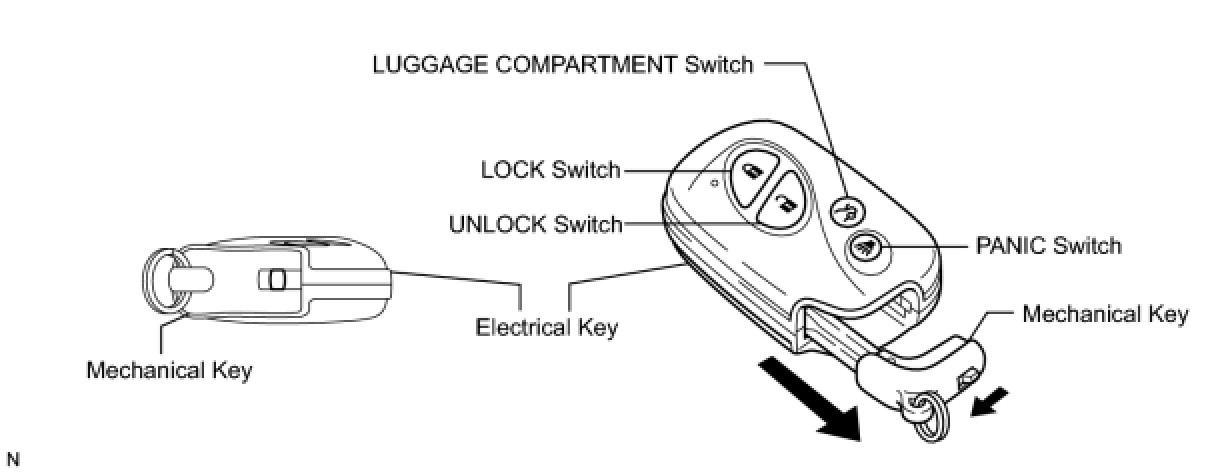

(a) Electrical Key
The electrical key consists of a mechanical key, a transmitter for the wireless door lock control, and a transceiver for the smart access system with push-button start.
* The transceiver for the smart access system with push-button start receives signals from the oscillators and sends the ID code to the tuner.
* The transmitter for the wireless door lock control has a LOCK switch, UNLOCK switch, LUGGAGE COMPARTMENT switch, and PANIC switch.
* This mechanical key works for the driver door, luggage compartment door, and glove box, but cannot start the engine.
A total of 7 electrical keys can be registered.
(b) Oscillator (each door oscillator, front and rear indoor oscillator, luggage compartment inner oscillator, luggage compartment outer oscillator)
Each oscillator transmits the request signal received from the certification ECU, and forms an electrical key detection area to detect the presence of an electrical key. The detection area formed by each door oscillator and luggage compartment outer oscillator is approximately 0.7 to 1.0 m (2.3 to 3.3 ft) from the outside handle of each door or the center of the rear bumper.
* The detection area of each door oscillator is formed by transmitting a request signal every 0.25 seconds while the engine switch is off and each door is locked. In this way, it detects the proximity of an electrical key. During entry lock, the detection area is formed with the lock switch on.
* The detection area of the luggage compartment outer oscillator is formed when the power luggage door open switch is on.
* The detection area of the indoor oscillator (front and rear) is formed when the driver door is opened or closed, entry luggage compartment open, electrical key lock-in prevention during start ignition, when a warning is activated, or when the lock switch is on.
* The detection area of the luggage compartment inner oscillator is formed when the luggage compartment door is closed, entry luggage compartment open, electrical key lock-in prevention the luggage compartment open switch or lock switch is pressed.
5. ENTRY FUNCTION OPERATION

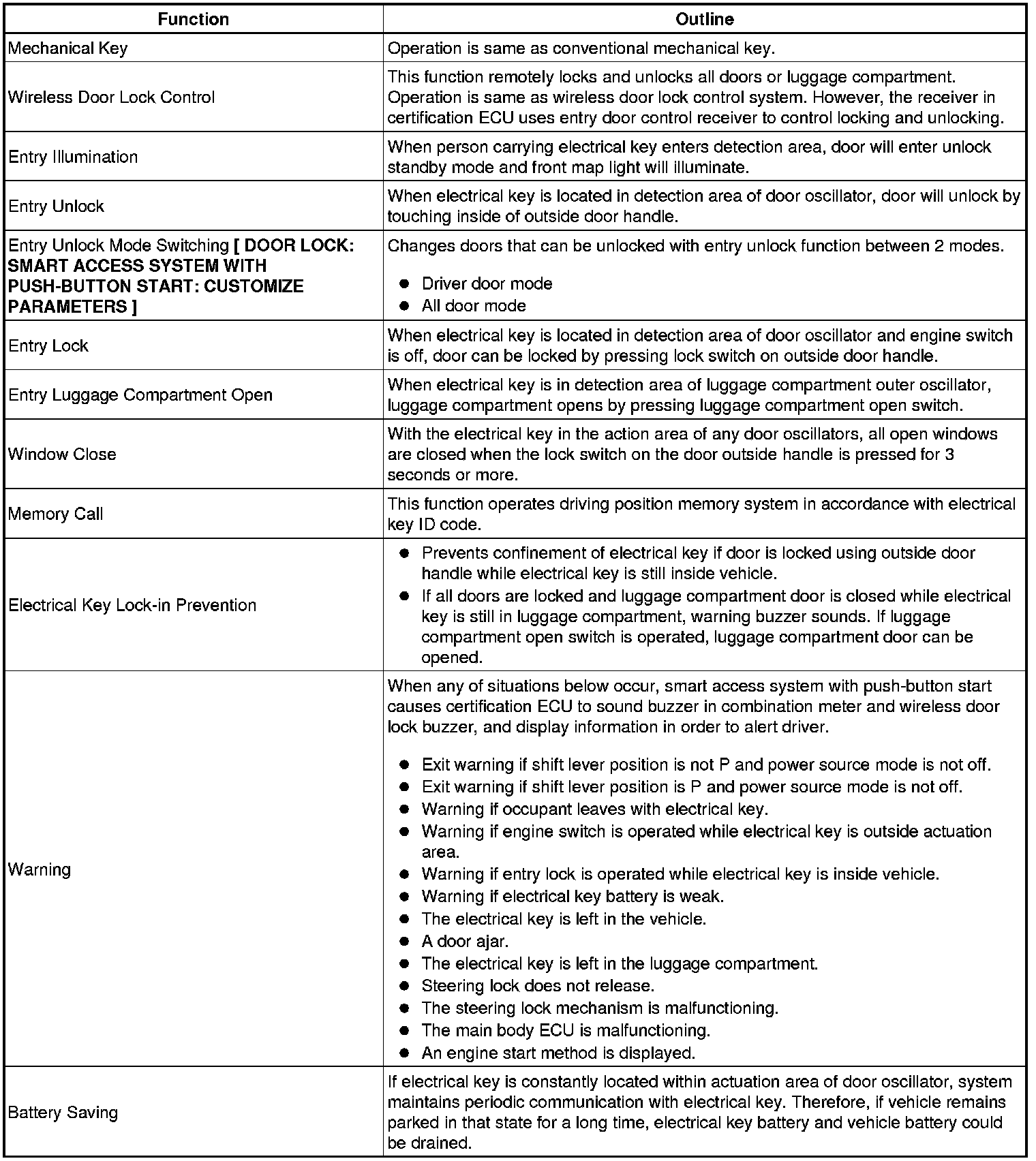

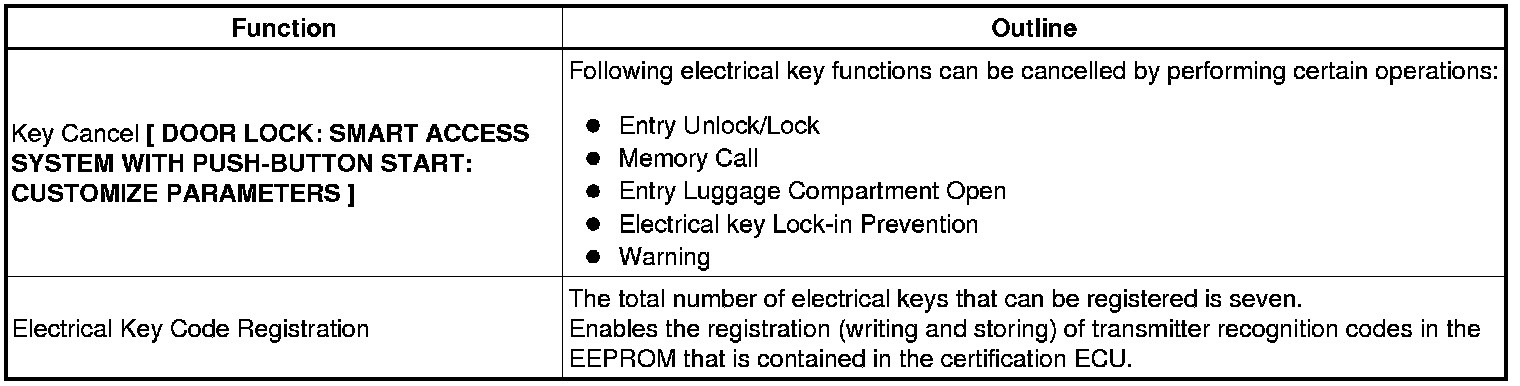

(a) The smart access system with push-button start has the following functions:
6. WIRELESS DOOR LOCK AND UNLOCK AND LUGGAGE COMPARTMENT OPEN FUNCTION
Push the LOCK/UNLOCK/PANIC/LUGGAGE COMPARTMENT switch on the electrical key to operate each function. For details, Operation Check.
7. ENTRY UNLOCK FUNCTION
(a) The detection area is formed by communication between a door oscillator and door control receiver when the door is locked in order to detect access of the person carrying the electrical key.
(b) When the person carrying the electrical key enters the detection area around the vehicle, the matching of the ID codes for a door oscillator and electrical key will automatically be performed. After the matching is completed, the door will enter unlock standby mode.
(c) In unlock standby mode, the antenna built into the outside handle starts sensing. If the outside handle is held (the back side of the handle is touched), the door unlock operation will be performed. At this time, the hazard warning light blinks twice and the wireless door lock buzzer sounds twice.
(d) If any of the doors are not opened after a door unlock operation, all doors will automatically lock after 60 (only for U.S.A. and Canadian package models) or 30 (except U.S.A. and Canadian package models) seconds.
8. ENTRY LOCK FUNCTION
(a) After leaving the vehicle carrying the electrical key, push the lock switch on the outside handle when all the doors are closed.
(b) The certification ECU determines whether the electrical key is located inside or outside of the cabin based on the information from a door oscillator and room oscillator. Then matching of the ID codes is performed.
(c) When the matching result shows that the ID codes of the electrical key and indoor antenna do not match and the ID codes of the electrical key and door oscillator match, the door lock function will operate. At this time, the hazard warning lights blink once and the wireless door lock buzzer sounds once.

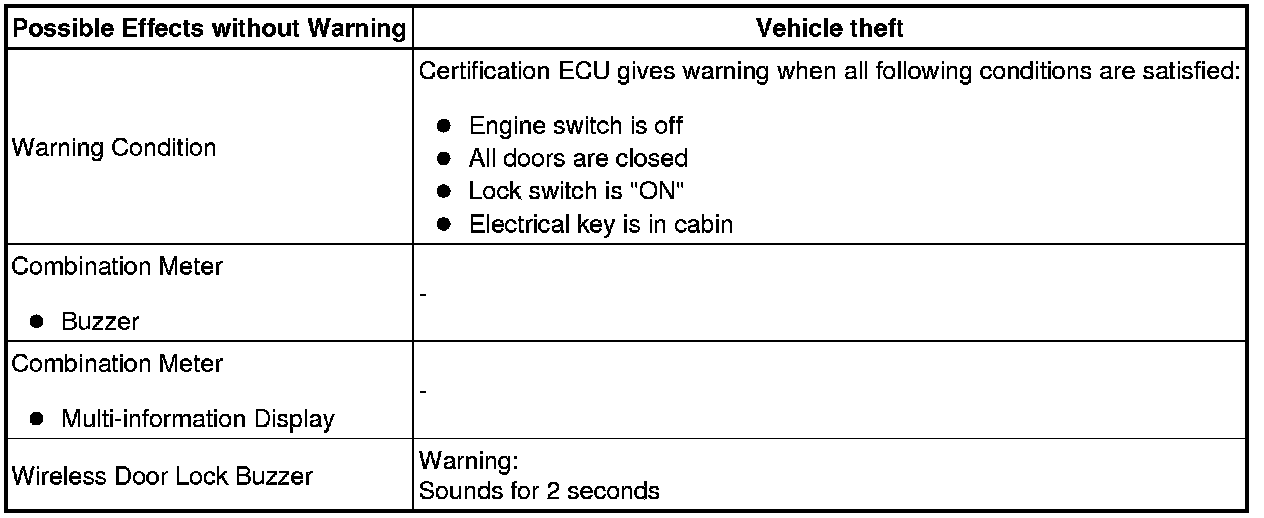

(d) If the electrical key is located inside of the cabin, the door lock function will not operate and the alarm buzzer (beep sound) will sound for 2 seconds.
9. ENTRY LUGGAGE COMPARTMENT OPEN FUNCTION
Stand in front of the luggage compartment with the electrical key and push the power luggage compartment opener switch to start the matching of the ID codes for the electrical key oscillator (outside luggage compartment). If the ID codes match, luggage compartment door open operation will be performed.
10. PREVENTION OF ELECTRICAL KEY CONFINEMENT FUNCTION
(a) If you attempt to lock the door through keyless operation (move the lock knob to the lock position and then close the door) with the electrical key in the cabin, the system determines that the electrical key is located in the cabin and unlocks the door.
(b) If the luggage compartment is closed with the electrical key in it, the alarm will sound and the luggage compartment can be opened only when all the doors are locked in order to prevent electrical key confinement in the vehicle.
11. ENTRY ILLUMINATION FUNCTION
When a person carrying the electrical key enters the detection area, the door will enter unlock standby mode and the front map light will illuminate.
HINT
The entry illumination function operates when the electrical key enters the vehicle exterior detection area from out of the detection area. If the electrical key remains in the detection area for 3 seconds or more, the illumination function does not operate.
12. MEMORY CALL FUNCTION
When the engine switch is off and the driver side door is closed, opening the door will operate the memory call function (the door will move to a previously recorded driving position). Using the electrical key, memory call, electrical key registration and electrical key cancellation can be performed.

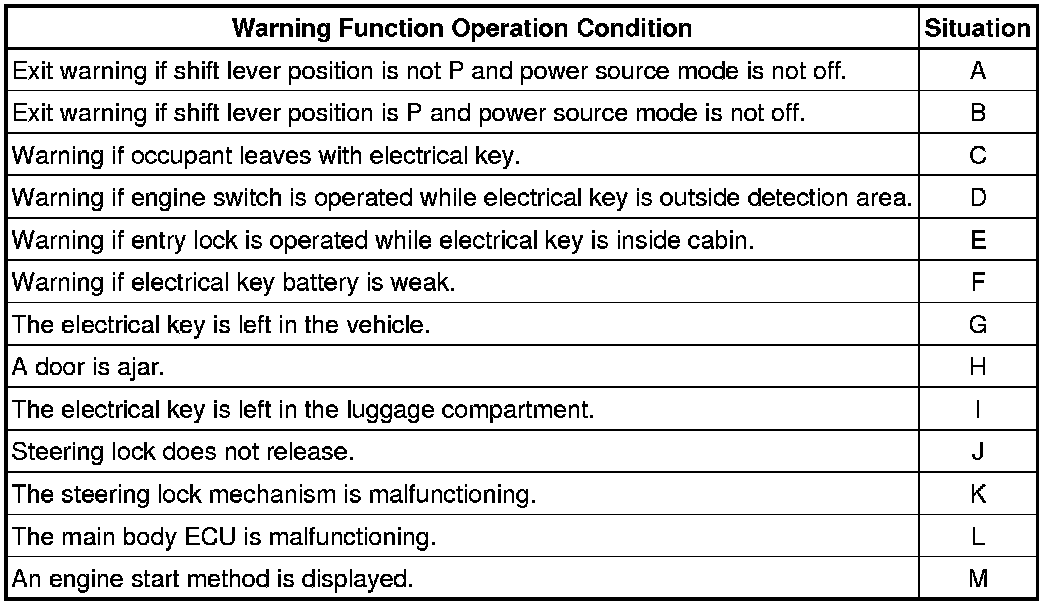

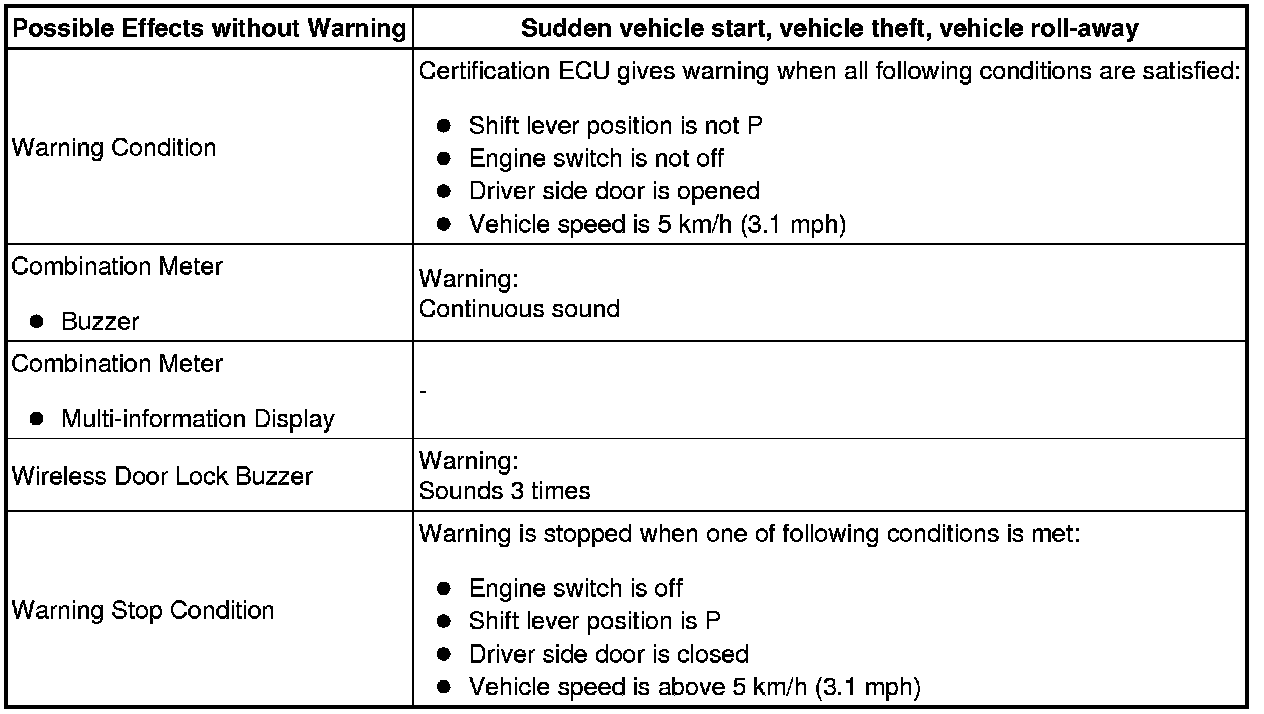

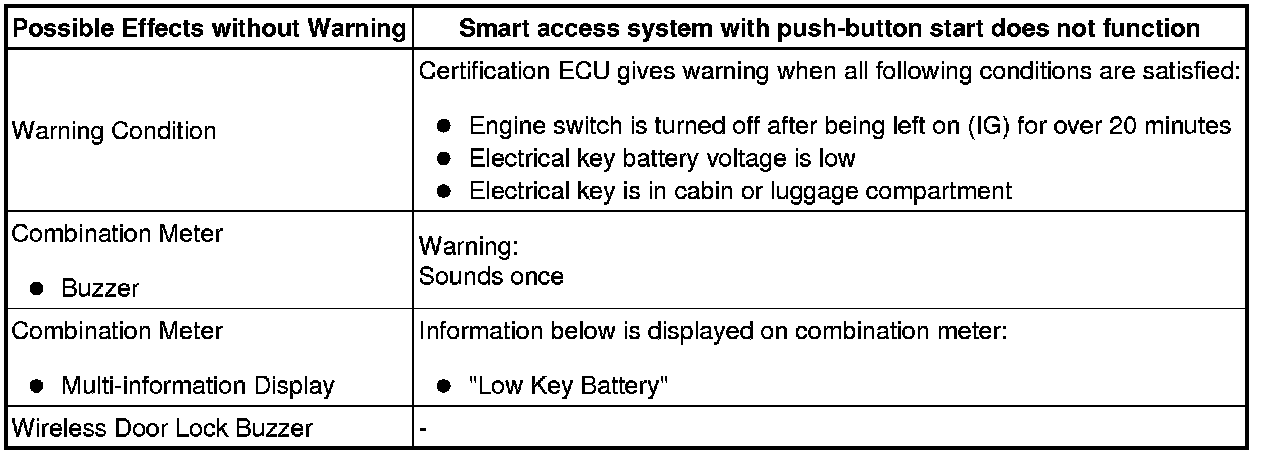

13. WARNING FUNCTION
(a) General
When any of the situations below occur, the smart access system with push-button start causes the certification ECU to sound the buzzer in the combination meter and the wireless door lock buzzer, and illuminate the combination meter's multi-information display in order to alert the driver.

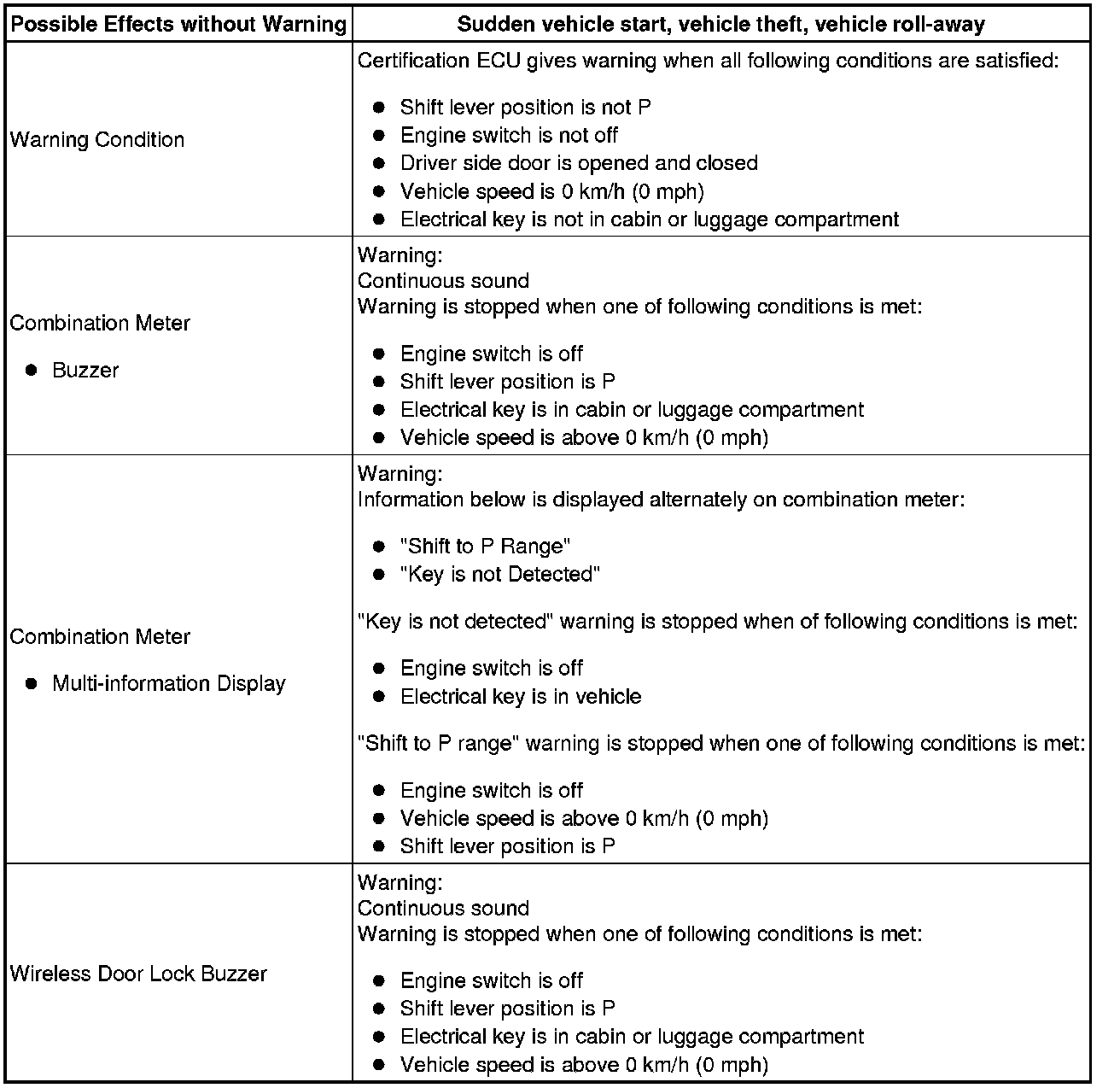

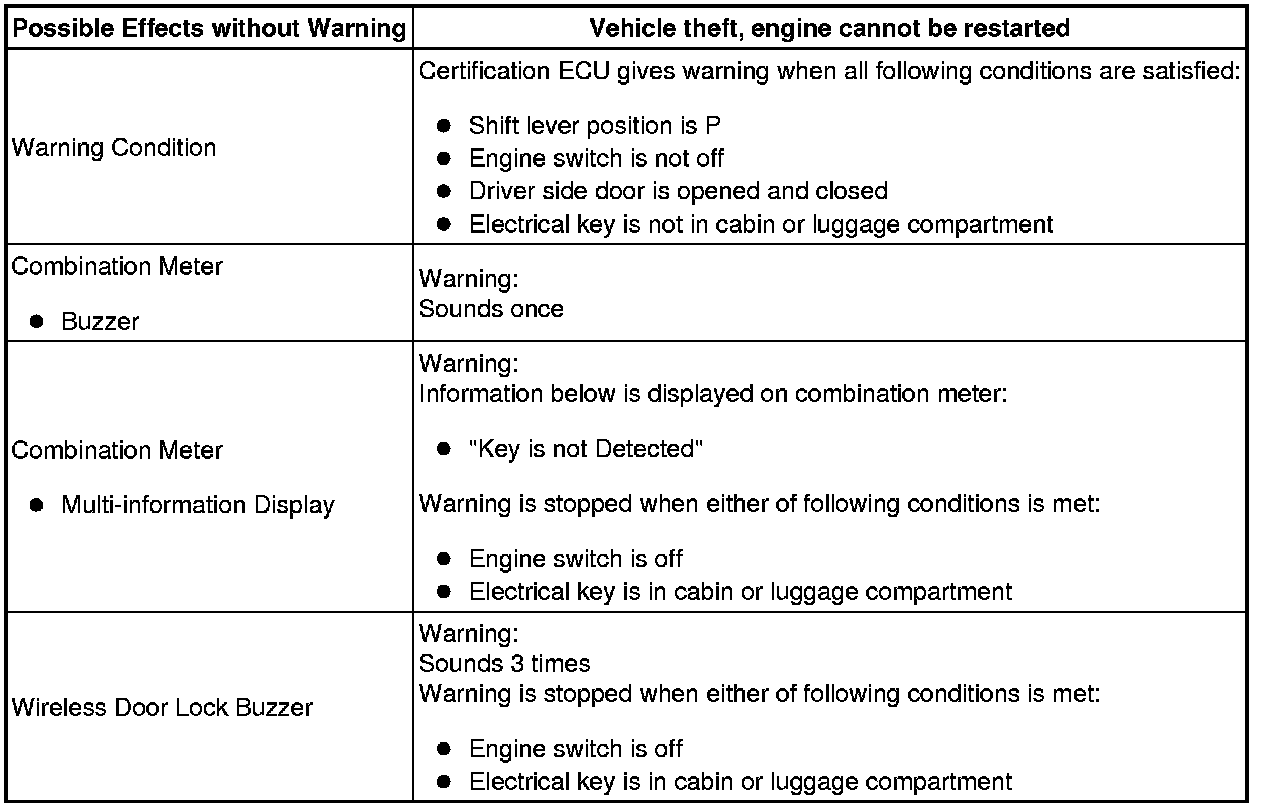

(b) Situation A
There are 2 patterns for situation A.
Pattern 1: In situation A, the door is opened and the user tries to leave the vehicle.
Pattern 2: Then the user holds the electrical key and tries to move away from the vehicle.
In these situations, the following control is performed:
* Pattern 1
* Pattern 2
(c) Situation B
There are 2 patterns for situation B.
Pattern 1: In situation B, the door is opened and the user tries to leave the vehicle.
Then the user holds the electrical key and tries to move away from the vehicle.
Pattern 2: Then the user tries to use the entry lock and presses the lock switch.
In these situations, the following control is performed:
* Pattern 1
* Pattern 2

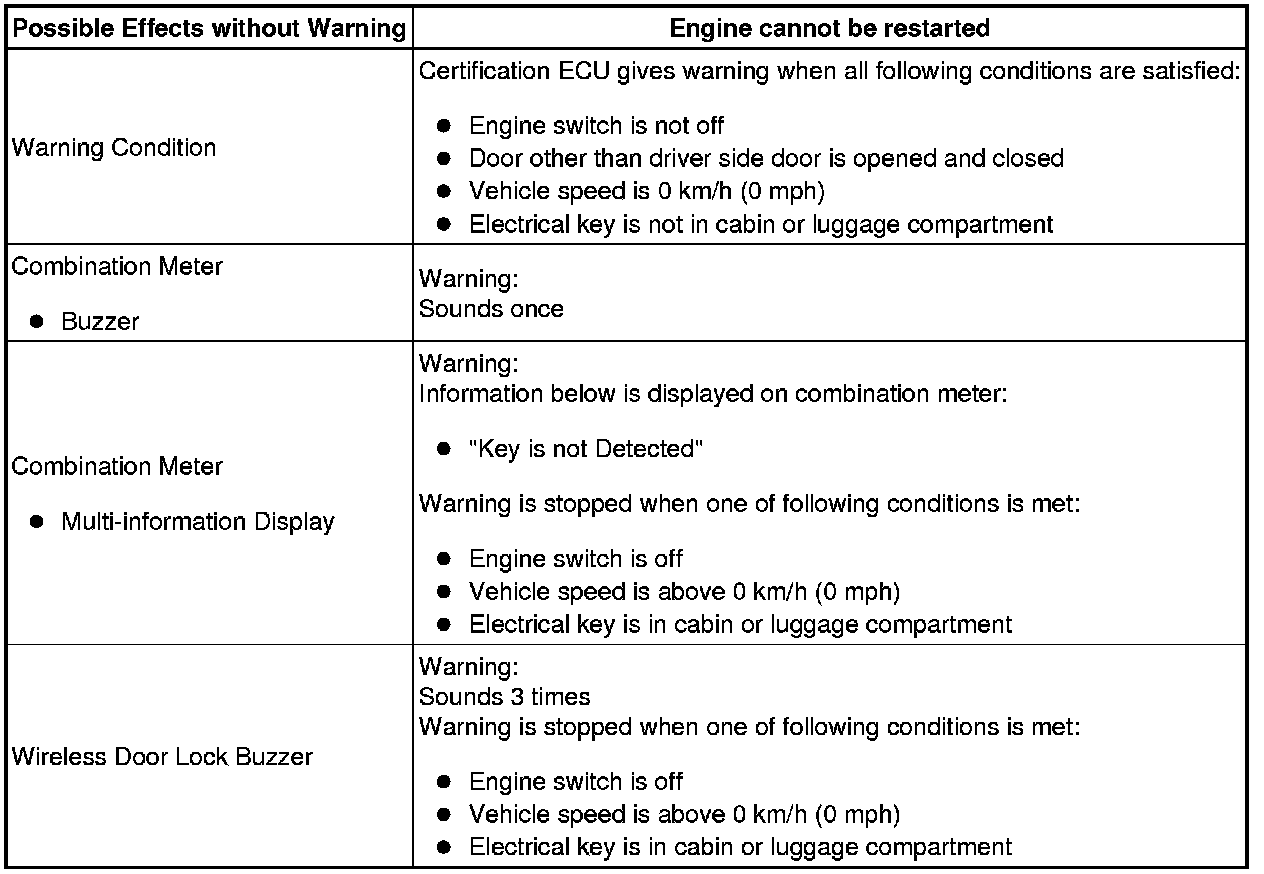

(d) Situation C
In this situation, the following control is performed:

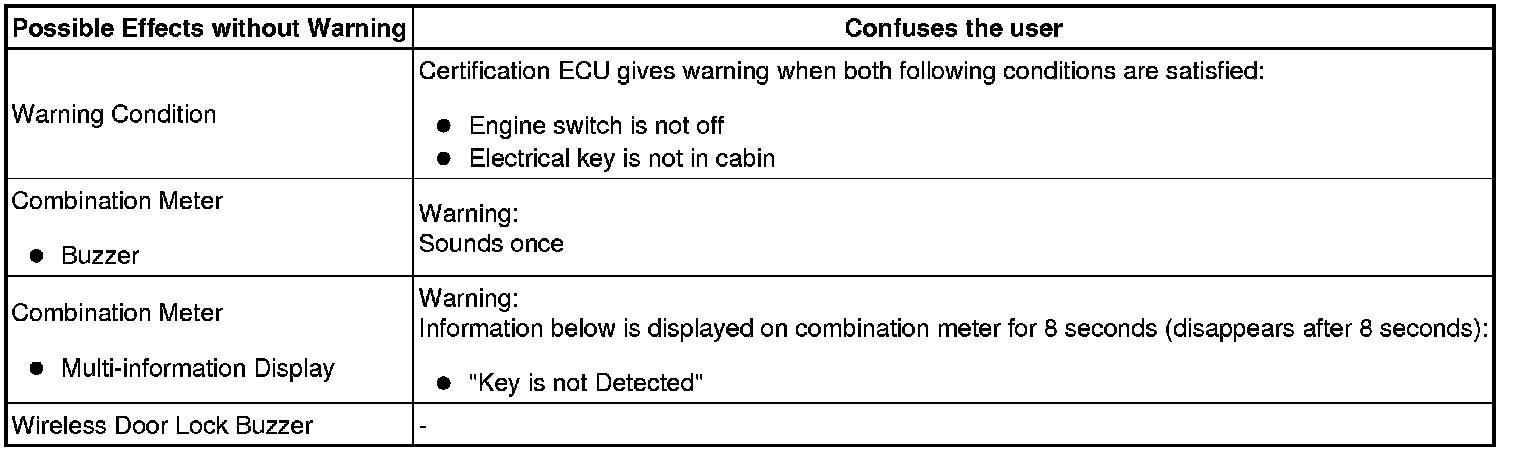

(e) Situation D
In this situation, the following control is performed:
(f) Situation E
In this situation, the following control is performed:
(g) Situation F
In this situation, the following control is performed:

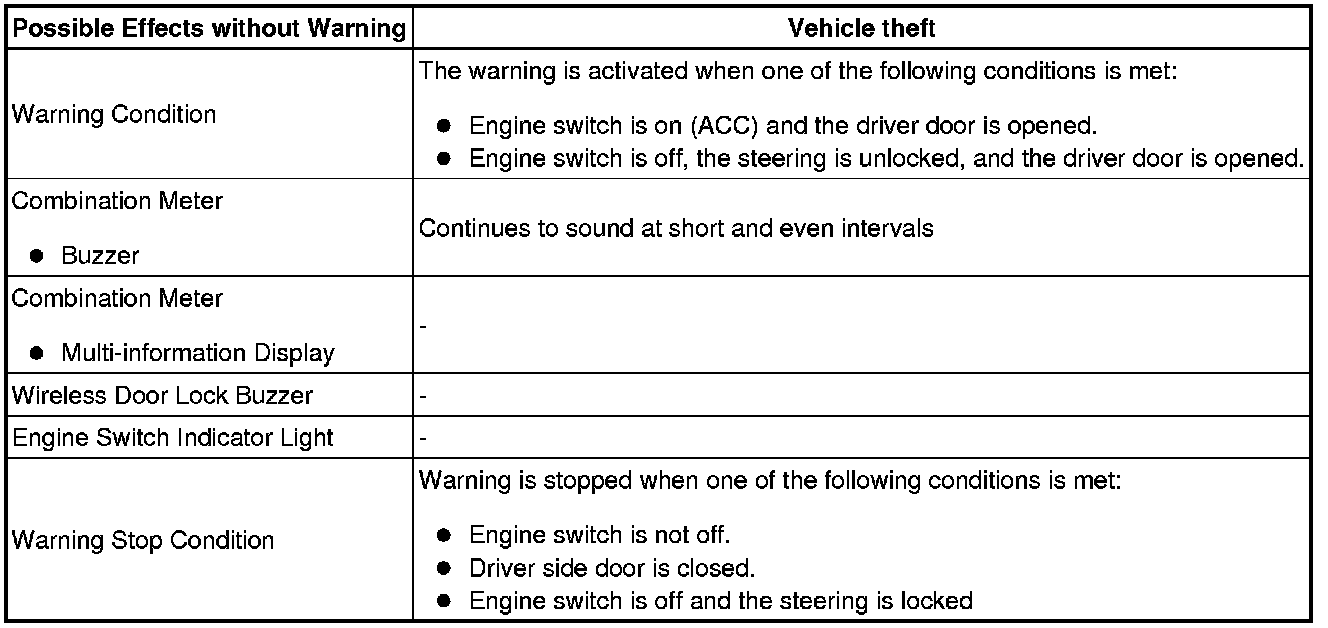

(h) Situation: G
There are two patterns for situation G.
* Pattern 1: When the driver's door is open, the driver changes the power source mode to ACC and attempts to leave the vehicle.
* Pattern 2: When the driver's door is open, the driver changes the power source mode from ON to OFF and attempts to leave the vehicle.
In these situations, the following control is performed:
Pattern 1. and Pattern 2.

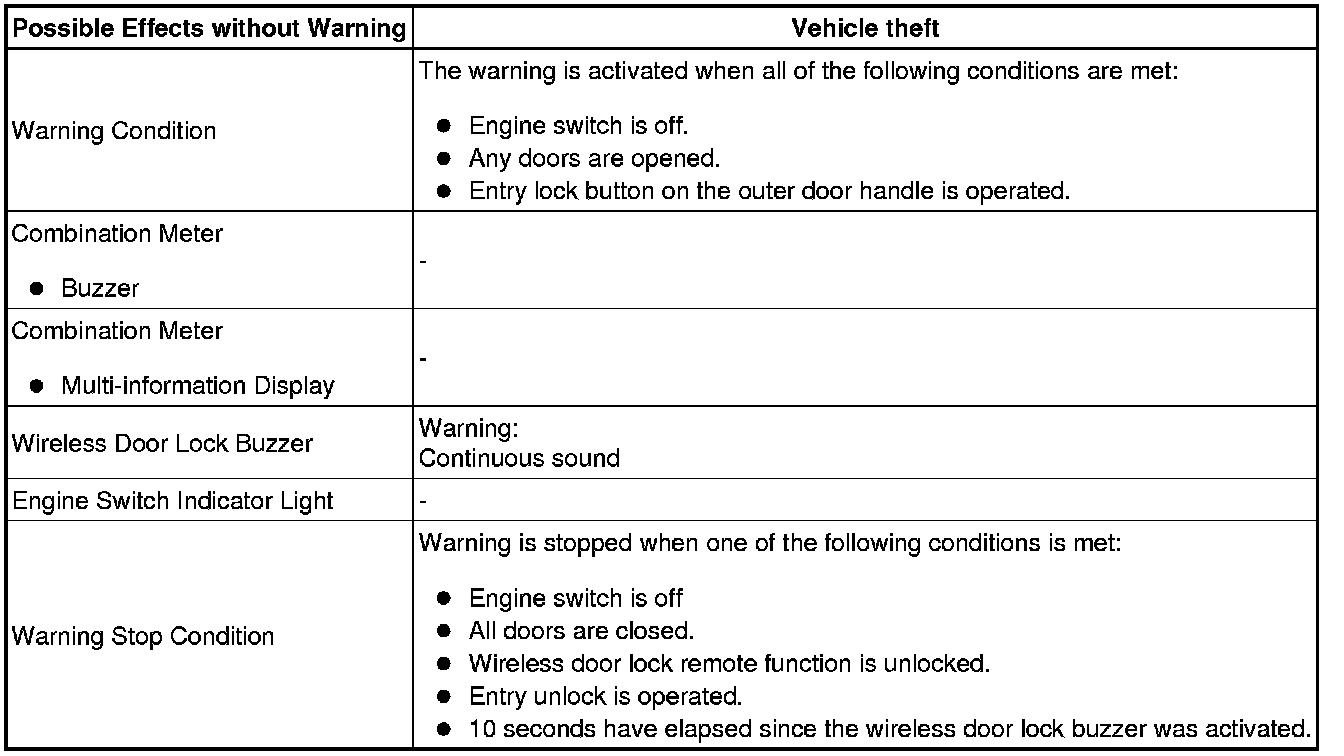

(i) Situation: H
The lock switch on the door outside handle is pressed to perform entry lock with a door open.
In this situation, the following control is performed:

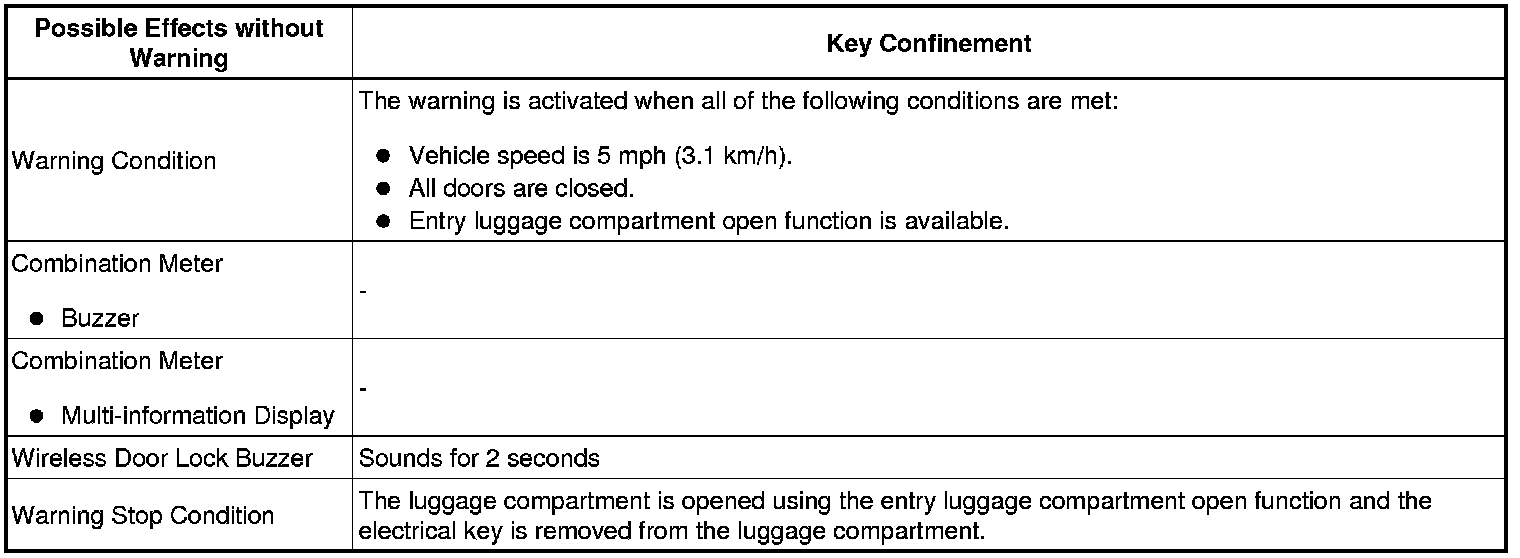

(j) Situation: I
The luggage compartment door is closed with the electrical key left in the luggage compartment.
In this situation, the following control is performed:
(k) Situation: J
The steering lock cannot be released.
In this situation, the following control is performed:

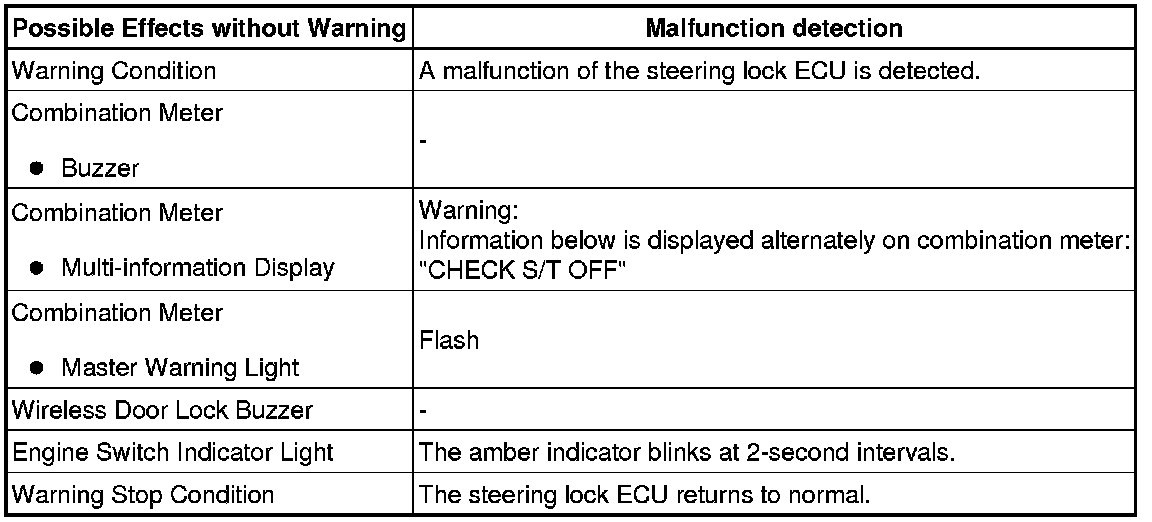

(l) Situation: K
A malfunction of the steering lock ECU is detected.
In this situation, the following control is performed:

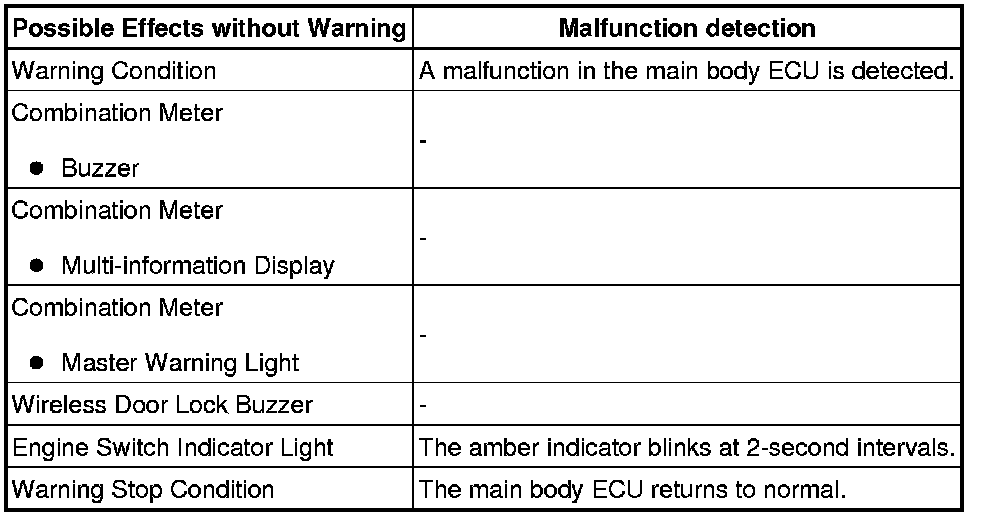

(m) Situation: L
A malfunction of the main body ECU is detected.
In this situation, the following control is performed:

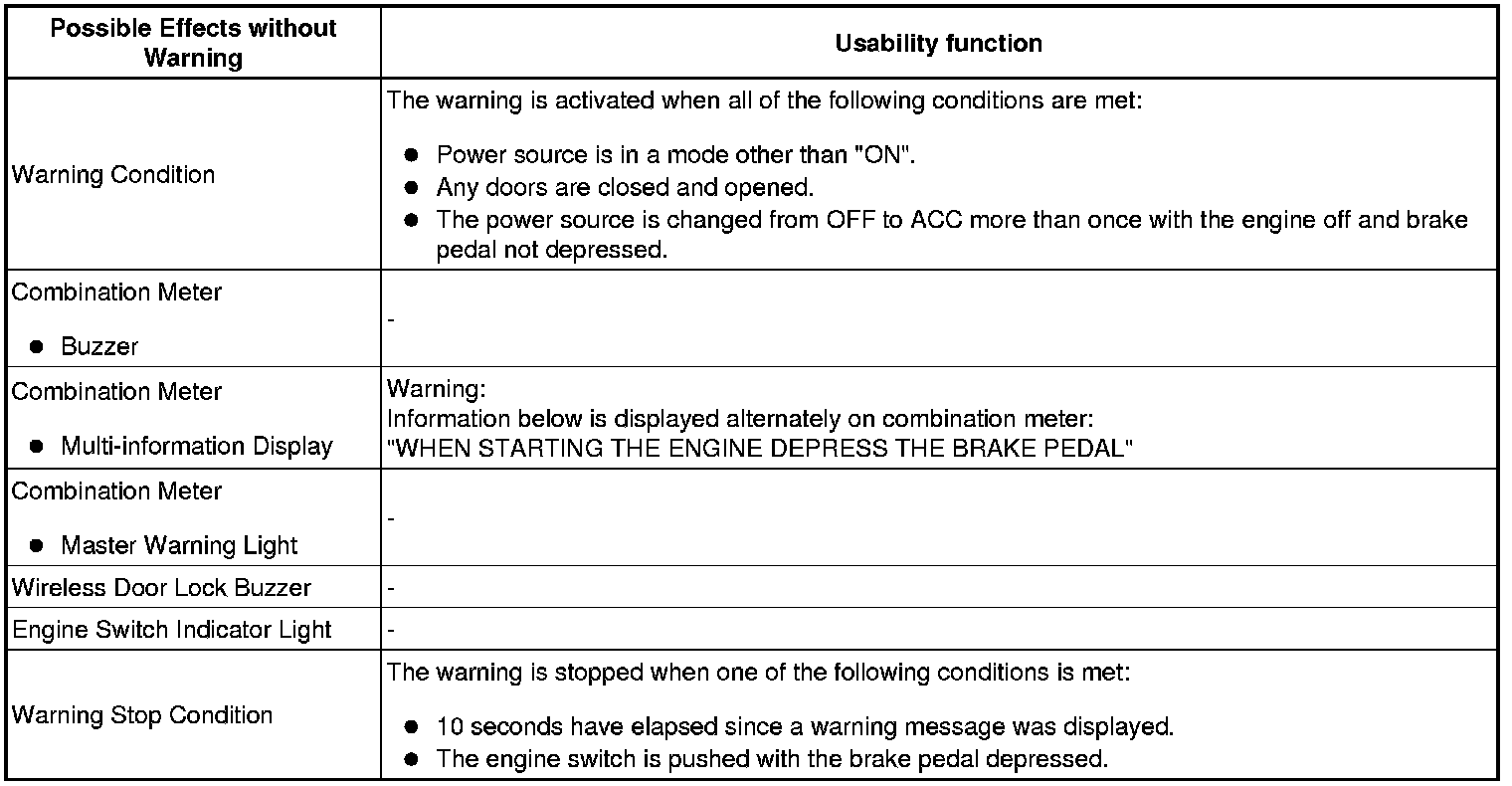

(n) Situation: M
A warning message appears on the meter when the driver does not follow the proper procedure to start the vehicle.
In this situation, the following control is performed:
14. BATTERY SAVING
(a) Vehicle Battery Saving Function
In the smart access system with push-button start, signals are emitted outside of the vehicle at a prescribed interval (0.25 seconds) when the doors are locked. Therefore, the vehicle battery could be drained if the vehicle remains parked for a long time. For this reason, the controls listed below are carried out:
Reinstatement Conditions
* A wireless door lock control signal (lock, unlock) is input and the ID code matches.
* A user carries the electrical key and pushes a lock switch on an outside door handle.
* A door is locked or unlocked by the mechanical key.

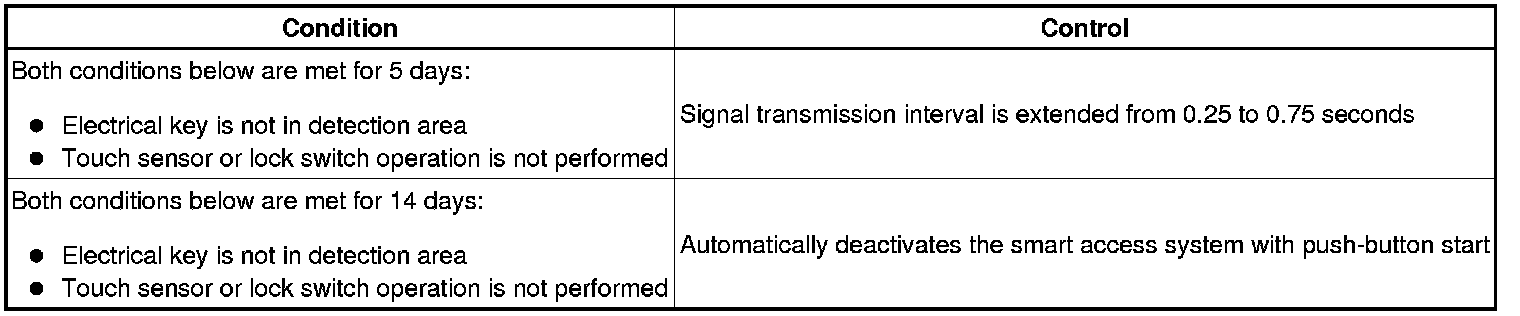

(b) Electrical Key Battery and Vehicle Battery Saving Function
In the smart access system with push-button start, if the electrical key is constantly located within the vehicle exterior detection area of the doors, the system maintains periodic communication with the electrical key. Therefore, if the vehicle remains parked in that state for a long time, the electrical key battery and the vehicle battery could be drained. For this reason, if this state continues longer than 10 minutes, the smart access system with push-button start automatically becomes deactivated.
Reinstatement Conditions
* A wireless door lock control signal (lock, unlock) is input and the ID code matches.
* A user carries the electrical key and pushes a lock switch on an outside door handle.
* A door is locked or unlocked by the mechanical key.
