Engine Immobilizer System

ENGINE IMMOBILIZER: ENGINE IMMOBILIZER SYSTEM: DATA LIST / ACTIVE TEST

1. READ DATA LIST

HINT
Using Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful as intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Smart Access / Data List.

(e) Read the Data List according to the display on the tester.

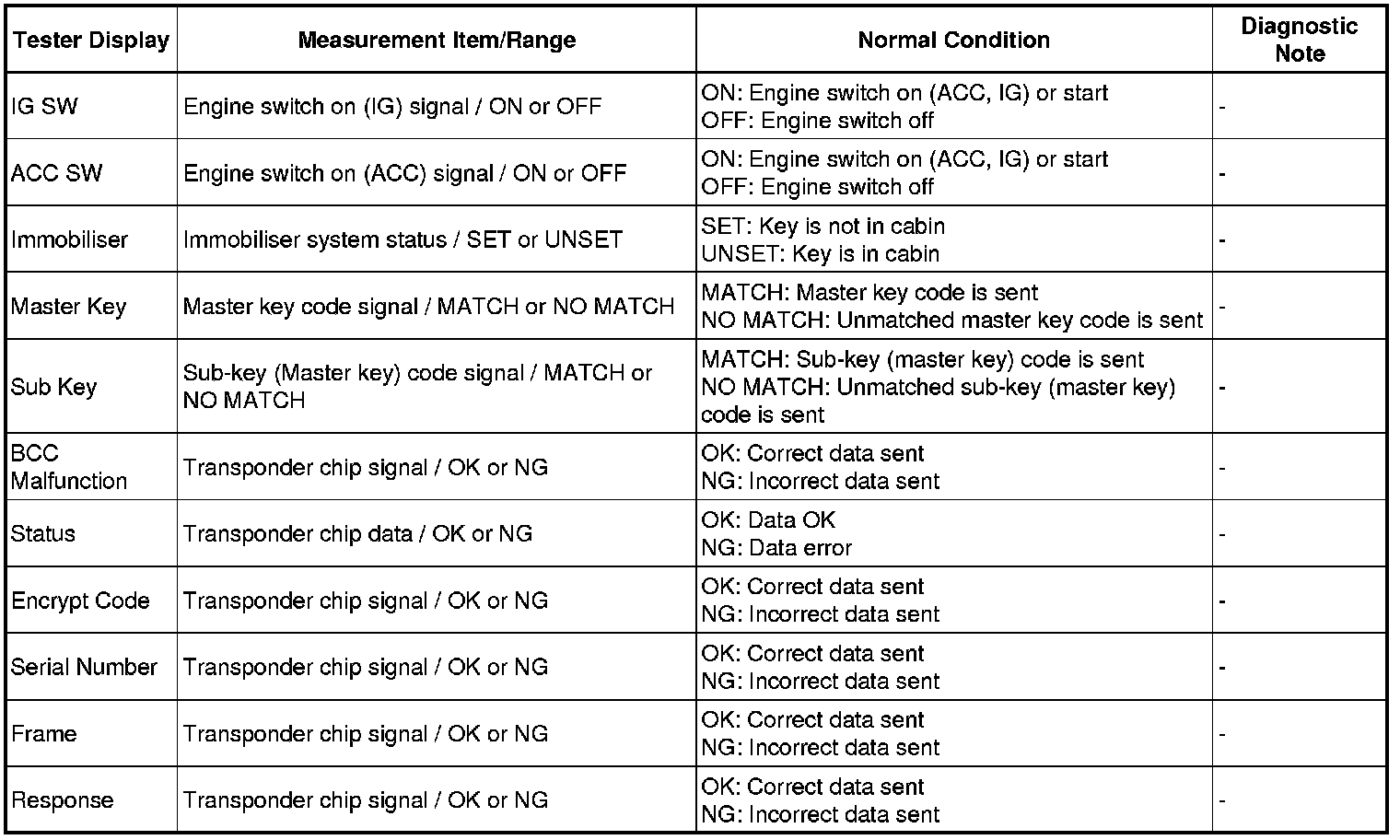

Smart Access:





2. PERFORM ACTIVE TEST

HINT
Performing Techstream Active Test allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Data List can be displayed during the Active Test.

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Smart Access / Active Test.

(e) Perform the Active Test according to the display on the tester.

Smart Access:
