Satellite Radio Broadcast Cannot Be Selected Or After Selecting Broadcast, Broadcast Cannot Be Added Into Memory

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System): Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory
- Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory

INSPECTION PROCEDURE

NOTICE:
* Some satellite radio broadcast require payment. A contract must be made between a satellite radio company and the user. If the contract expires, the broadcast will not be able to be listened to or viewed.
* After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, the XM Radio ID registration is necessary.

PROCEDURE

1. CHECK RADIO RECEIVER ASSEMBLY

(a) Check radio condition.

Result:





B -- CHECK RADIO RECEIVER ASSEMBLY

A -- ADD PRESET CHANNEL INTO MEMORY AGAIN

2. CHECK RADIO RECEIVER ASSEMBLY

(a) Check the number of preset channels.

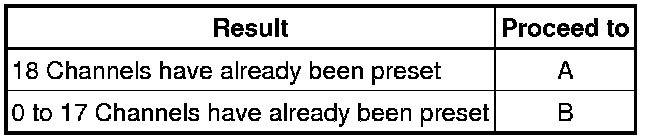

Result:





B -- CHECK BATTERY

A -- END (ONLY 18 CHANNELS CAN BE PRESET)

3. CHECK BATTERY

(a) Check if the battery was replaced.

OK:

Battery was not replaced.

NG -- ADD PRESET CHANNEL INTO MEMORY AGAIN

OK -- REPLACE RADIO RECEIVER ASSEMBLY Removal

4. ADD PRESET CHANNEL INTO MEMORY AGAIN

(a) Check if the preset channels that have been cleared can be added into memory again.

OK:

Preset channels can be added into memory.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

OK -- END
