Remote Control Mirror

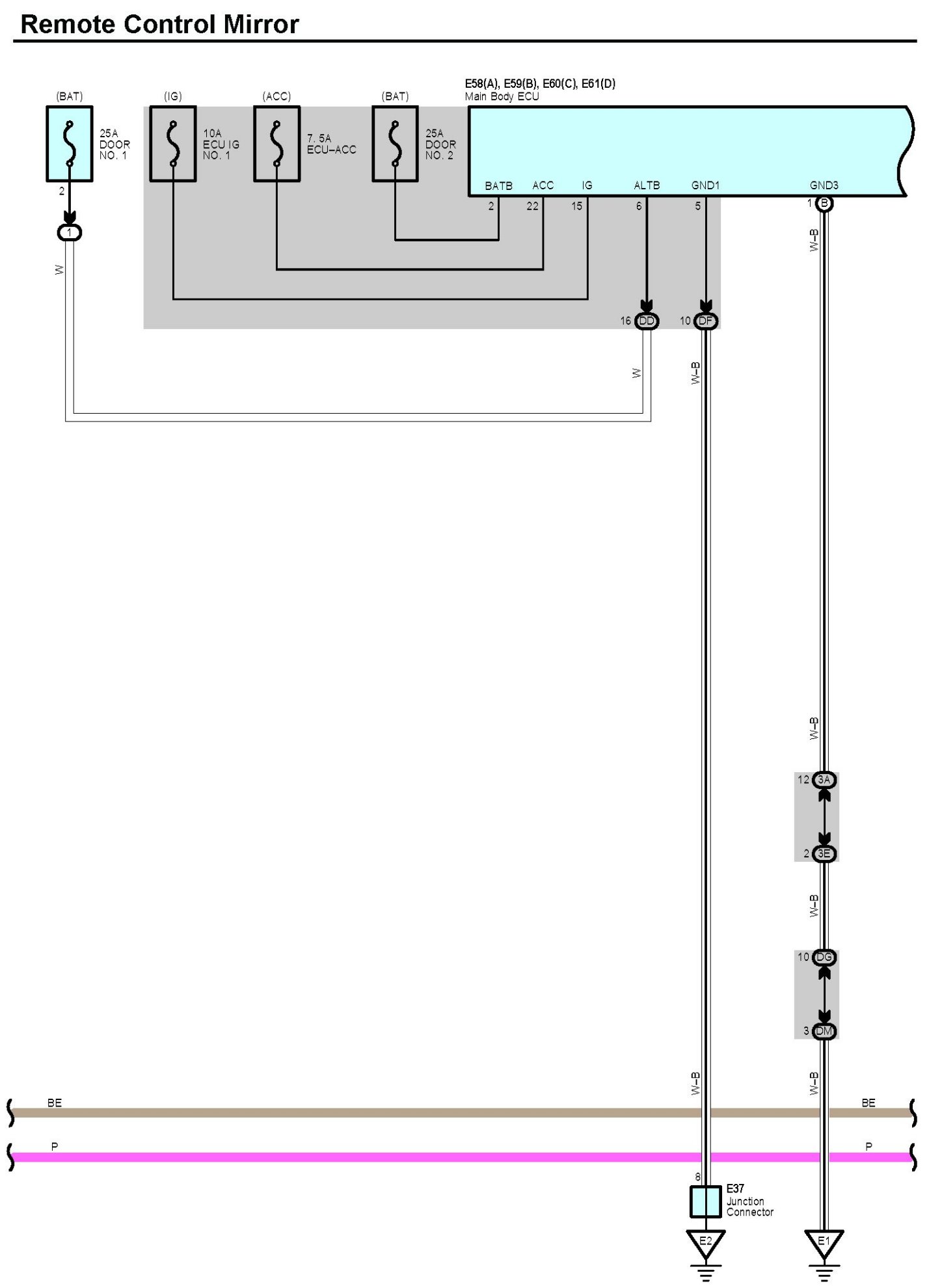

Remote Control Mirror Part 1:

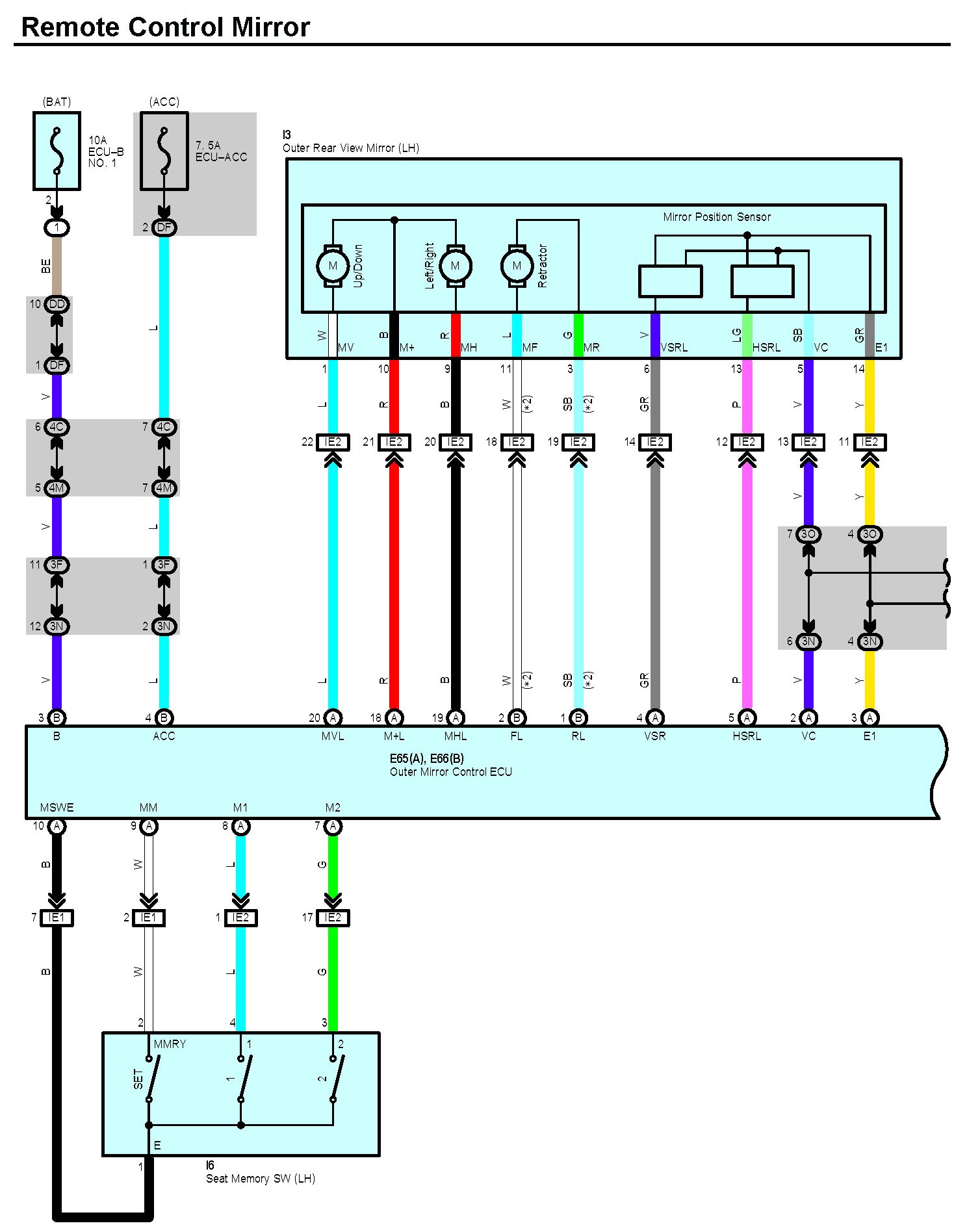

Remote Control Mirror Part 2:

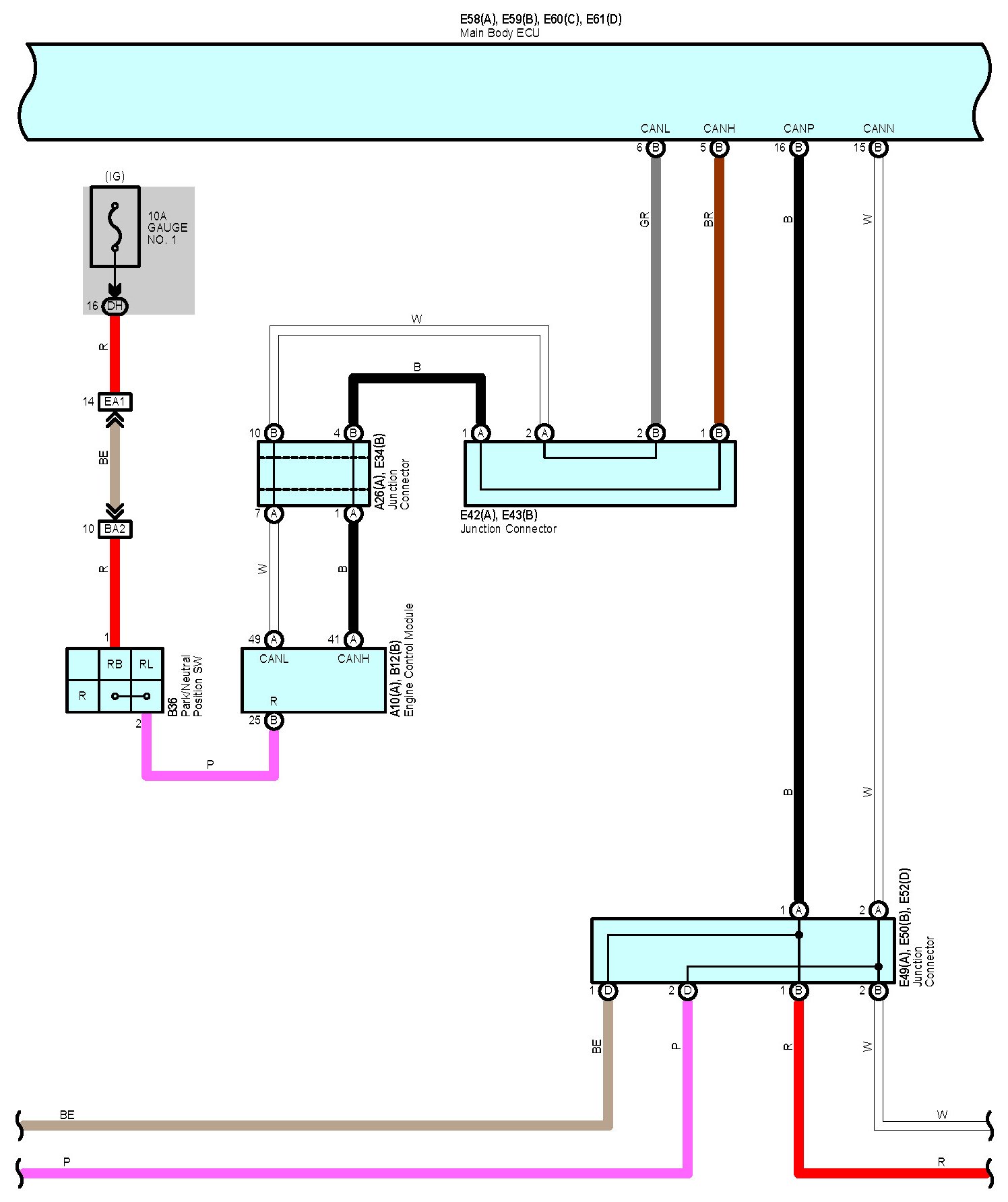

Remote Control Mirror Part 3:

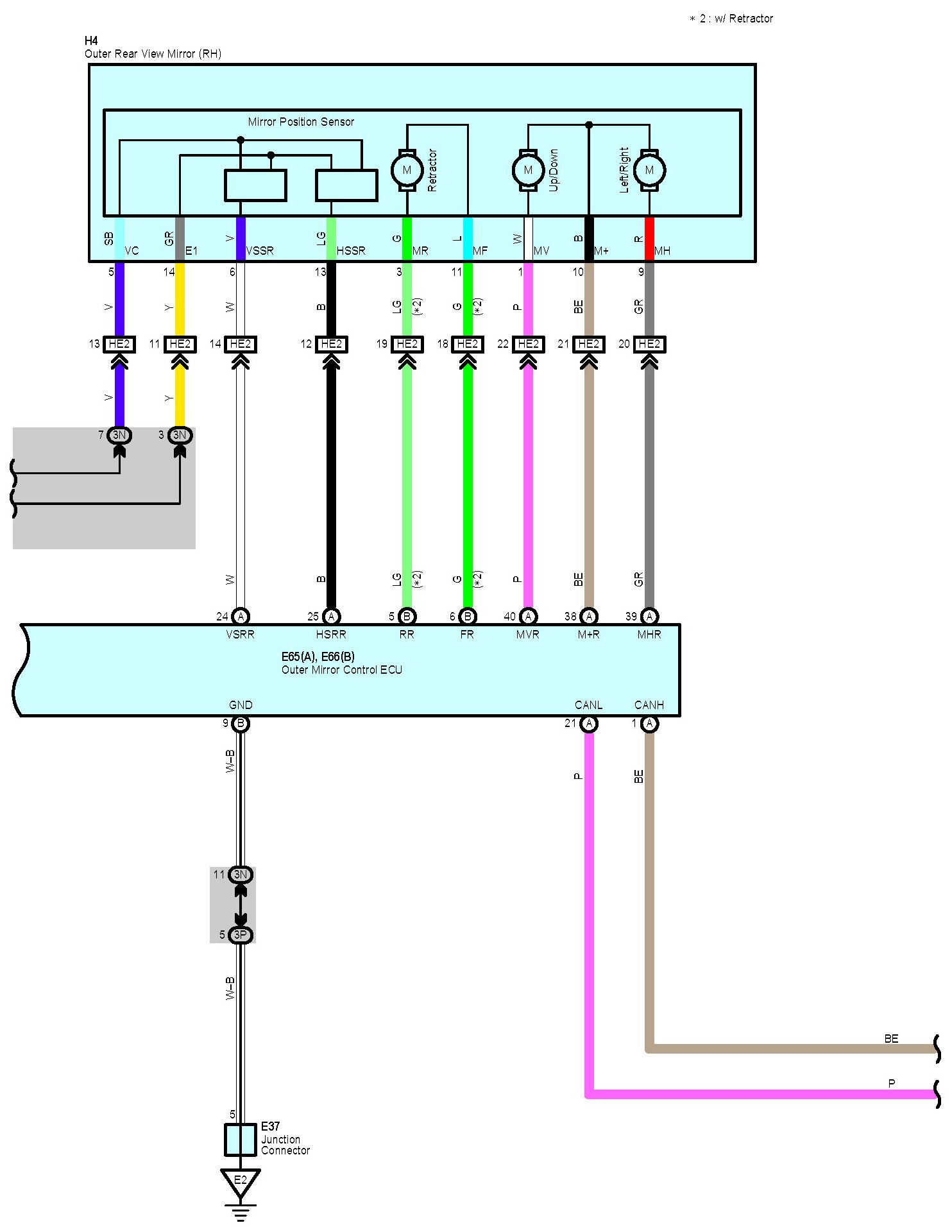

Remote Control Mirror Part 4:

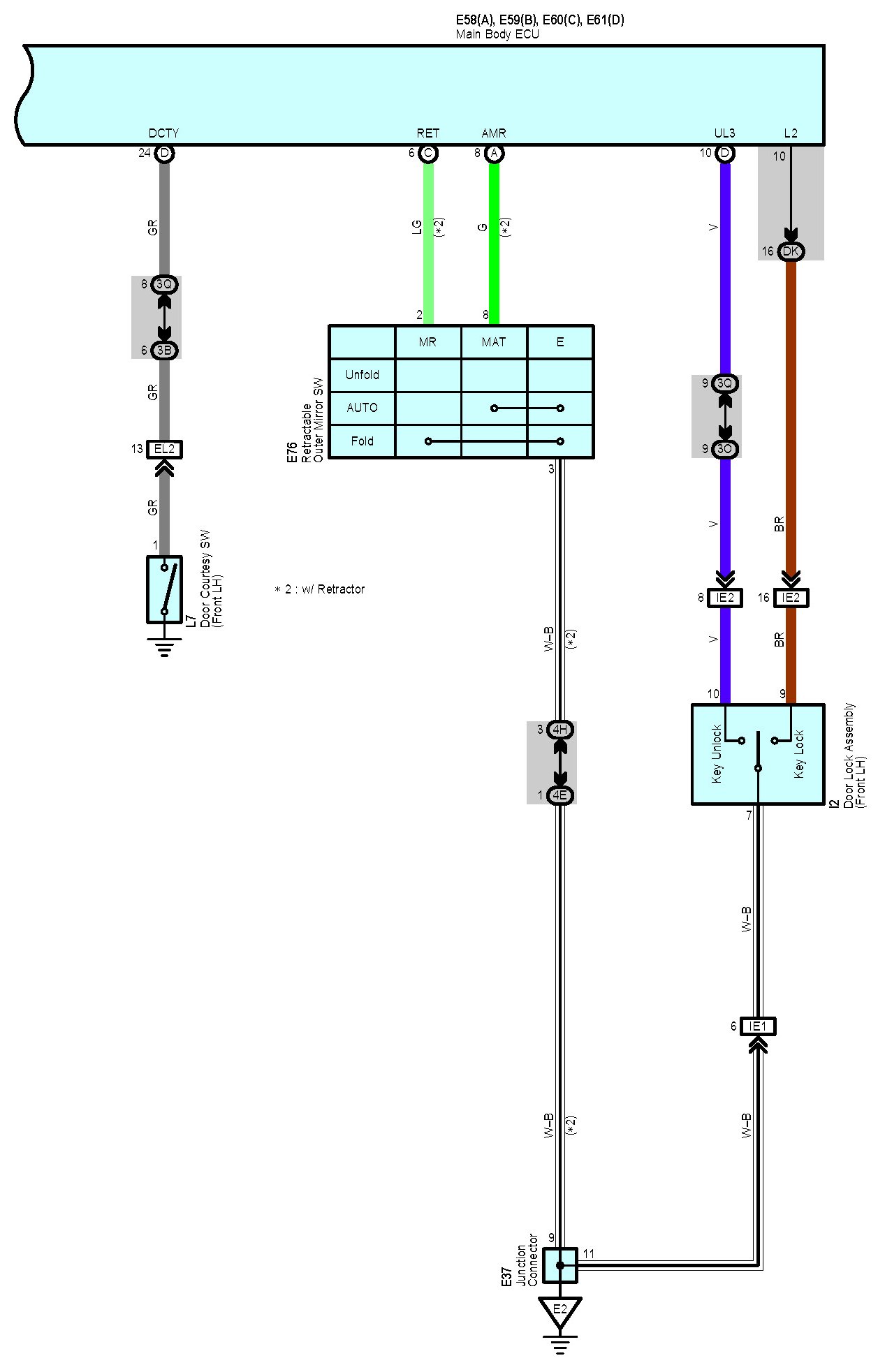

Remote Control Mirror Part 5:

Remote Control Mirror Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
