Cruise Control

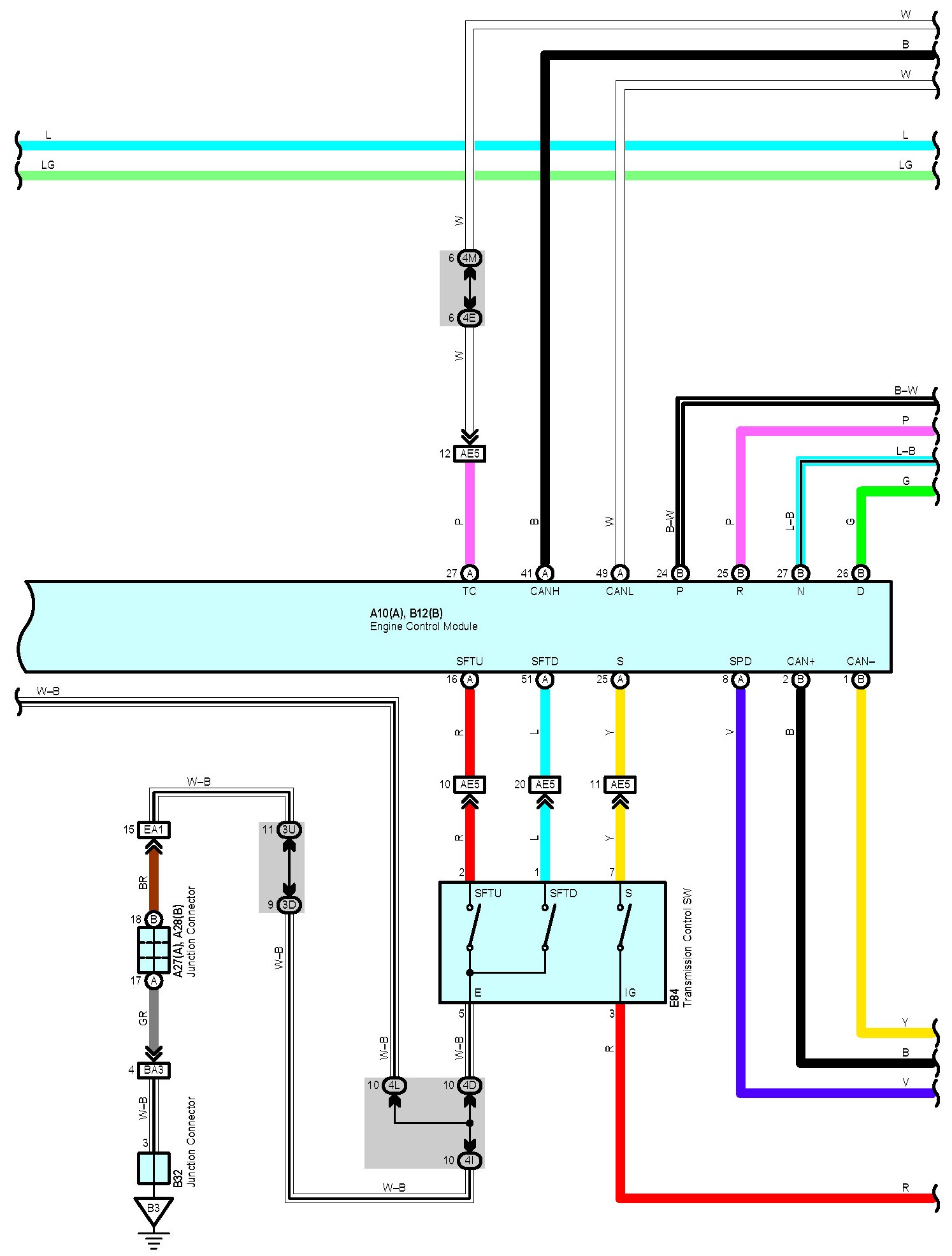

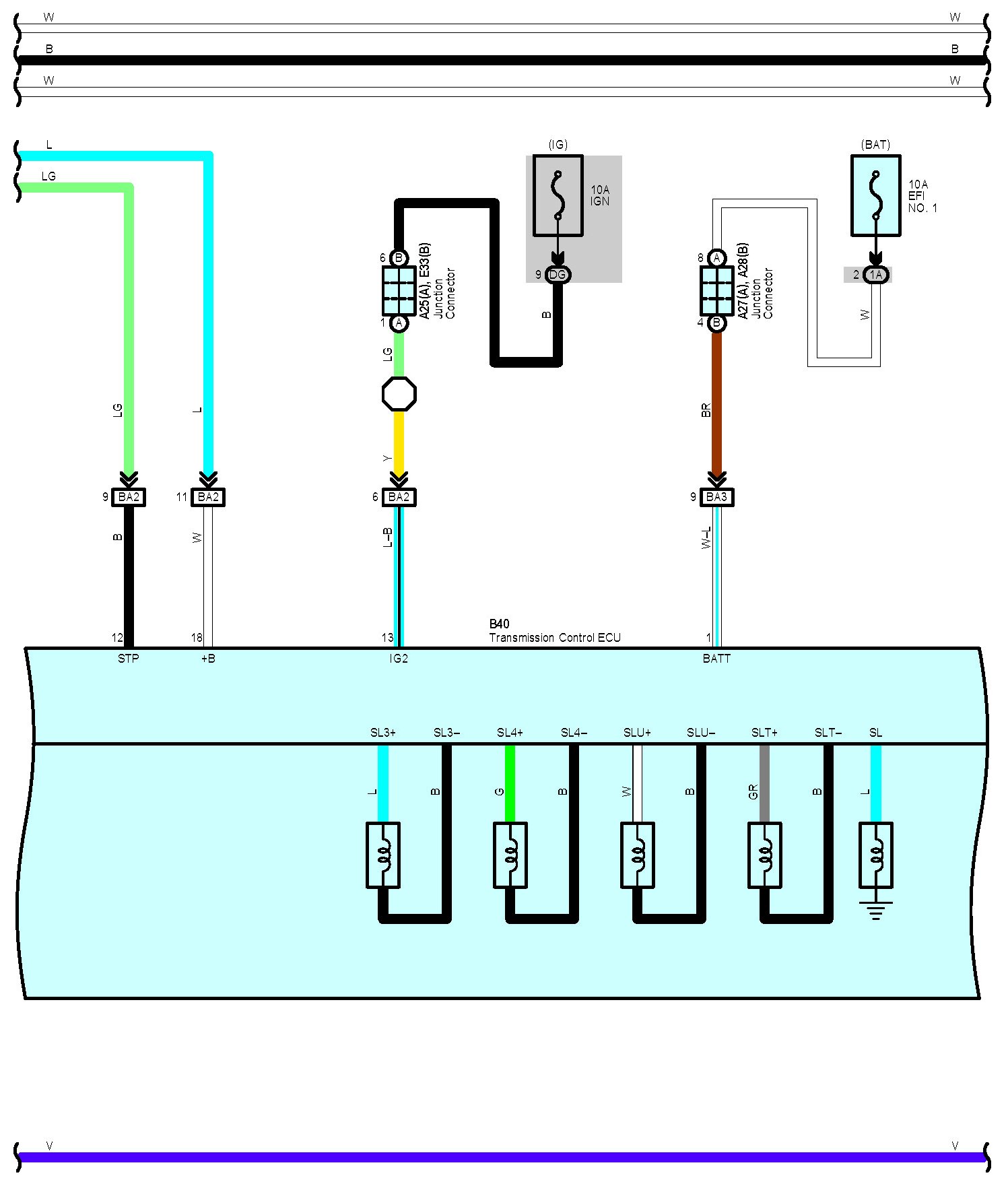

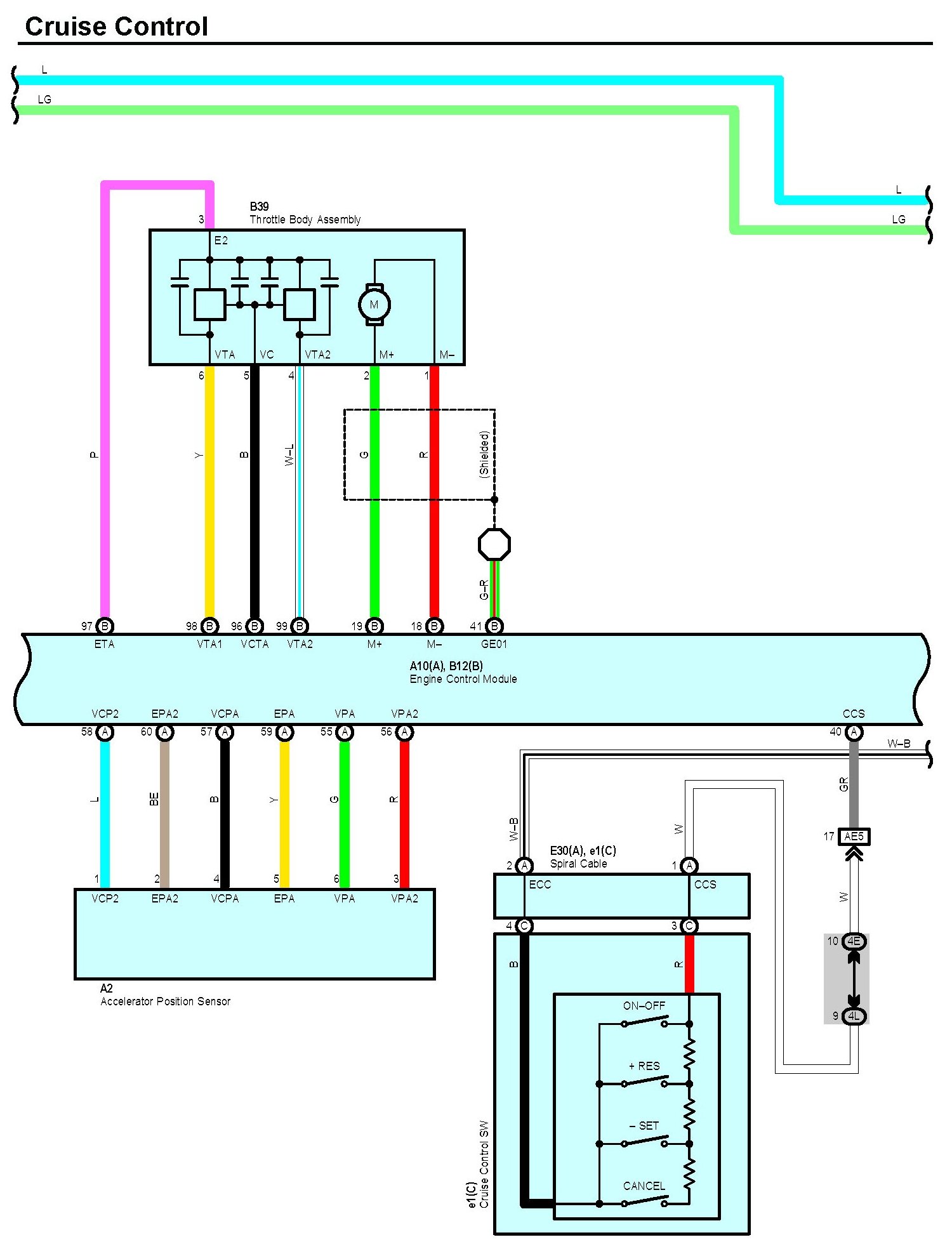

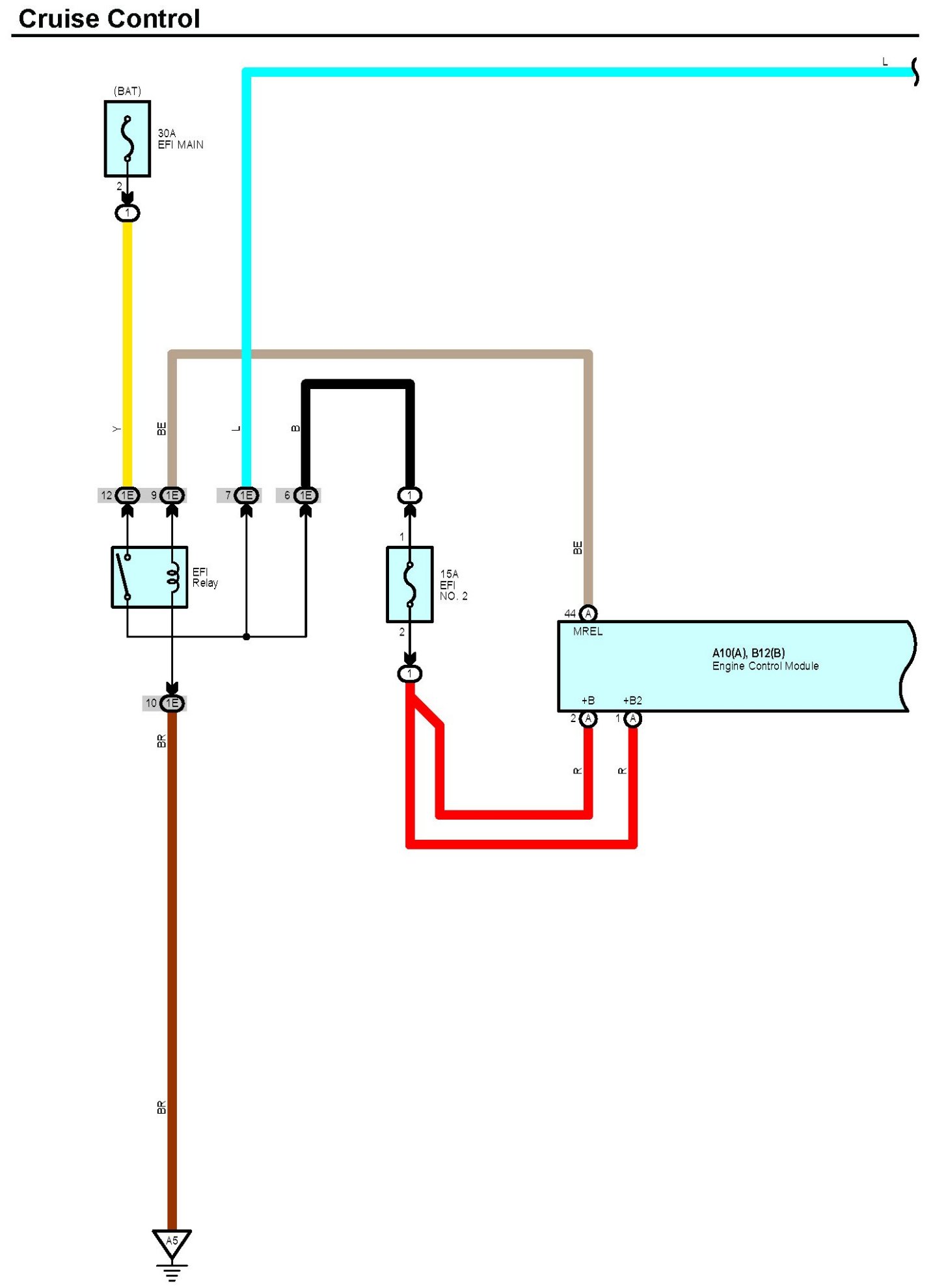

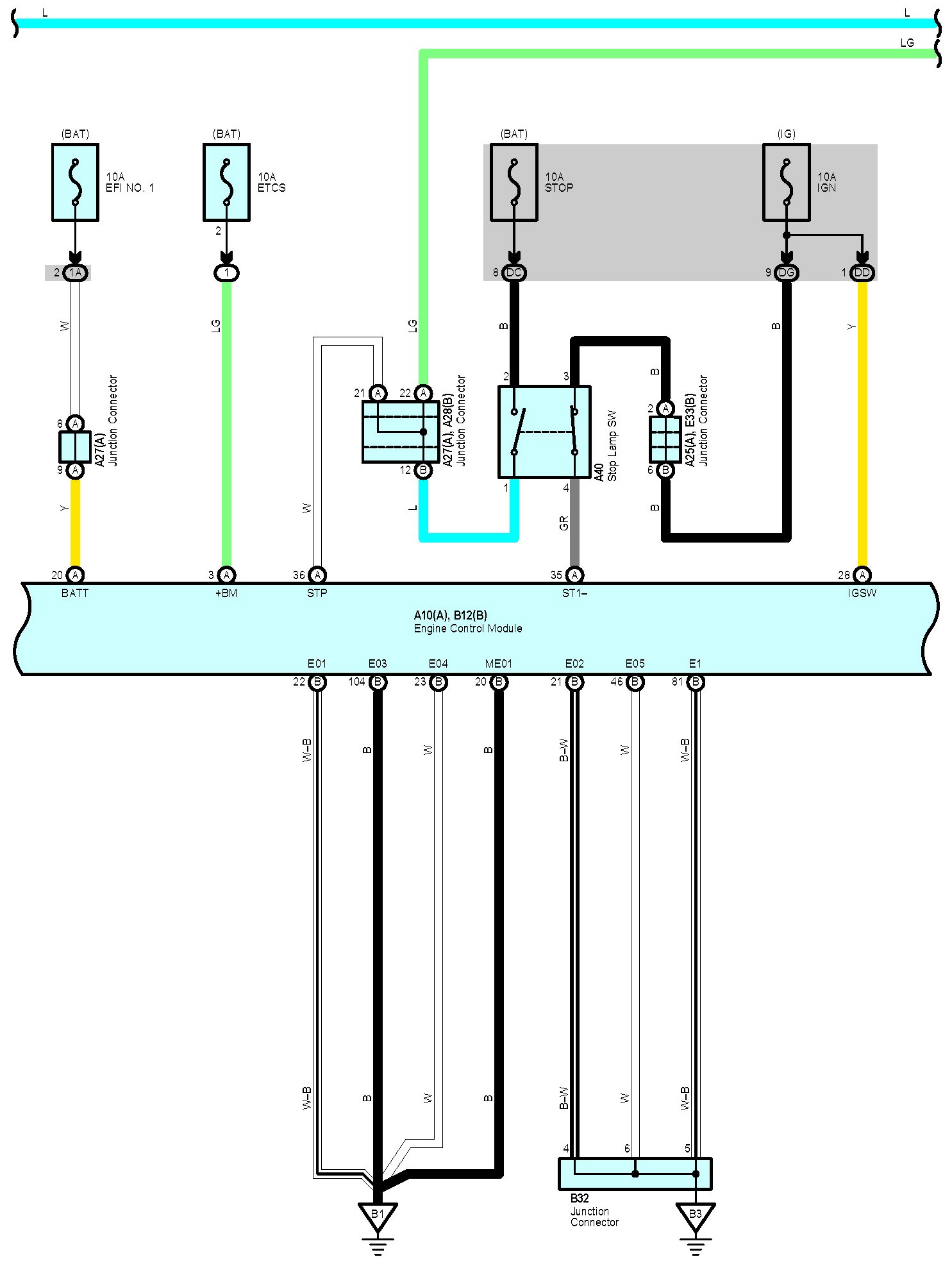

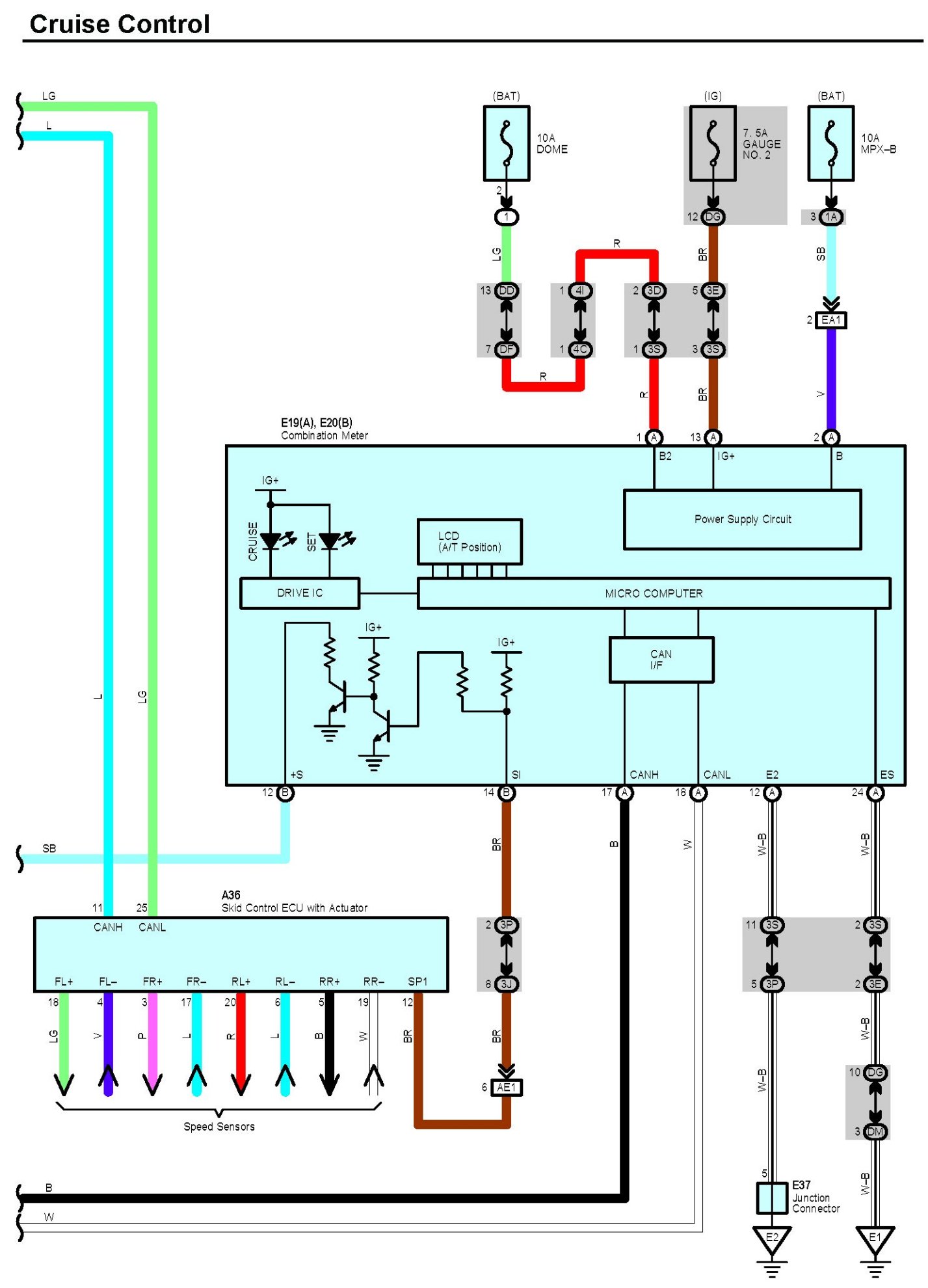

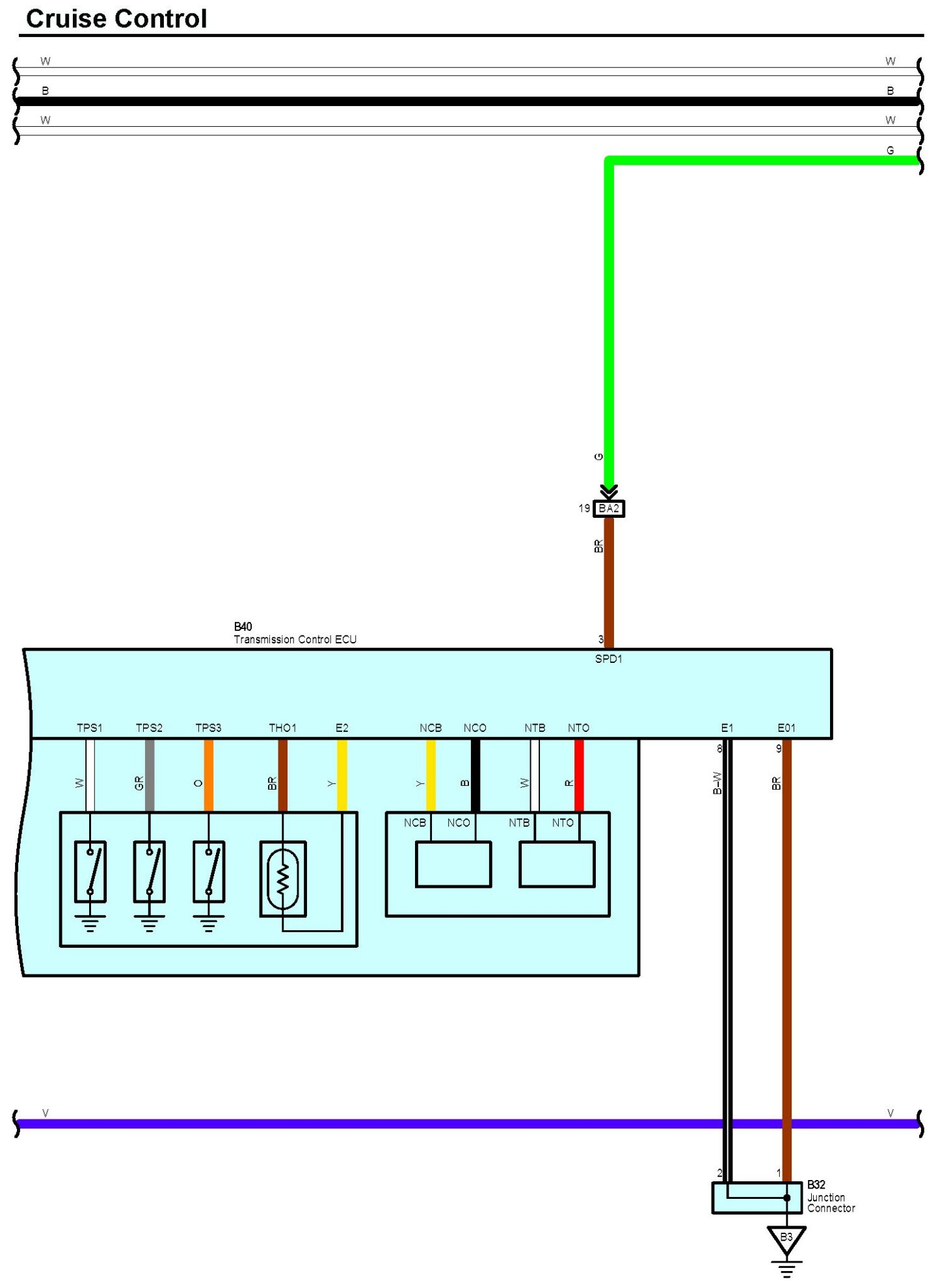

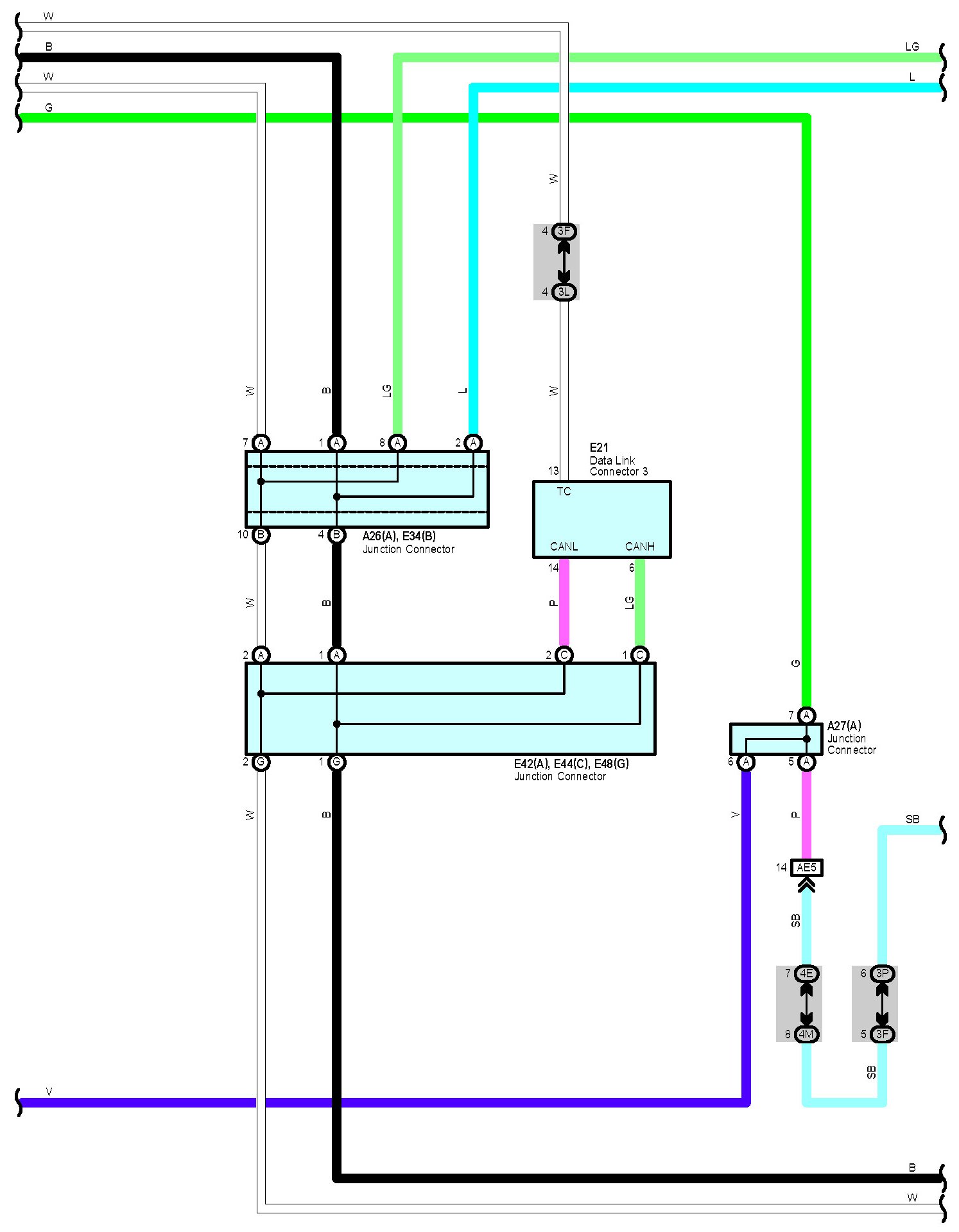

Cruise Control Part 1:

Cruise Control Part 2:

Cruise Control Part 3:

Cruise Control Part 4:

Cruise Control Part 5:

Cruise Control Part 6:

Cruise Control Part 7:

Cruise Control Part 8:

Cruise Control Part 9:

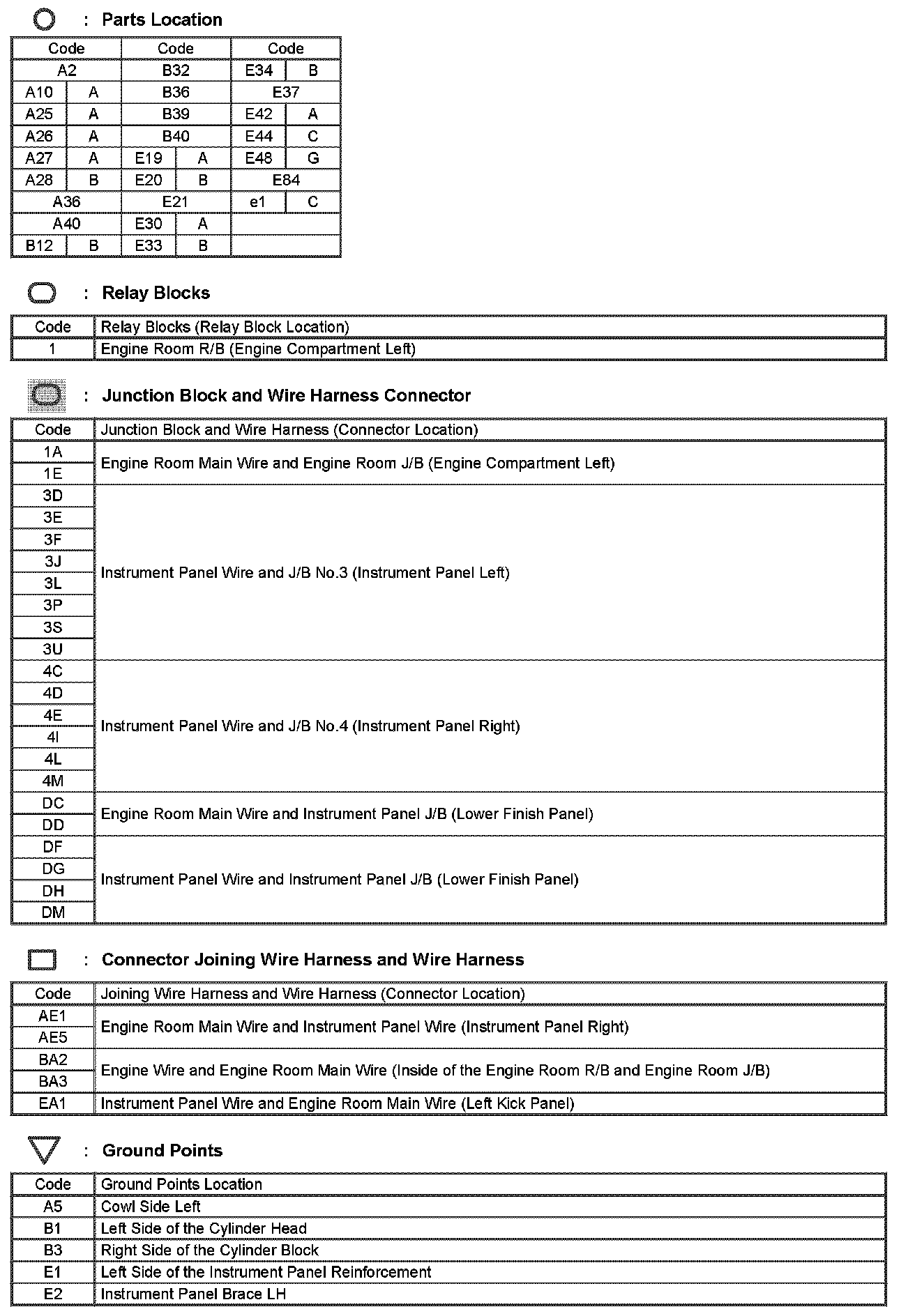

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
