Instrument Cluster / Carrier

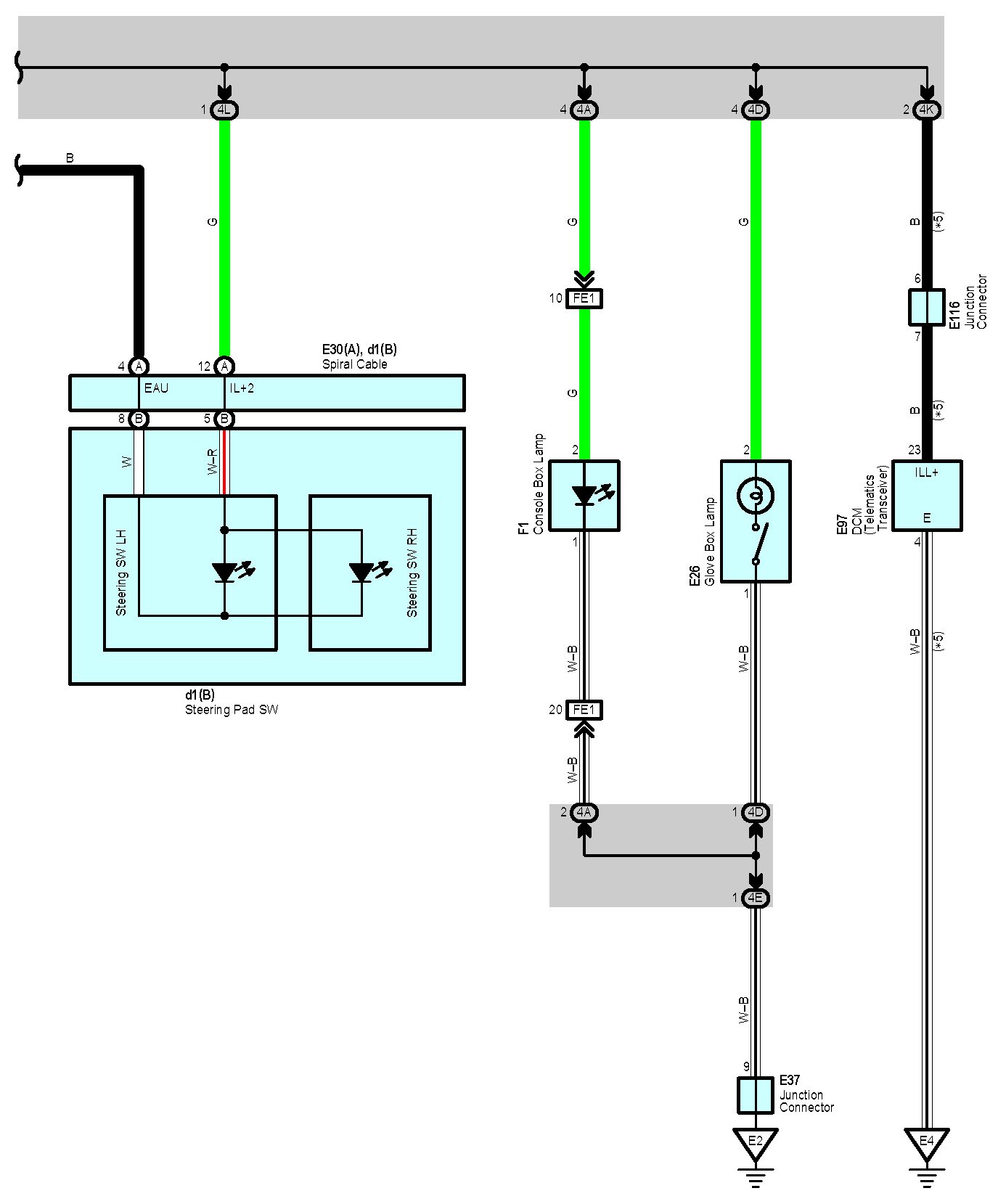

Illumination Part 1:

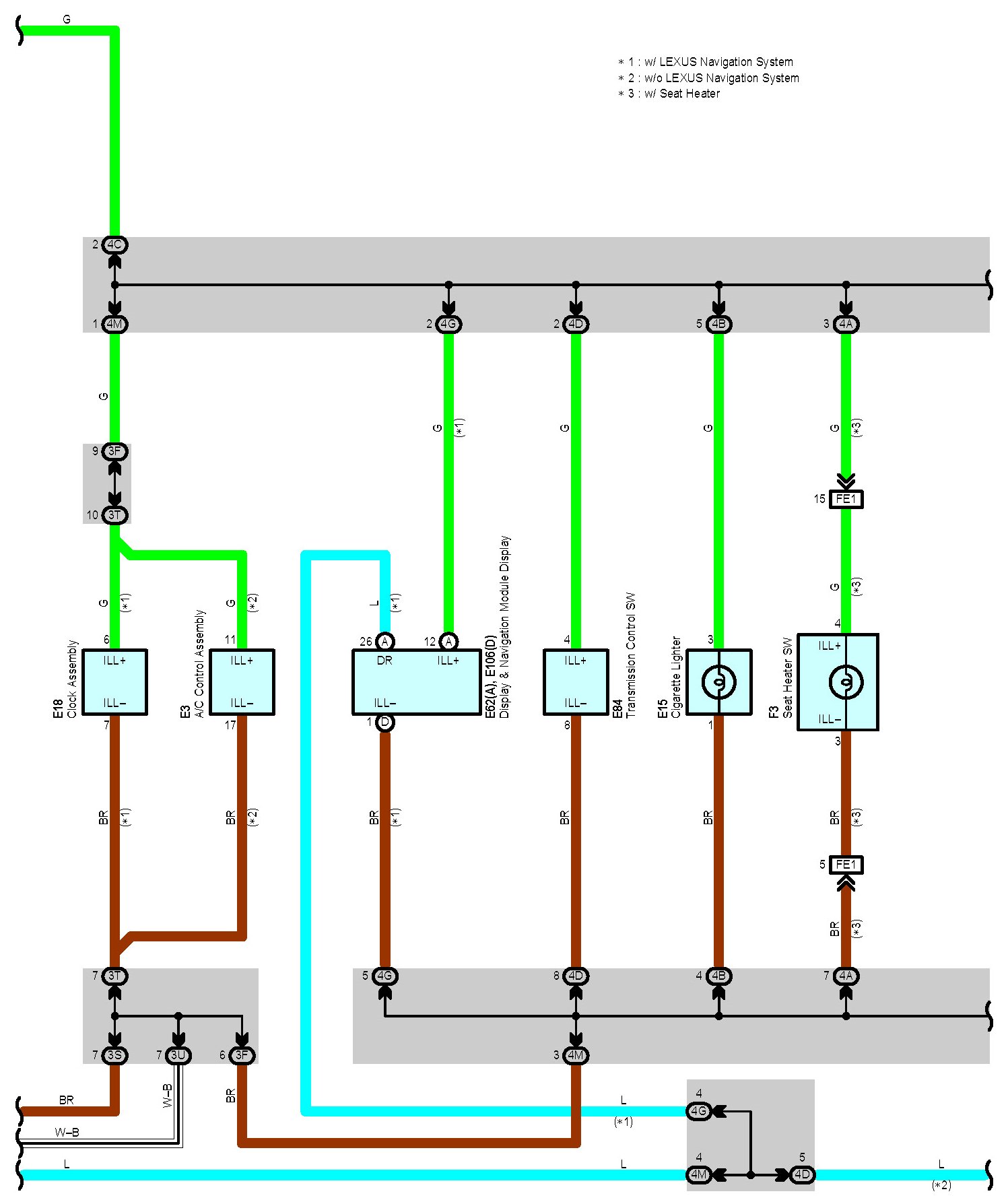

Illumination Part 2:

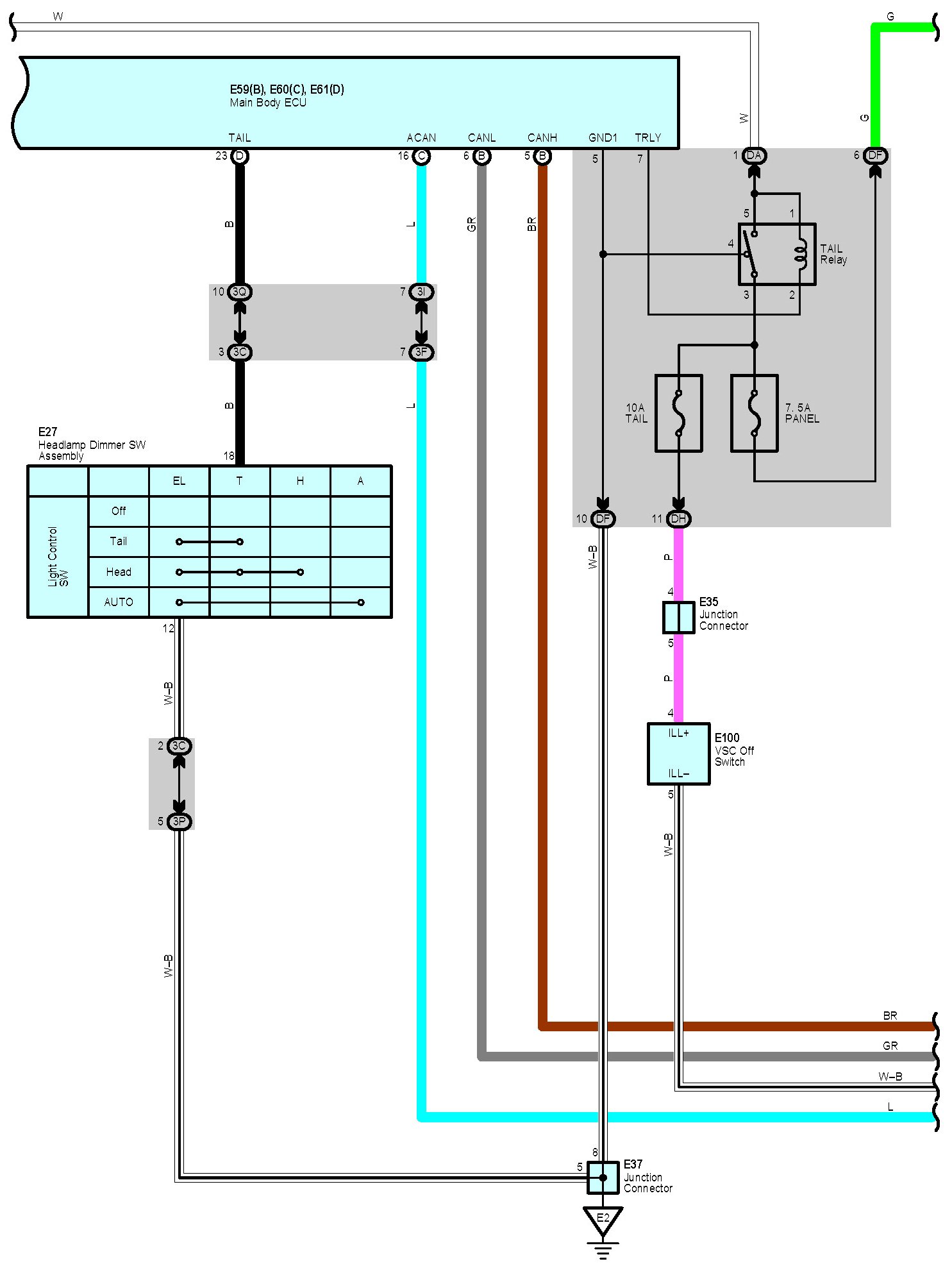

Illumination Part 3:

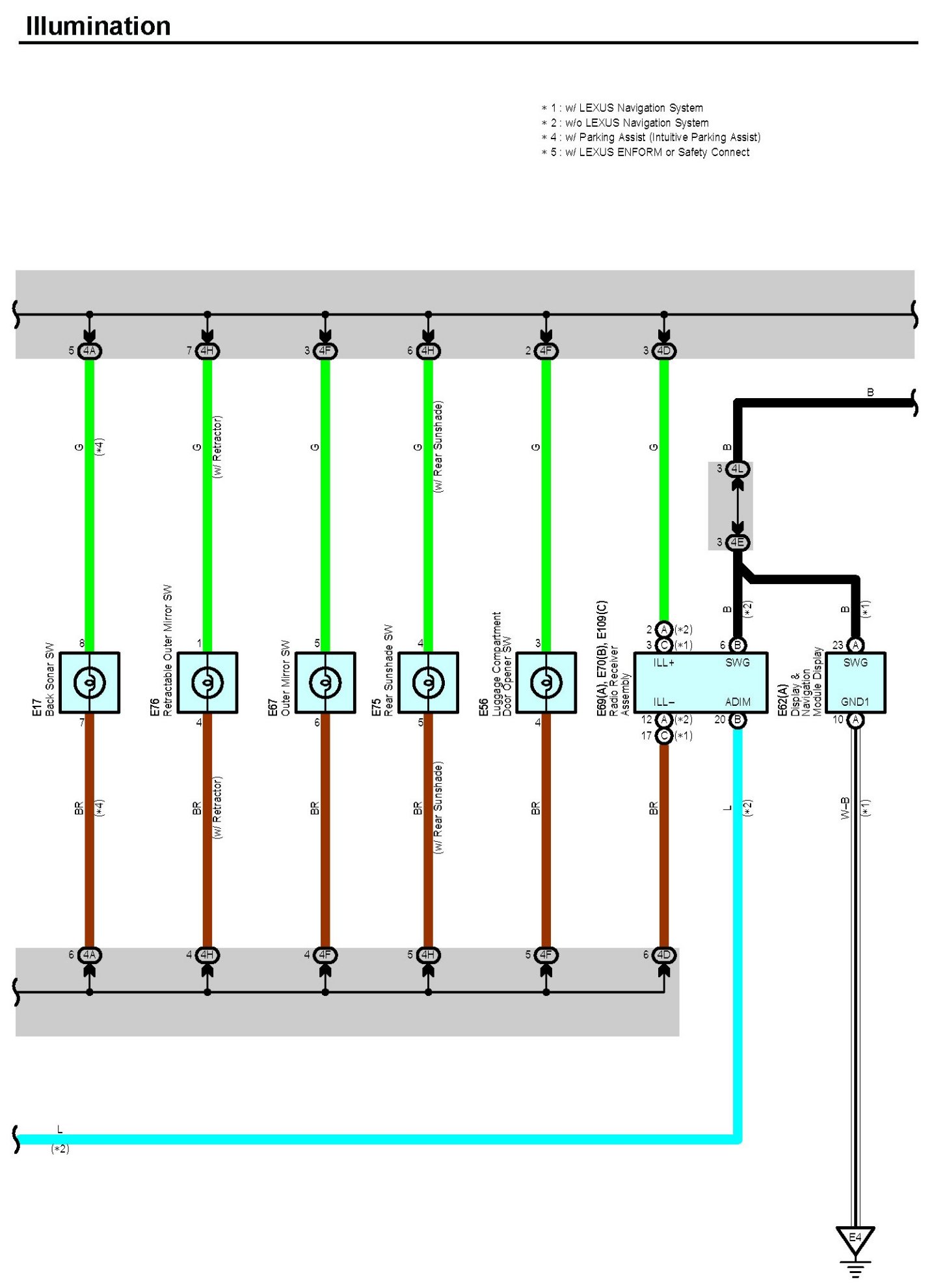

Illumination Part 4:

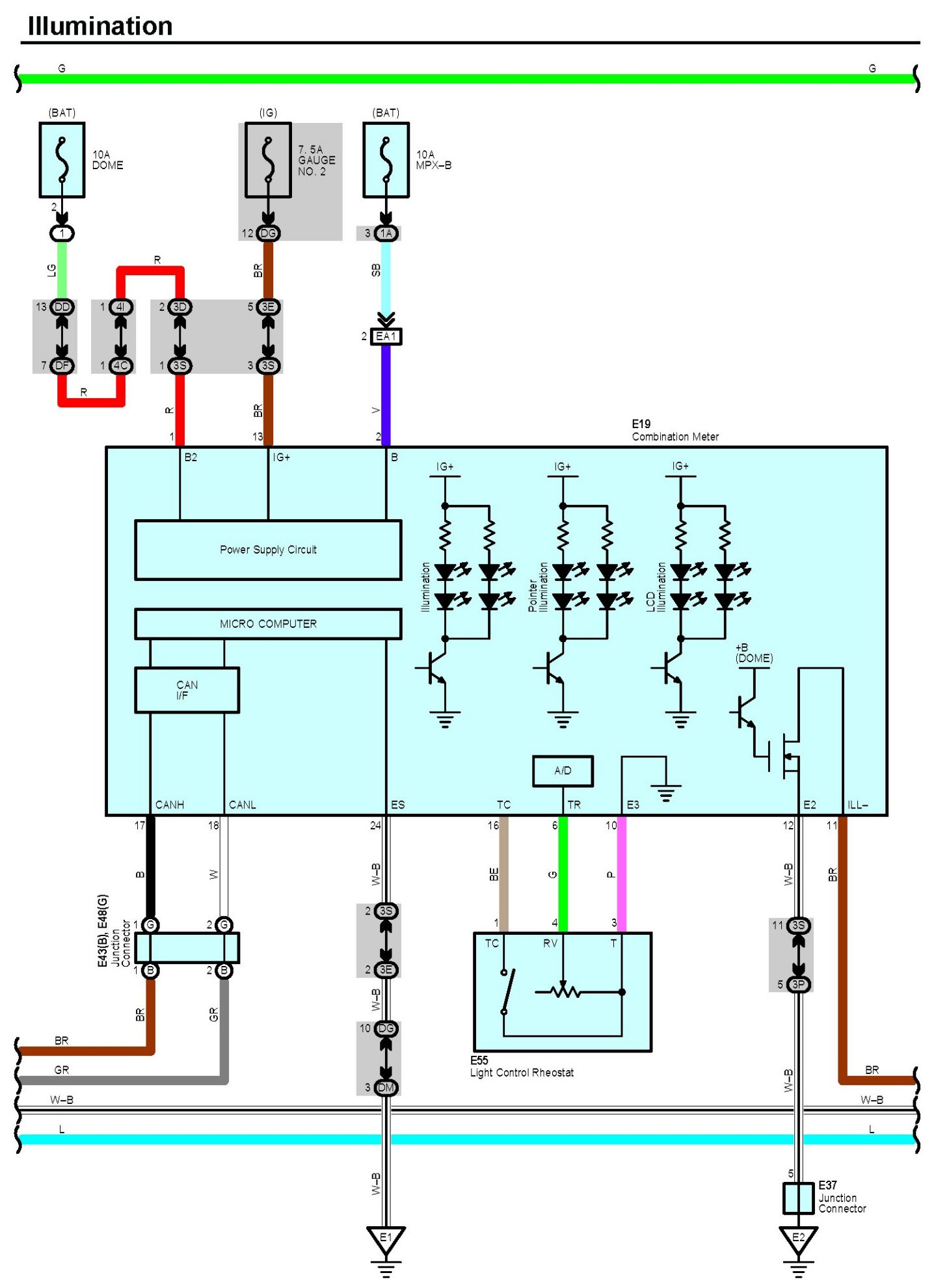

Illumination Part 6:

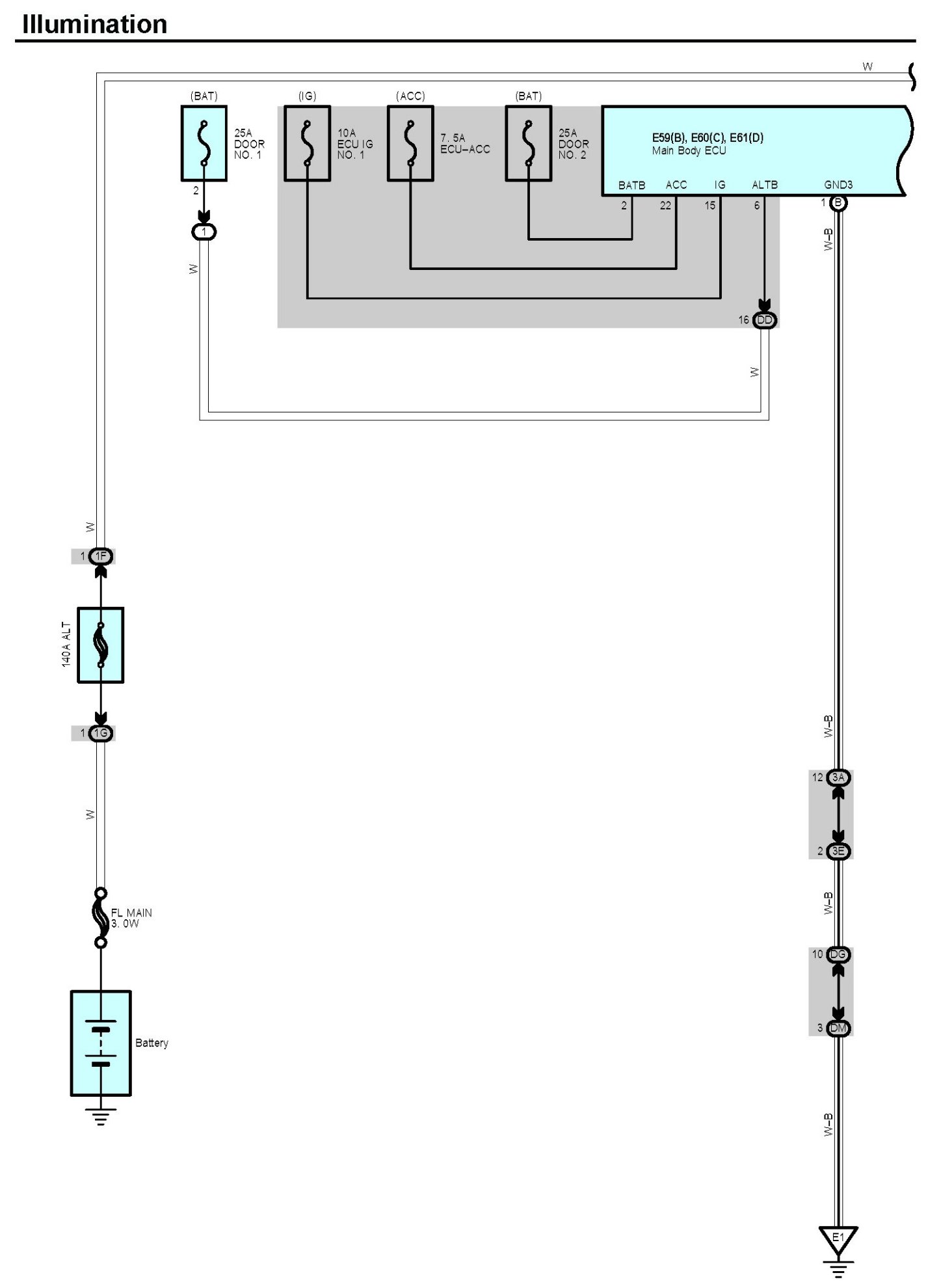

Illumination Part 7:

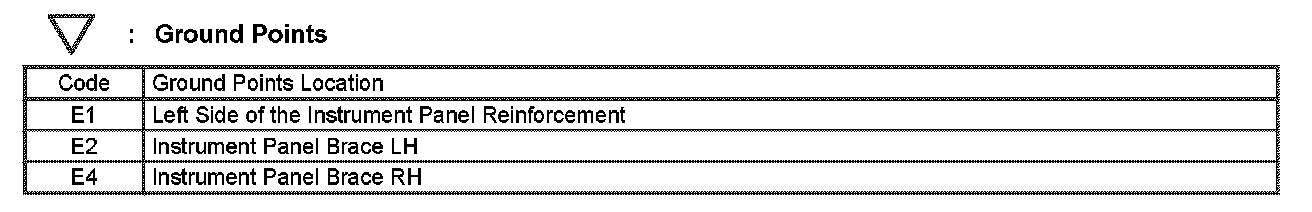

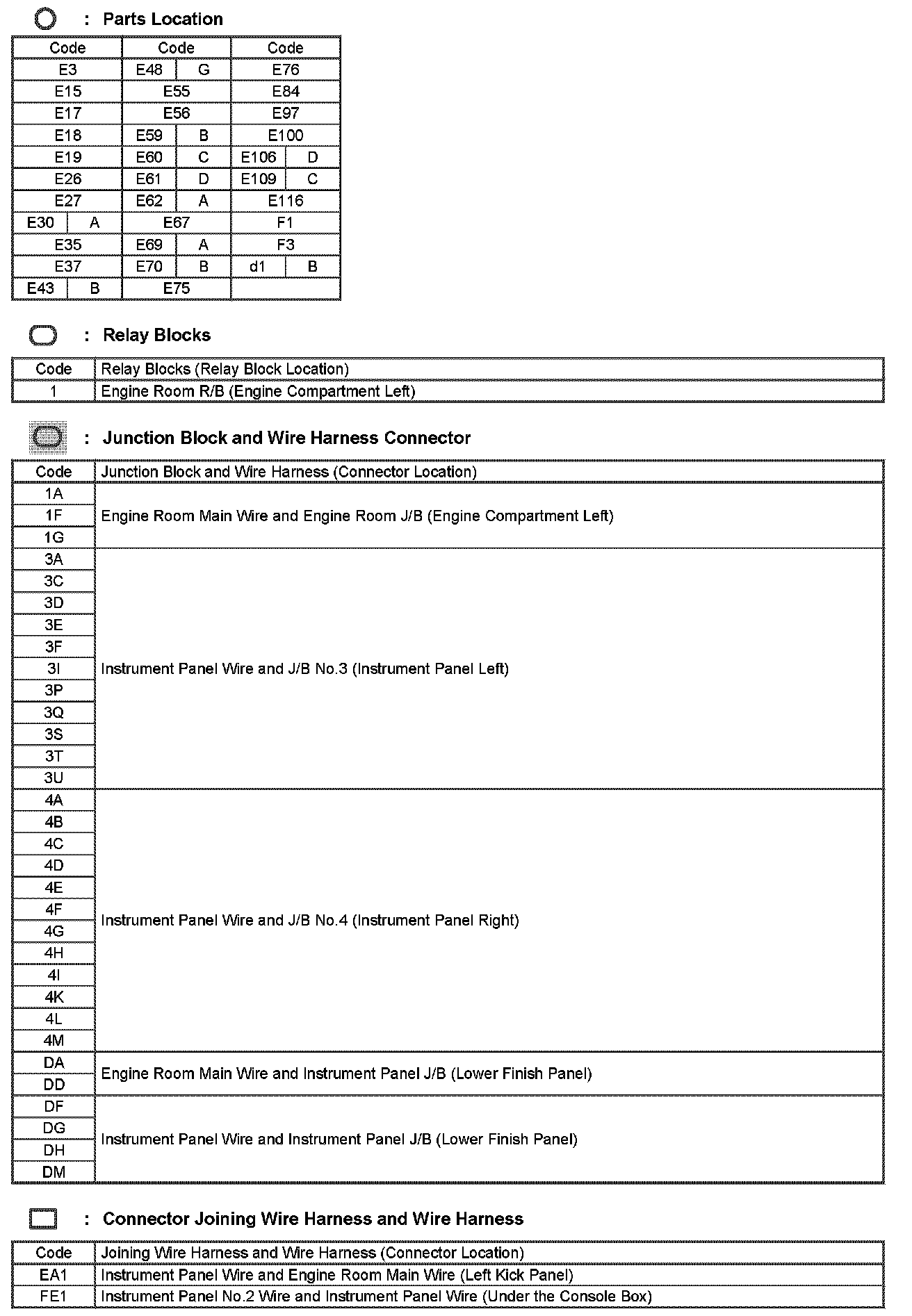

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
