Removal

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: REMOVAL

1. REMOVE ENGINE UNDER COVER LH

2. REMOVE ENGINE UNDER COVER RH

3. DRAIN ENGINE COOLANT Testing and Inspection

4. REMOVE COOL AIR INTAKE DUCT SEAL Removal

5. REMOVE ENGINE ROOM SIDE COVER LH Removal

6. REMOVE ENGINE ROOM SIDE COVER RH Removal

7. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

8. REMOVE AIR CLEANER INLET ASSEMBLY Removal

9. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal

10. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal

11. REMOVE NO. 1 AIR CLEANER INLET Removal

12. REMOVE FRONT SUSPENSION UPPER CENTER BRACE Removal

13. REMOVE INTAKE AIR SURGE TANK ASSEMBLY Removal

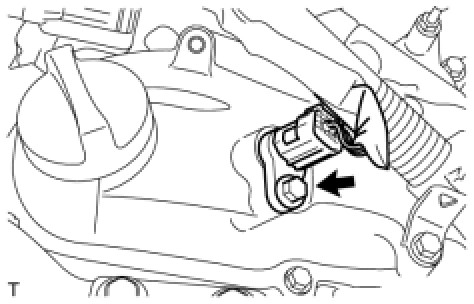

14. REMOVE VVT SENSOR (for Bank 1 Intake Side)

(a) Disconnect the VVT sensor connector.





(b) Remove the bolt and VVT sensor.

15. REMOVE VVT SENSOR (for Bank 1 Exhaust Side)

(a) Disconnect the VVT sensor connector.





(b) Remove the bolt and VVT sensor.

16. REMOVE VVT SENSOR (for Bank 2 Intake Side)

(a) Disconnect the VVT sensor connector.





(b) Remove the bolt and VVT sensor.

17. REMOVE VVT SENSOR (for Bank 2 Exhaust Side)

(a) Disconnect the VVT sensor connector.





(b) Remove the bolt and VVT sensor.
