Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2011
>>
GX 460 V8-4.6L (1UR-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Navigation Display
>>
Service and Repair
>>
Components
Components

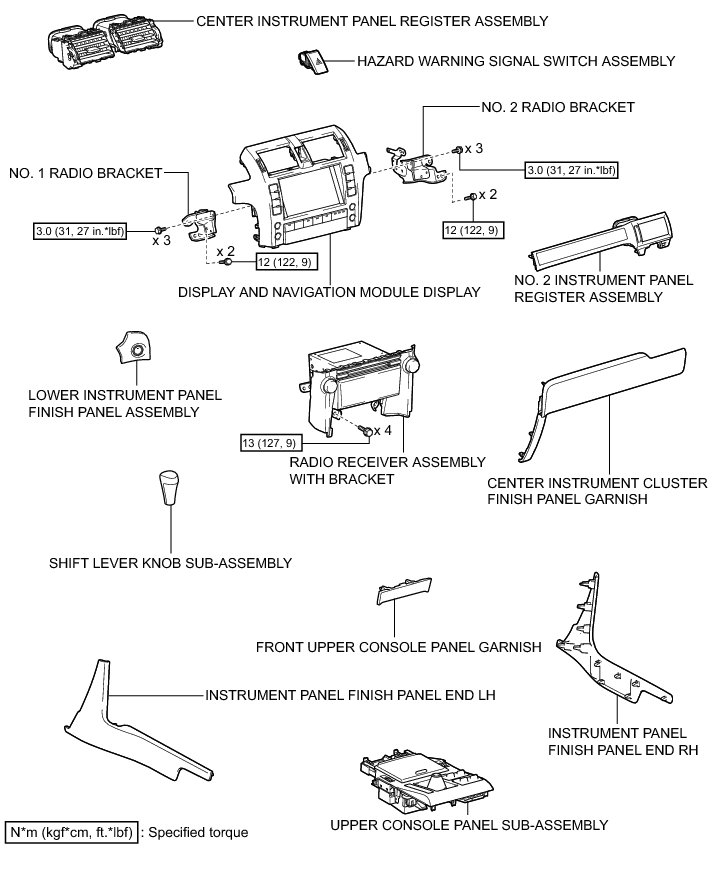

NAVIGATION / MULTI INFO DISPLAY: DISPLAY AND NAVIGATION ASSEMBLY: COMPONENTS
