Removal





SUPPLEMENTAL RESTRAINT SYSTEMS: CENTER AIRBAG SENSOR ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

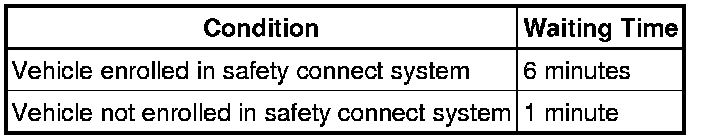

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR CONSOLE BOX ASSEMBLY

(a) w/o Refrigerated Cool Box:

(1) Remove the console box assembly Removal.

(b) w/ Refrigerated Cool Box:

(1) Remove the console box assembly Removal.

3. REMOVE CENTER AIRBAG SENSOR ASSEMBLY

(a) Disconnect the connector.





(b) Remove the 3 bolts and airbag sensor.
