Removal





PRE-COLLISION: SEAT BELT CONTROL ECU: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

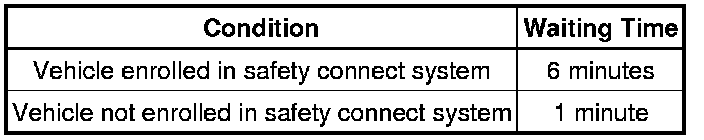

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

4. REMOVE DOOR SCUFF PLATE ASSEMBLY LH Removal

5. REMOVE COWL SIDE TRIM BOARD LH Removal

6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

7. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY Removal

8. REMOVE SEAT BELT CONTROL ECU

(a) Disconnect the 2 connectors.





(b) Remove the bolt and remove the seat belt control ECU.
