B2610

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: B2610: Tilt Position Sensor or Tilt Motor Circuit Malfunction
B2610 - Tilt Position Sensor or Tilt Motor Circuit Malfunction

DESCRIPTION

The tilt motor is operated by the power source voltage supplied from the multiplex tilt and telescopic ECU and makes the steering column tilt up and down. The tilt position sensor (Hall IC) in the tilt motor detects the tilt angle of the steering column and outputs a signal to the multiplex tilt and telescopic ECU based on that angle.





HINT

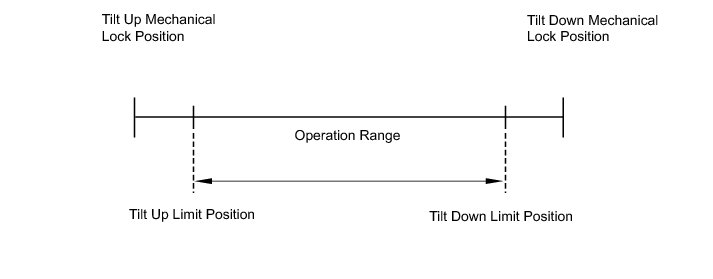

Limit positions can be confirmed on the Techstream.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

HINT
The wire harness between the multiplex tilt and telescopic ECU and tilt motor is provided with the steering column assembly.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (TILT OPERATION)

(a) Turn the power switch off.





(b) Connect the Techstream to the DLC3.

(c) Turn the power switch on (IG).

(d) Turn the Techstream on.

(e) Check that the steering wheel tilts up and down. Enter the following menus: Body Electrical / Tilt & Telescopic / Active Test.

Tilt & Telescopic





OK:

The steering wheel tilts up and down.

Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT
POSITION SENSOR)
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY)

(a) Disconnect the F109 multiplex tilt and telescopic ECU connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT MOTOR)

(a) Disconnect the F109 multiplex tilt and telescopic ECU connector.

(b) Disconnect the F110 tilt motor connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK TILT MOTOR

(a) Apply 12 V battery voltage to the tilt motor connector.





Then check the steering wheel tilt operation.

OK:





Text in Illustration





NG -- REPLACE STEERING COLUMN ASSEMBLY Removal

OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal

6. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - TILT
POSITION SENSOR)

(a) Disconnect the F109 multiplex tilt and telescopic ECU connector.

(b) Disconnect the F110 tilt motor connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY
GROUND)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

8. CHECK HARNESS AND CONNECTOR (VCI, TIS TERMINAL VOLTAGE)

(a) Reconnect the F109 multiplex tilt and telescopic ECU connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

9. CHECK TILT POSITION SENSOR

(a) Reconnect the F110 tilt motor connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPLACE STEERING COLUMN ASSEMBLY Removal

OK -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
