P0A09-265 - DC / DC Converter Status Circuit Low Input

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0A09-265: DC / DC Converter Status Circuit Low Input
P0A09-265 - DC / DC Converter Status Circuit Low Input

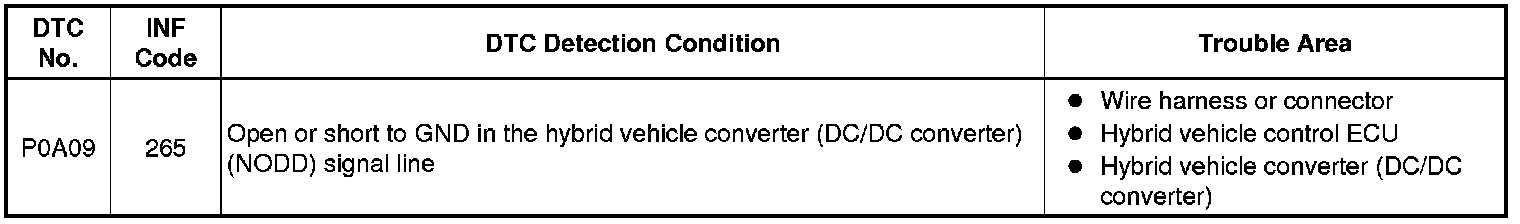

DESCRIPTION

Refer to the description for DTC P0A08-264 P0A08.





WIRING DIAGRAM

Refer to the wiring diagram for DTC P0A08-264 P0A08.

INSPECTION PROCEDURE

CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT
Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. CHECK DTC OUTPUT (HV)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check if DTCs are output.

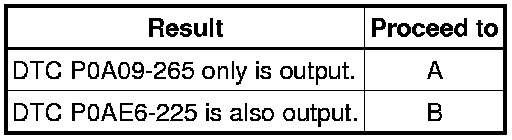

Result:





(e) Turn the power switch off.

B -- GO TO DTC CHART (P0AE6-225) P0AE6
A -- Continue to next step.

2. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR) P0343

NG -- CONNECT SECURELY
OK -- Continue to next step.

3. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONVERTER CONNECTOR)

CAUTION:
Be sure to wear insulated gloves.

(a) Check that the service plug grip is not installed.

NOTICE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

(b) Check the connection of the hybrid vehicle converter (DC/DC converter) connector.





OK:

The connector is connected securely and there are no contact problems.

NG -- CONNECT SECURELY
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - HYBRID VEHICLE CONVERTER)

CAUTION:
Be sure to wear insulated gloves.

(a) Check that the service plug grip is not installed.

NOTICE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

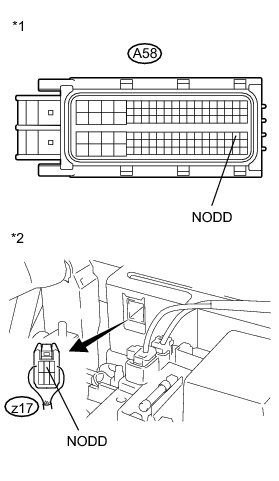

(b) Disconnect connector A58 from the hybrid vehicle control ECU.

(c) Disconnect connector z17 from the hybrid vehicle converter.





(d) Measure the resistance according to the value(s) in the table below.





Standard Resistance (Check for Open):





Standard Resistance (Check for Short):

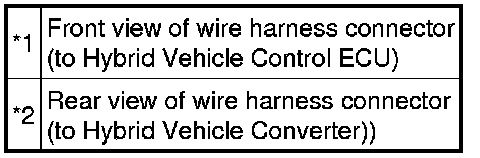

Text in Illustration





(e) Connect the hybrid vehicle converter connector.

(f) Connect the hybrid vehicle control ECU connector.

NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

5. CHECK HYBRID VEHICLE CONTROL ECU P0A08

NG -- REPLACE HYBRID VEHICLE CONTROL ECU Components

OK -- REPLACE HYBRID VEHICLE CONVERTER Components
