Fuse: Locations

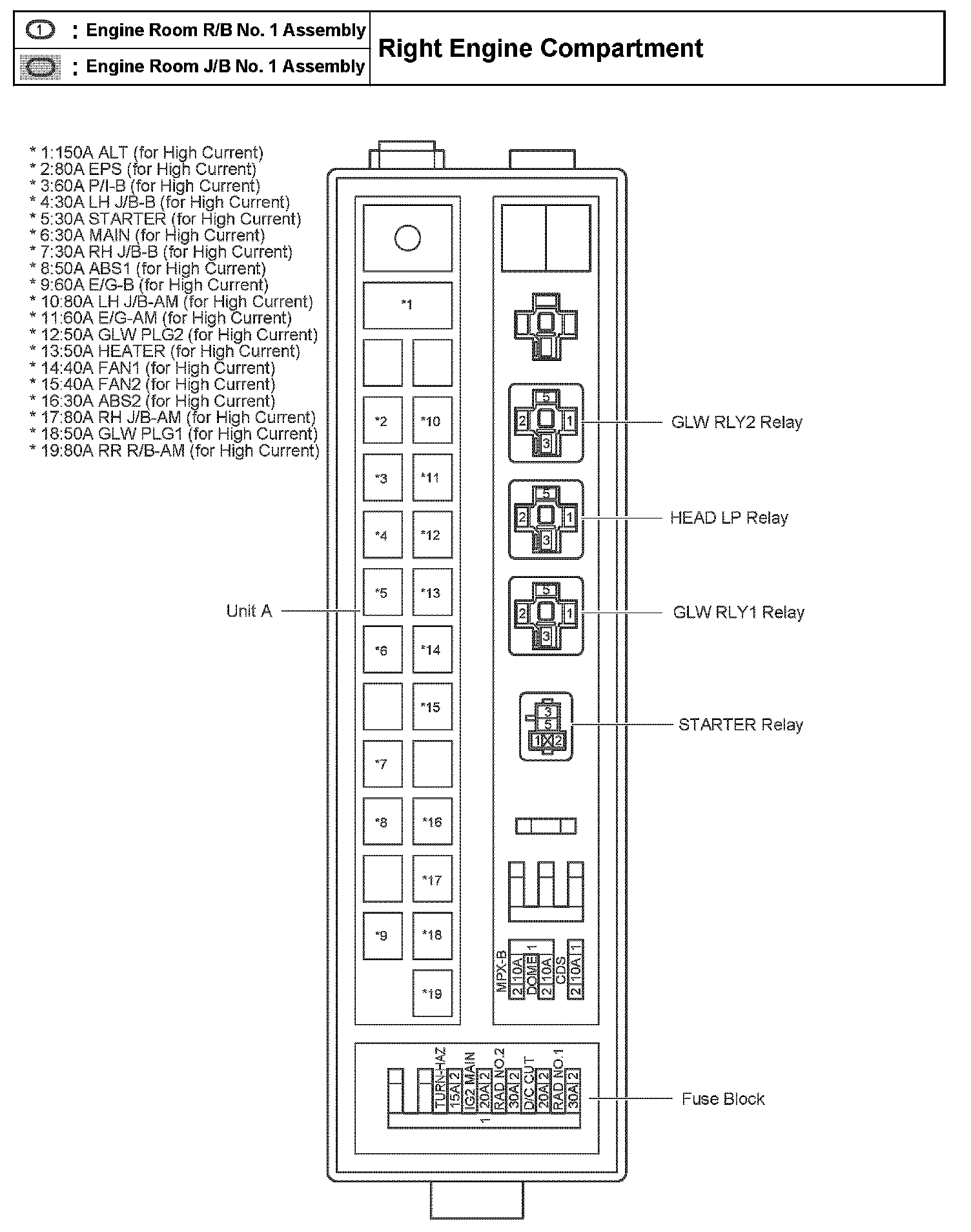

Engine Room R/B No.1 Assembly, Engine Room J/B No.1 Assembly - Right Engine Compartment:
Engine Room R/B No.2 Assembly, Engine Room J/B No.2 Assembly - Left Engine Compartment:

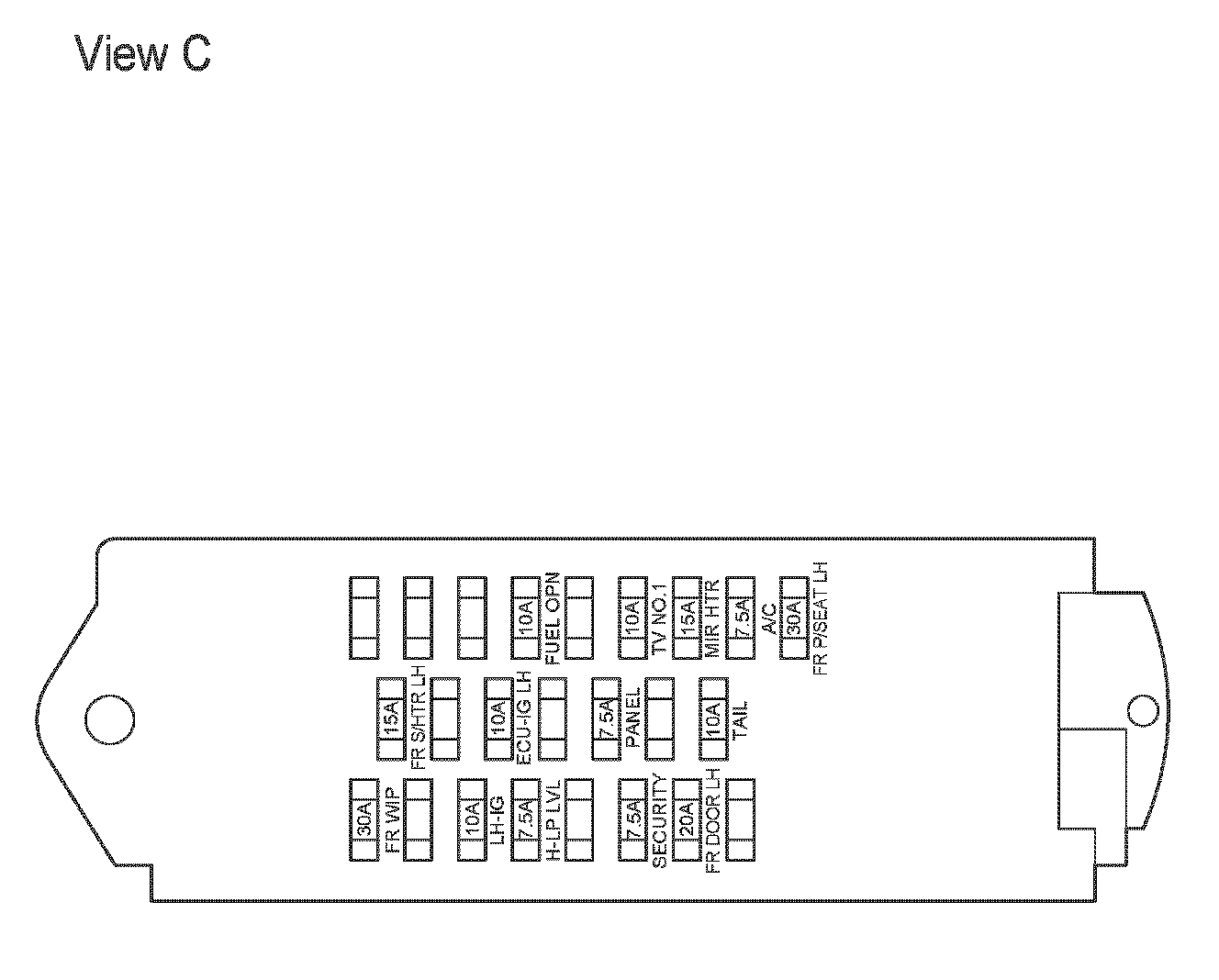

Cowl Side J/B LH - Cowl Side Left:

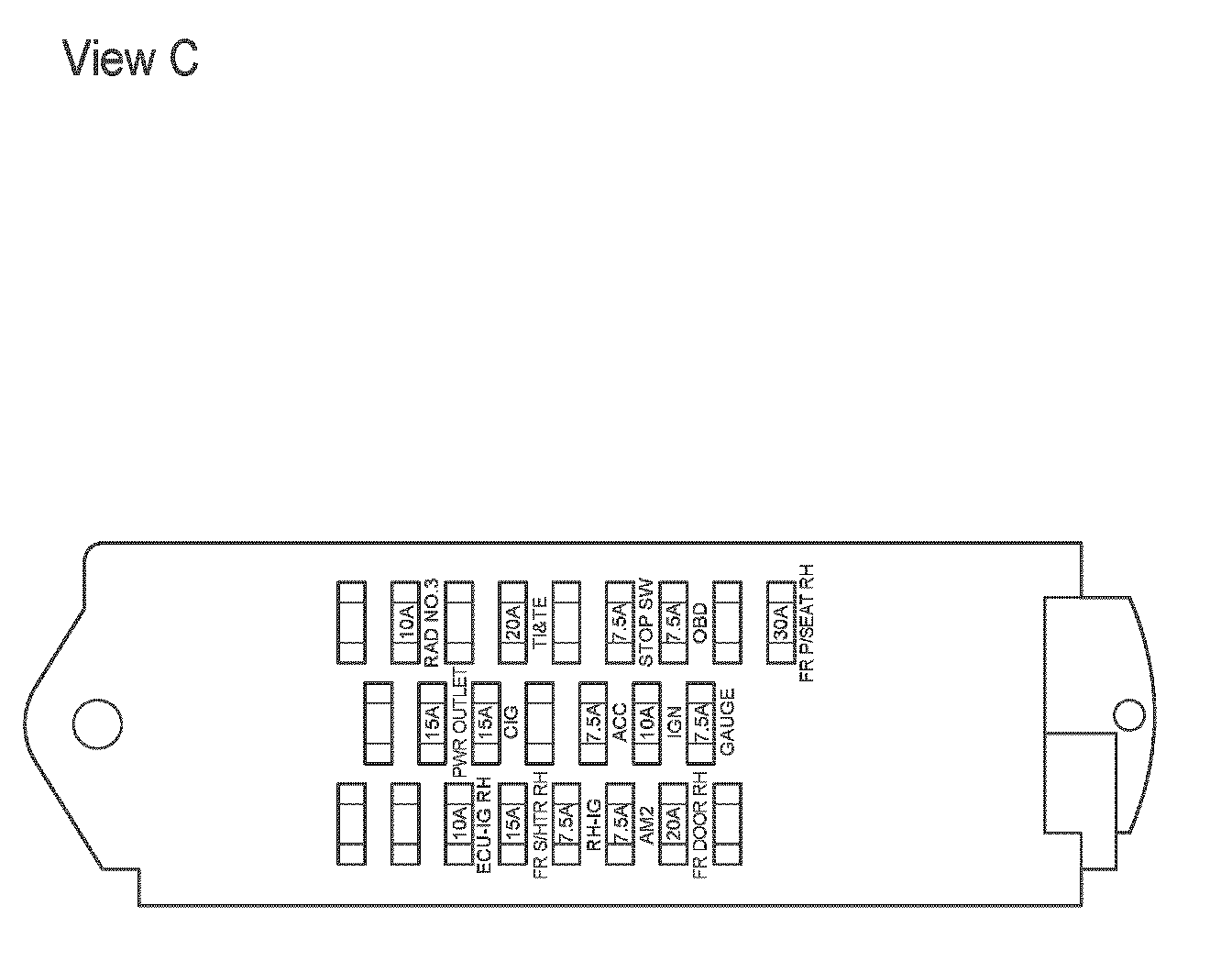

Cowl Side J/B RH - Cowl Side Right:
Luggage Room R/B Assembly, Luggage Room J/B Assembly - Left Luggage Compartment:
