C1516

POWER STEERING: POWER STEERING SYSTEM: C1516,C1526: Torque Sensor Zero Point Adjustment Incomplete


DESCRIPTION

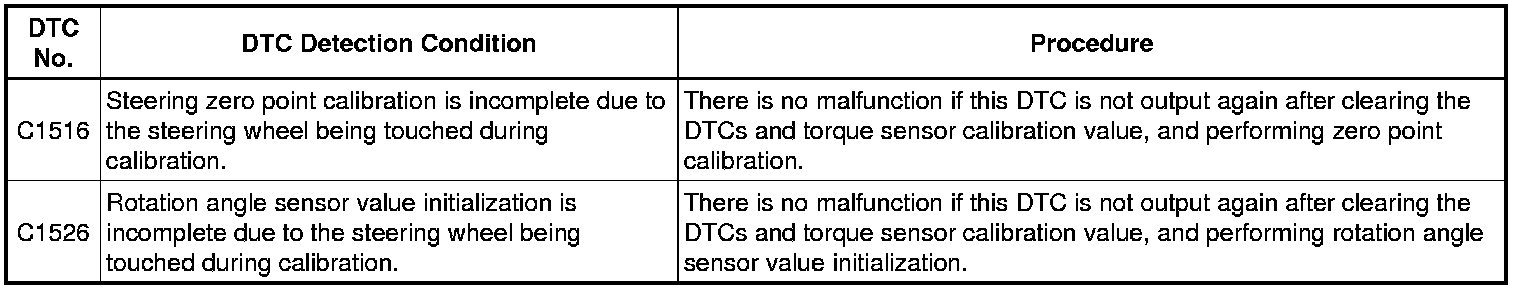

These DTCs do not indicate a malfunction. The power steering ECU outputs these DTCs when it determines that rotation angle sensor value initialization and torque sensor zero point calibration are incomplete.





INSPECTION PROCEDURE

PROCEDURE

1. CLEAR DTC

(a) Clear the DTC Power Steering System.

NEXT -- Continue to next step.

2. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

(a) Initialize the rotation angle sensor value and calibrate the torque sensor zero point Power Steering System.

NEXT -- Continue to next step.

3. RECONFIRM DTC

(a) Check for DTCs Power Steering System.

Result:





HINT
Replace the power steering ECU if DTCs are still output after performing rotation angle sensor value initialization and steering zero point calibration 3 times.

C -- END

B -- INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT
A -- Continue to next step.

4. REPLACE POWER STEERING ECU

(a) Replace the power steering ECU Removal.

NEXT -- Continue to next step.

5. CLEAR DTC

(a) Check for DTCs Power Steering System.

NEXT -- Continue to next step.

6. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

(a) Initialize the rotation angle sensor value and calibrate the torque sensor zero point Power Steering System.

NEXT -- Continue to next step.

7. RECONFIRM DTC

(a) Check for DTCs Power Steering System.

Result:





HINT
Replace the power steering gear assembly if DTCs are still output after performing rotation angle sensor value initialization and steering zero point calibration 3 times.

NOTICE:
If replacing the power steering gear assembly, clear the rotation angle sensor calibration value, initialize the rotation angle sensor value, and calibrate the torque sensor zero point Power Steering System.

D -- INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

C -- REPLACE POWER STEERING GEAR ASSEMBLY (w/o VGRS) Removal

B -- REPLACE POWER STEERING GEAR ASSEMBLY (w/ VGRS) Removal

A -- END
