P1277

1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1276-P1279,P127A-P127D: Port Injector Circuit No. 1
P127D - Port Injector Circuit #8

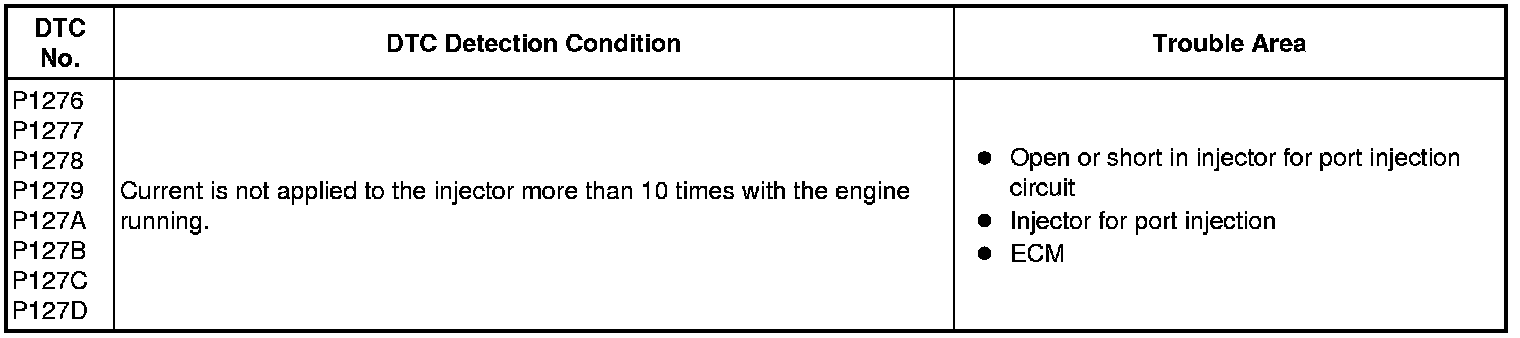

DESCRIPTION

The D-4S system has two injection systems. One is the in-cylinder direct injection system that directly injects pressurized fuel into the combustion chamber. The other is the intake port injection system. The ECM determines the percentage of in-cylinder direct injection to the intake port injection systems in accordance with the engine speed and load.





MONITOR DESCRIPTION

The ECM monitors the injection control of the port injector. If a malfunction is detected in the port injector circuit, the ECM cancels the injection control for the corresponding cylinder and turns on the MIL.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Start the engine.

7. Idle the engine for 10 seconds [B].

8. Enter the following menus: Powertrain / Engine / Trouble Codes.

9. Read the DTCs [C].

HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P1276, P1277, P1278, P1279, P127A, P127B, P127C or P127D.

12. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [C] again.

13. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM









INSPECTION PROCEDURE

HINT
Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P1276, P1277, P1278, P1279, P127A, P127B, P127C OR P127D)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Start the engine.

(d) Turn the Techstream on.

(e) Enter the following menus: Powertrain / Engine / Trouble Codes.

(f) Read DTCs.

Result:





B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. CHECK FUEL INJECTOR FOR PORT INJECTION (POWER SOURCE VOLTAGE)

(a) Disconnect the fuel injector for port injection connector.





(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- CHECK AND REPAIR HARNESS OR CONNECTOR (INJ FUSE - INJECTOR FOR PORT INJECTION)
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (ECM - FUEL INJECTOR FOR PORT INJECTION)

(a) Disconnect the fuel injector for port injection connector.





(b) Disconnect the E2 and E4 ECM connectors.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance (Check for open):





Standard resistance (Check for short):





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK FUEL INJECTOR FOR PORT INJECTION (RESISTANCE)

(a) Check the fuel injector for port injection resistance Fuel Injector (for Port Injection).

NG -- REPLACE FUEL INJECTOR FOR PORT INJECTION Removal

OK -- REPLACE ECM Removal
