Anti-Rust Treatment After Installation

ANTI-RUST TREATMENT AFTER INSTALLATION

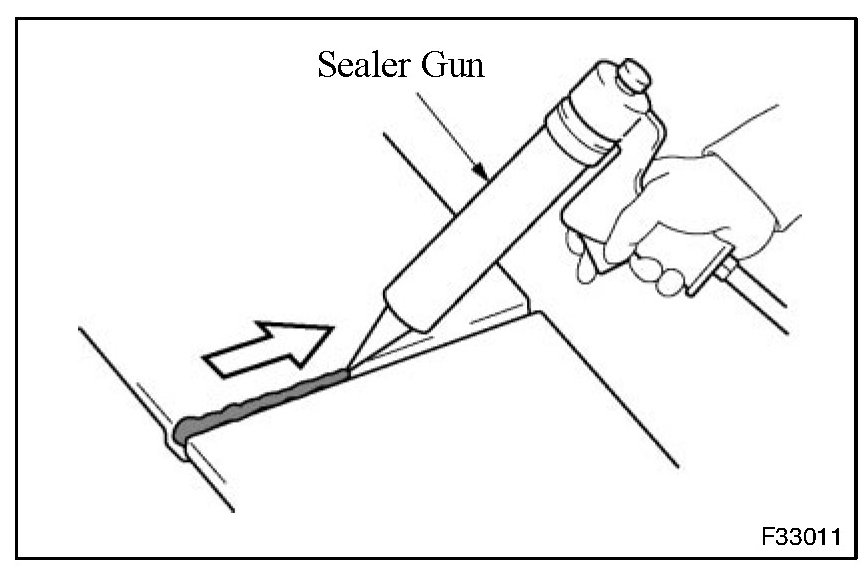

a. BODY SEALER APPLICATION

PURPOSE: For water-proofing and anti-rust measures, always apply the body sealer to the body panel seams and hems of the doors, hood, etc.

NOTICE: Apply body sealer neatly to parts that require a high quality appearance.

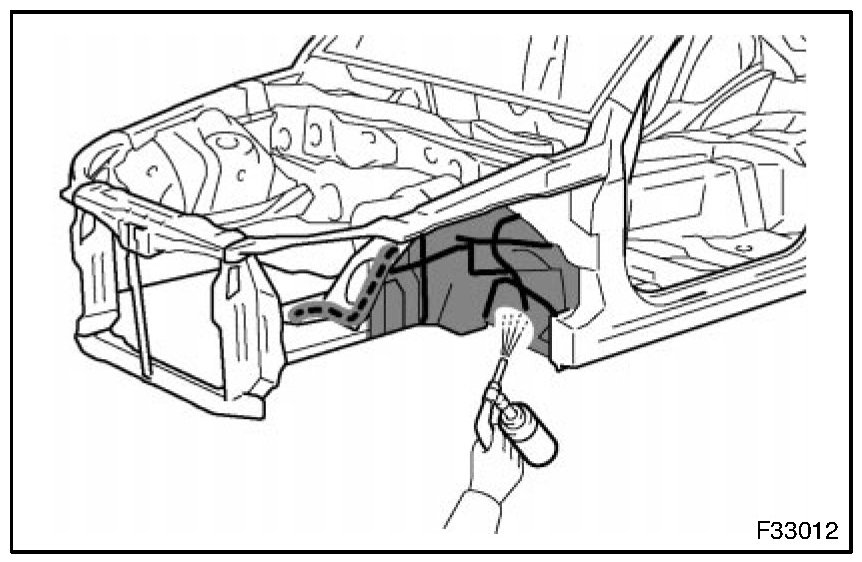

b. UNDERCOAT APPLICATION

PURPOSE: To prevent corrosion and protect the body from gravel, always apply a sufficient undercoating to the areas indicated.

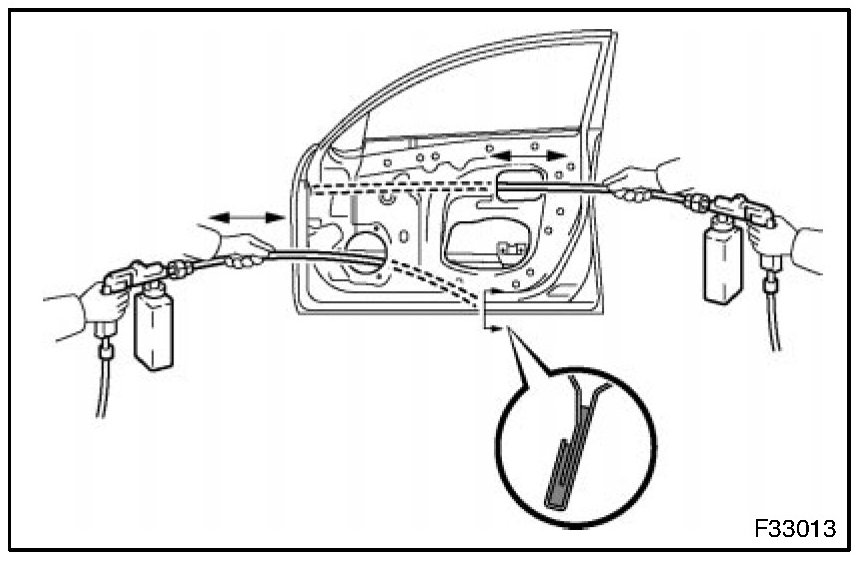

c. VEHICLE BODY ANTI-RUST AGENT APPLICATION

PURPOSE: The purpose is to protect areas from rust which are difficult to paint such as the backside of the box-shaped cross section frame parts.

METHOD: Apply anti-rust agent through the service holes and/or installation holes of the parts.
