Home
>>
Lexus
>>
2011
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

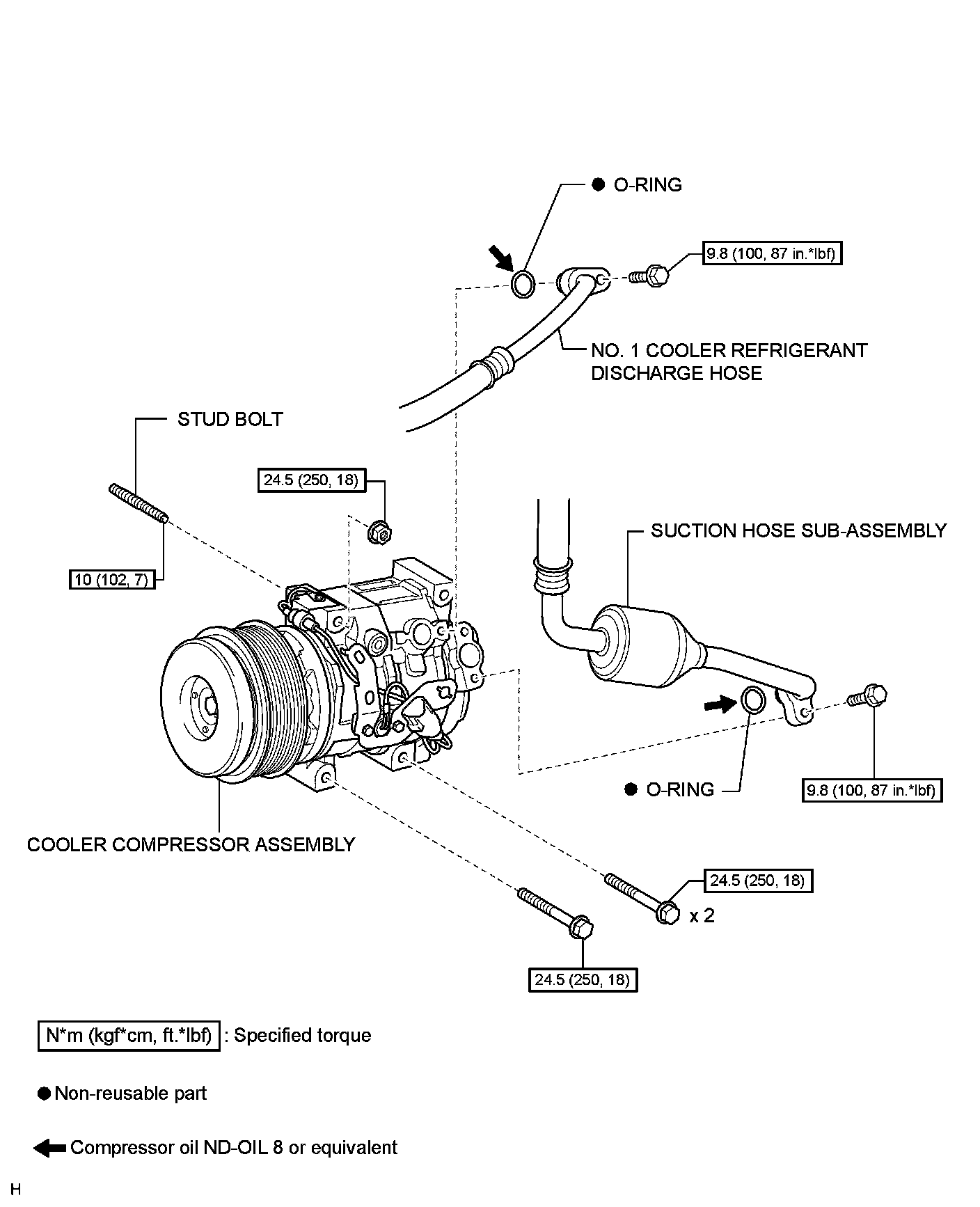

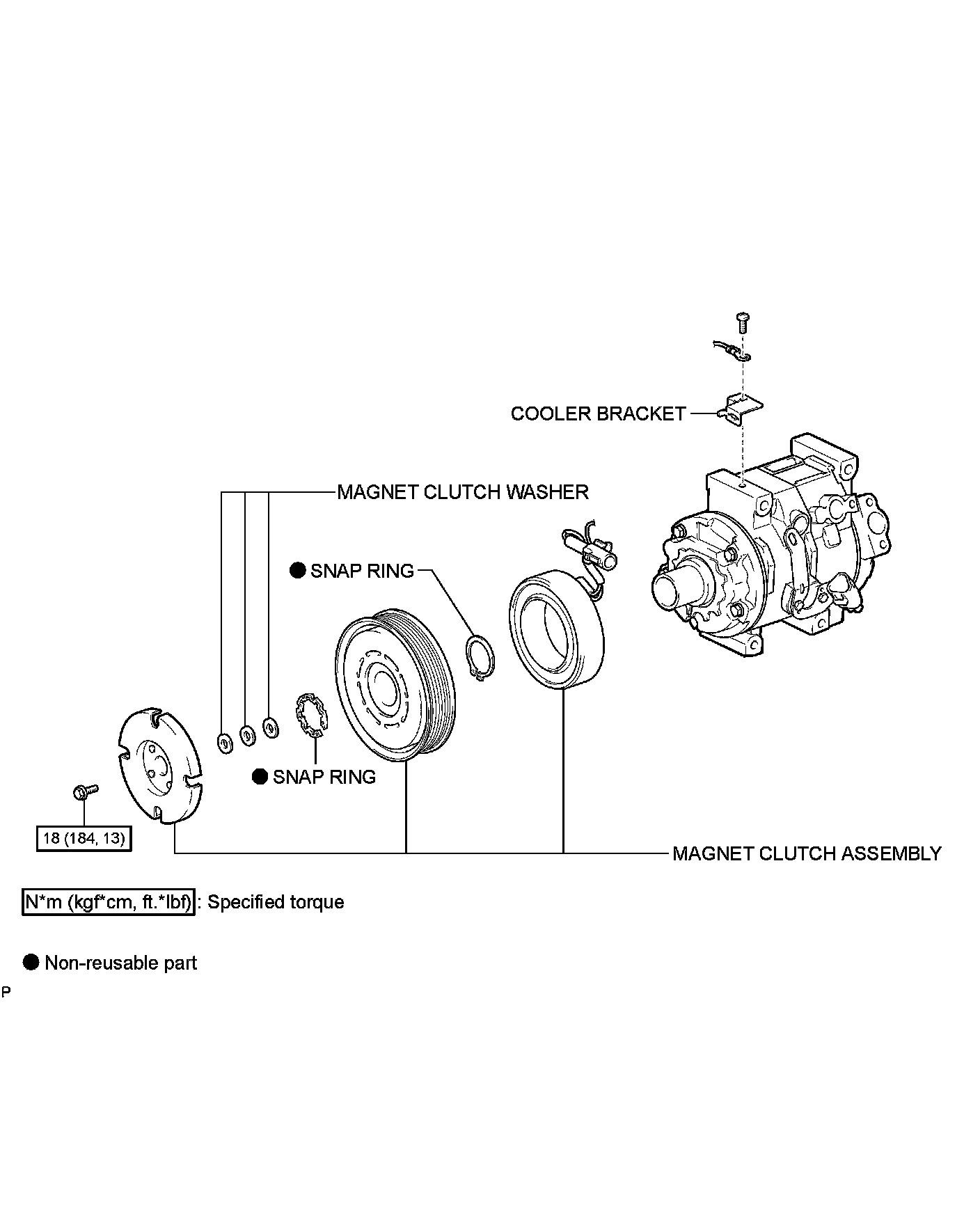

HEATING / AIR CONDITIONING: COMPRESSOR: COMPONENTS
