Installation

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING ECU: INSTALLATION

1. INSTALL TIRE PRESSURE WARNING ECU

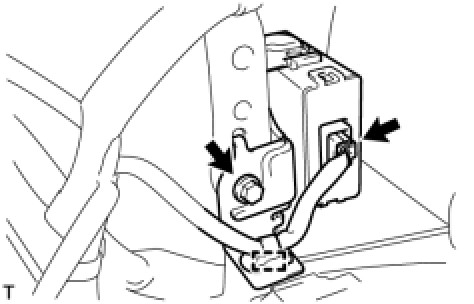

(a) Install the ECU with the bolt.





Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

(b) Connect the ECU connector.

(c) Attach the clamp.

2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH Installation

3. INSTALL REAR SEAT COVER CAP Installation

4. INSTALL LUGGAGE COMPARTMENT NO. 1 TRIM HOOK Installation

5. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE Installation

6. INSTALL REAR DOOR SCUFF PLATE RH Installation

7. INSTALL REAR STEP COVER Installation

8. INSTALL REAR NO. 2 SEAT ASSEMBLY

(a) for Power Seat:

Install the rear No. 2 seat Installation.

(b) for Manual Seat:

Install the rear No. 2 seat Installation.

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

10. PERFORM REGISTRATION

(a) Perform registration Registration.

11. CHECK TIRE INFLATION PRESSURE

(a) Check the tire inflation pressure when the tire is cold Component Tests and General Diagnostics.

12. PERFORM SYSTEM INITIALIZE

(a) Perform system initialize Initialization.

13. CHECK TIRE PRESSURE AFTER REPAIRS

(a) After repairs, confirm that the actual tire pressures are displayed in the Data List Data List / Active Test.
