Part 2

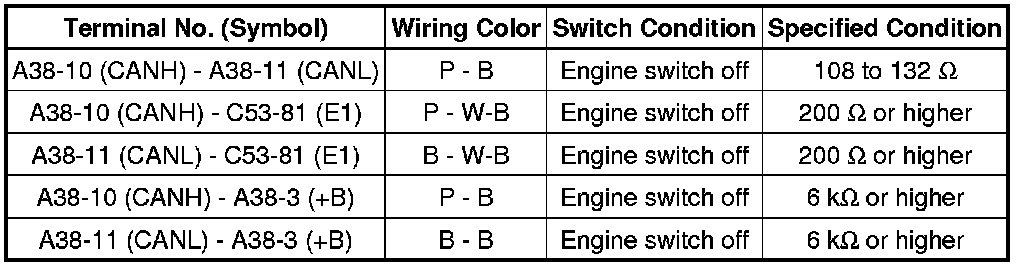

7. CHECK ECM

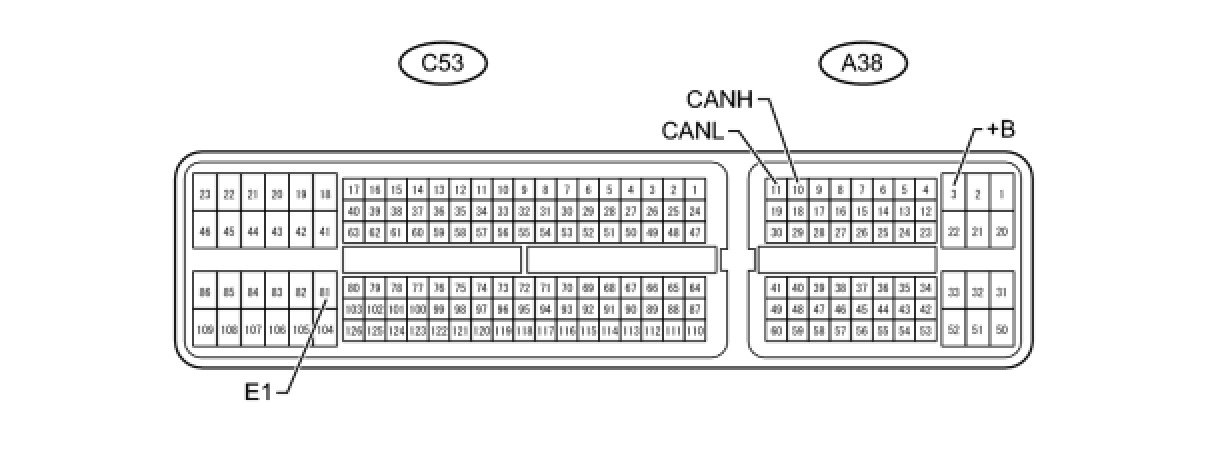

(a) Disconnect the A38 and C53 ECM connectors.

(b) Measure the resistance according to the value(s) in the table below.

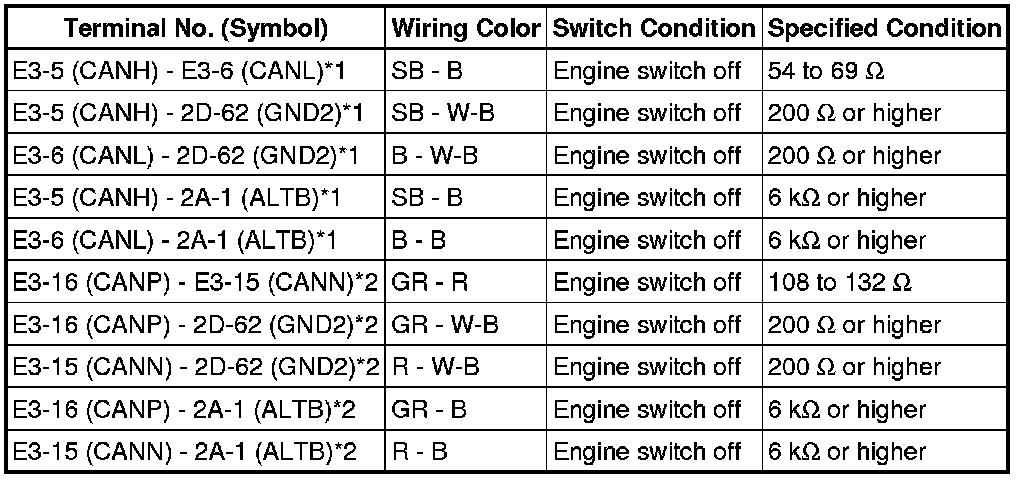

8. CHECK MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)





(a) Disconnect the E3 ECU connector.

(b) Disconnect the 2A and 2D junction connectors.

(c) Measure the resistance according to the value(s) in the table below.





*1: For V bus

*2: For MS bus

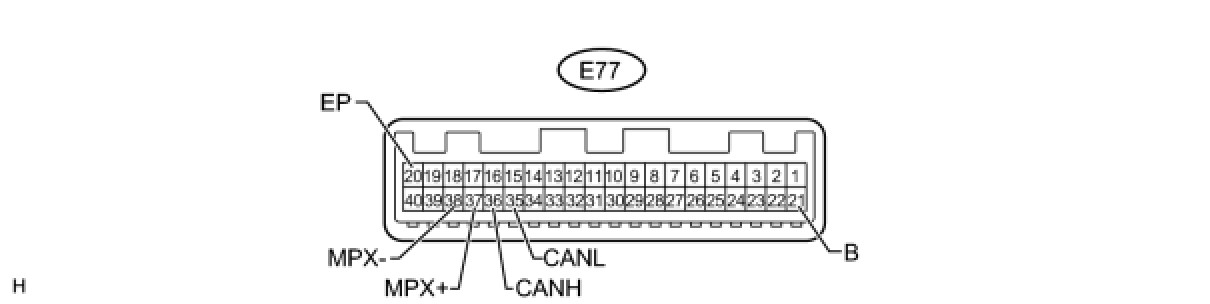

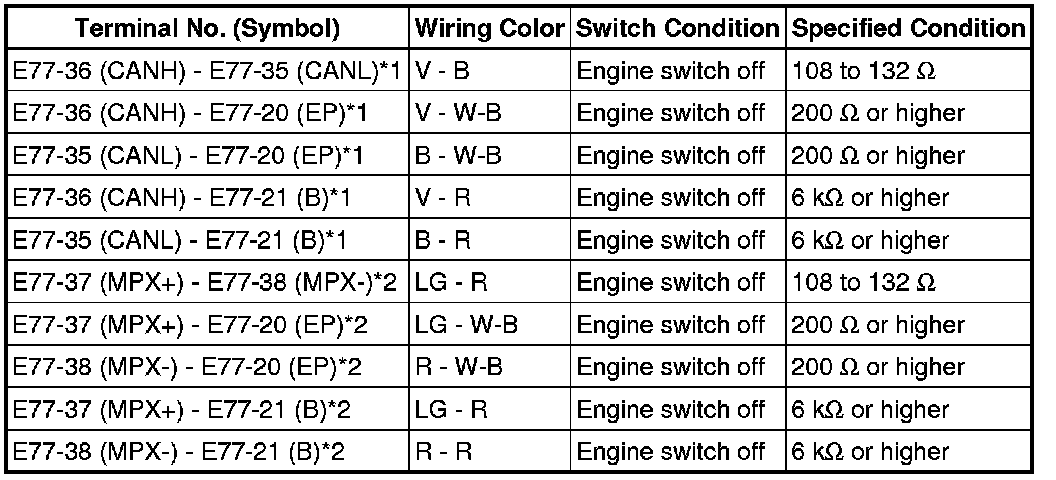

9. CHECK COMBINATION METER





(a) Disconnect the E77 meter connector.

(b) Measure the resistance according to the value(s) in the table below.





*1: For V bus

*2: For MS bus

10. CHECK CENTER AIRBAG SENSOR





(a) Disconnect the E47 sensor connector.

(b) Measure the resistance according to the value(s) in the table below.

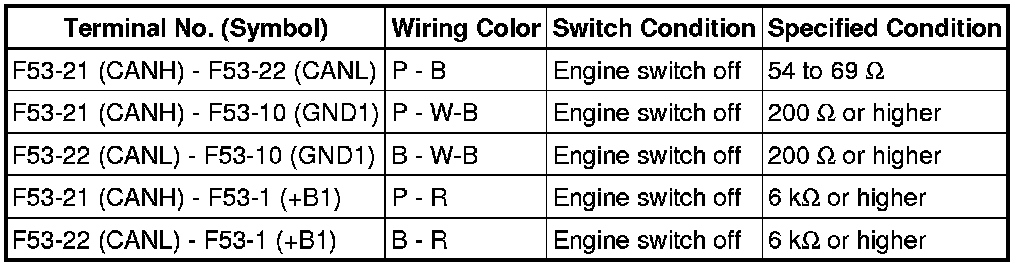

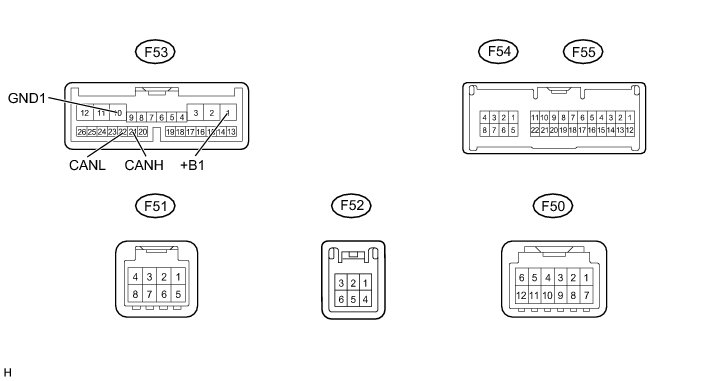

11. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY





(a) Disconnect the F53 display connector.

(b) Measure the resistance according to the value(s) in the table below.

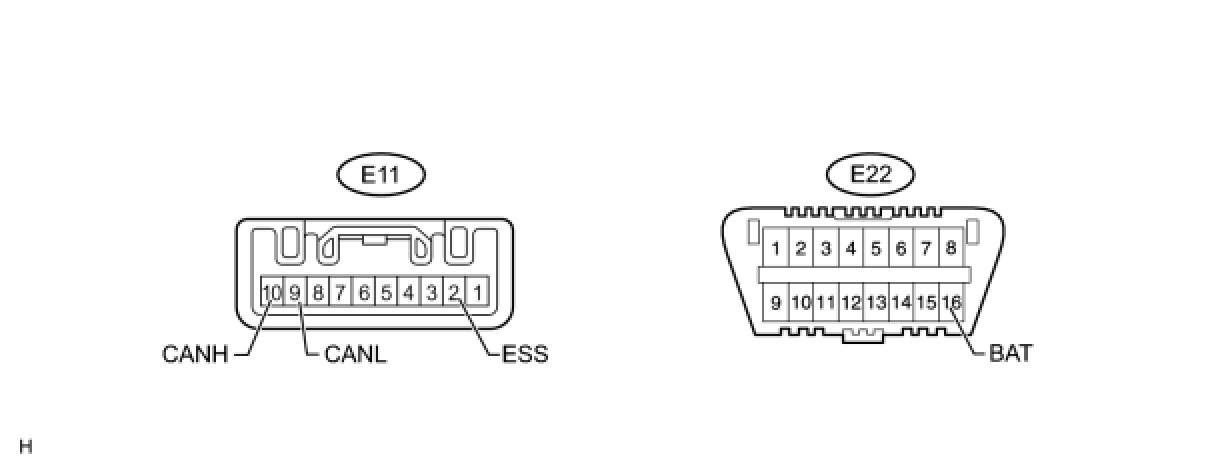

12. CHECK STEERING ANGLE SENSOR





(a) Disconnect the E11 sensor connector.

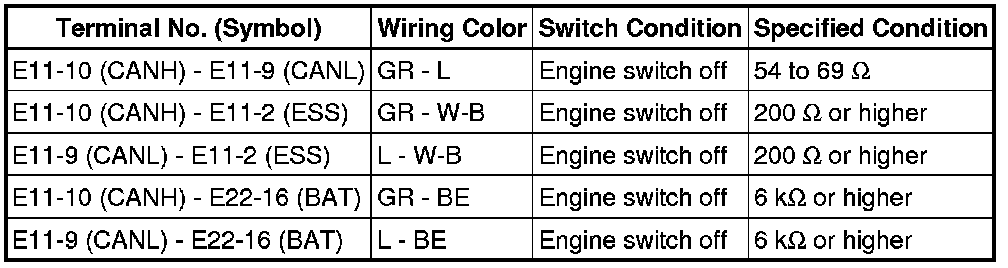

(b) Measure the resistance according to the value(s) in the table below.





13. CHECK YAW RATE SENSOR





(a) Disconnect the E50 sensor connector.

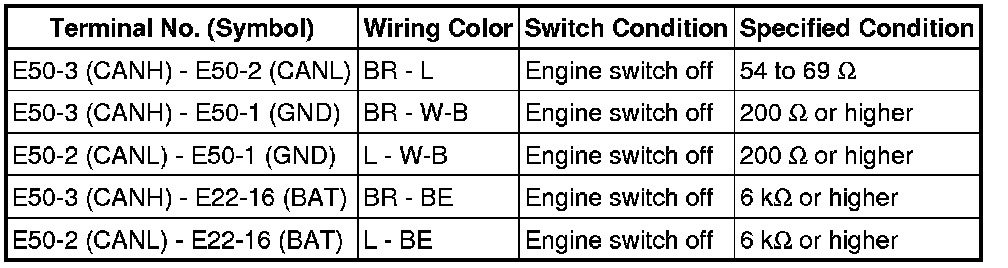

(b) Measure the resistance according to the value(s) in the table below.





14. CHECK SEAT BELT CONTROL ECU

For vehicles with the dynamic radar cruise control system only.





(a) Disconnect the E41 and E42 ECU connectors.

(b) Measure the resistance according to the value(s) in the table below.

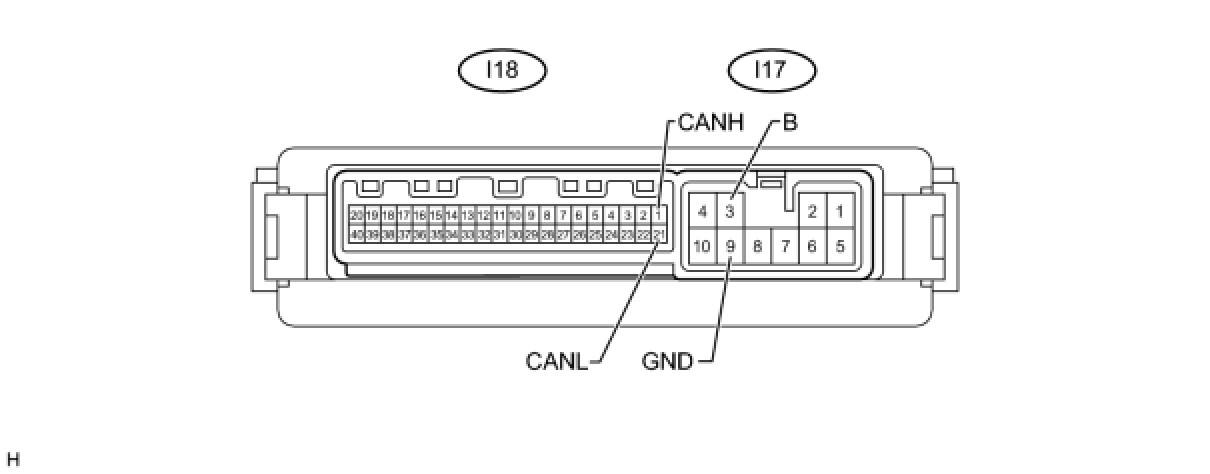

15. CHECK OUTER MIRROR CONTROL ECU





(a) Disconnect the I17 and I18 ECU connectors.

(b) Measure the resistance according to the value(s) in the table below.





16. CHECK MULTIPLEX TILT AND TELESCOPIC ECU

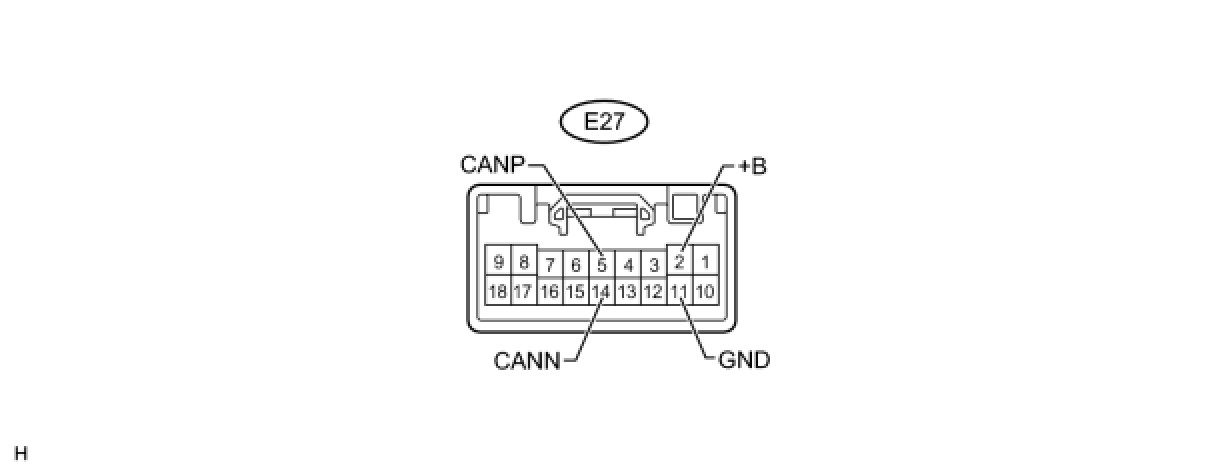

(a) Disconnect the E27 ECU connector.

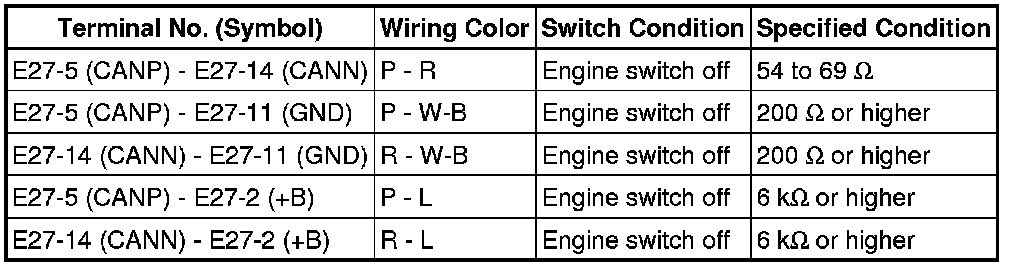

(b) Measure the resistance according to the value(s) in the table below.





17. CHECK CERTIFICATION ECU (SMART KEY ECU)





(a) Disconnect the E29 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

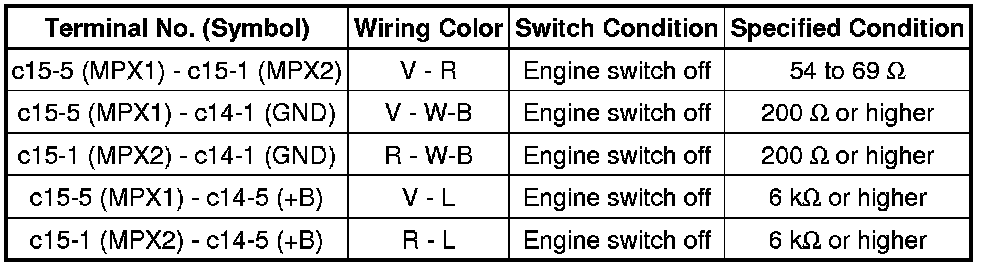

18. CHECK POSITION CONTROL ECU AND SWITCH





(a) Disconnect the c14 and c15 ECU connectors.

(b) Measure the resistance according to the value(s) in the table below.

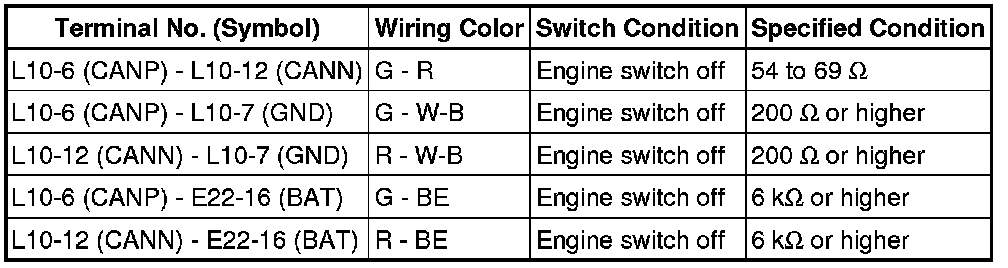

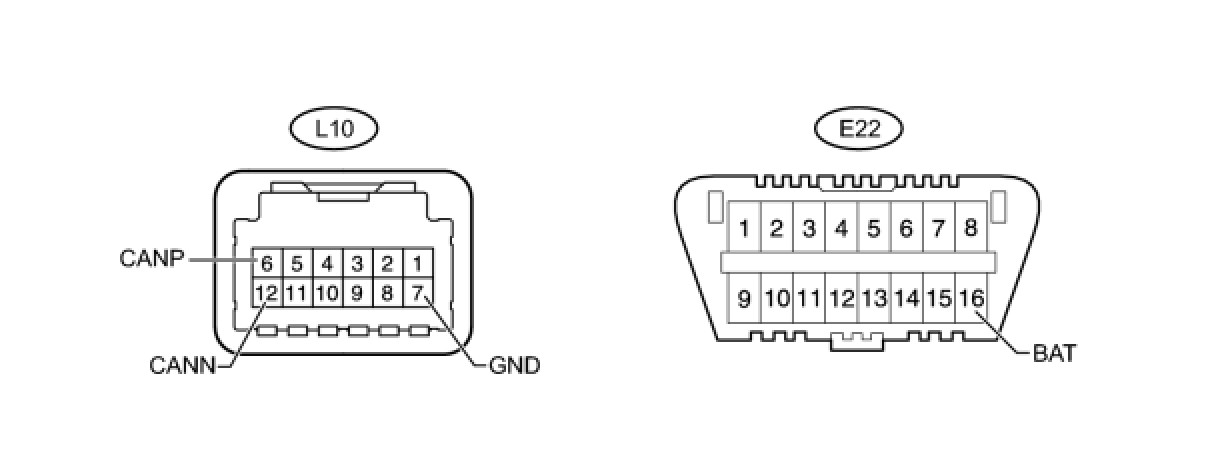

19. CHECK TIRE PRESSURE WARNING ECU





(a) Disconnect the L10 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

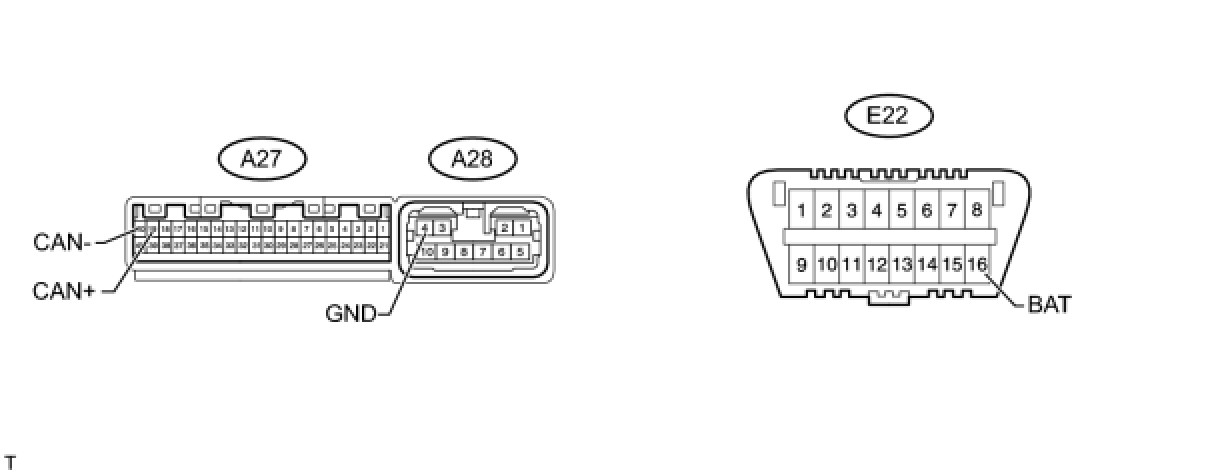

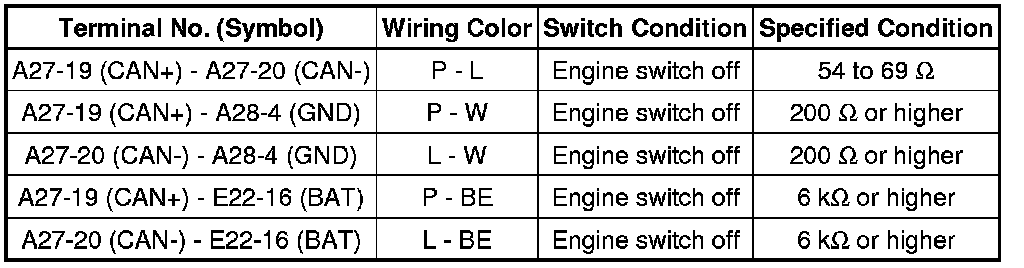

20. CHECK 4WD CONTROL ECU





(a) Disconnect the A27 and A28 ECU connectors.

(b) Measure the resistance according to the value(s) in the table below.

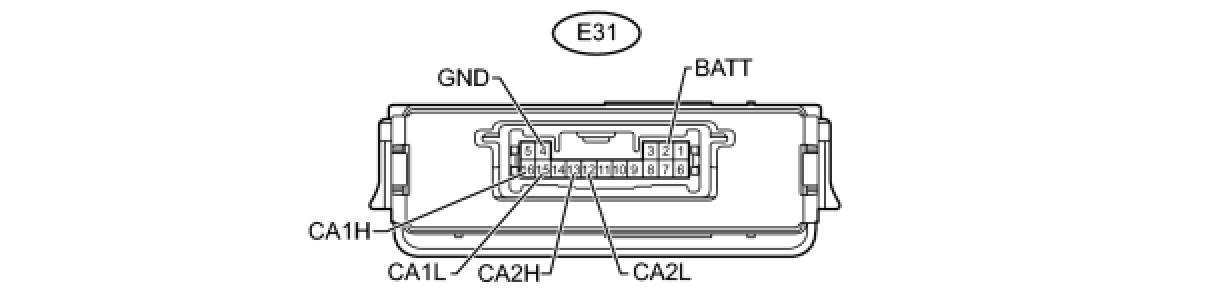

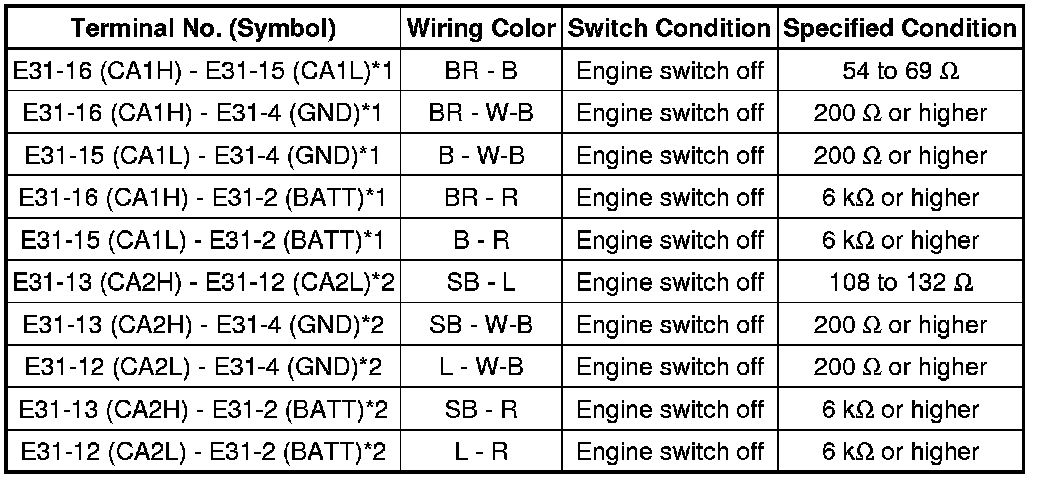

21. CHECK NETWORK GATEWAY ECU





(a) Disconnect the E31 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.





*1: For V bus

*2: For movement control bus

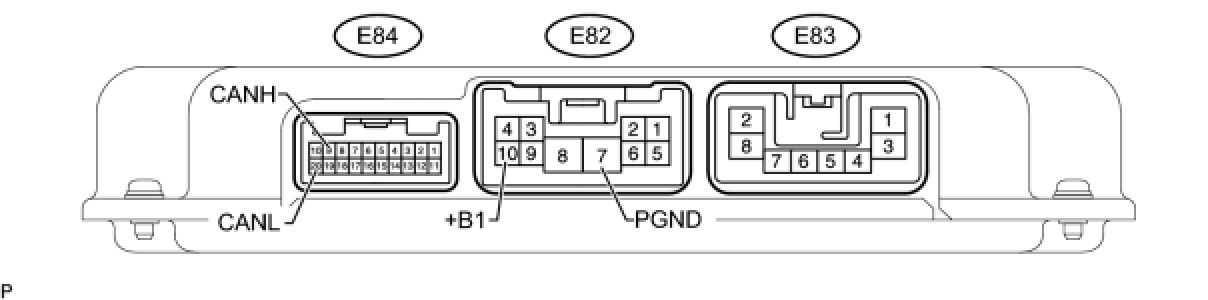

22. CHECK STEERING CONTROL ECU





(a) Disconnect the E82 and E84 ECU connectors.

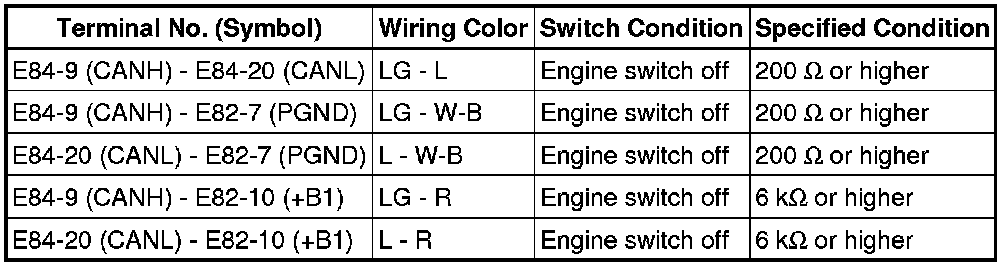

(b) Measure the resistance according to the value(s) in the table below.

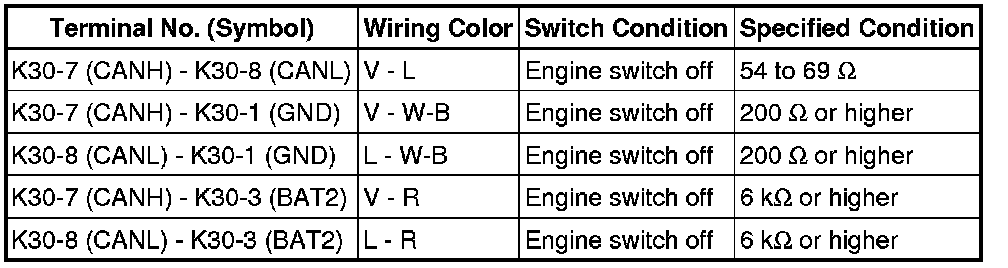

23. CHECK SUSPENSION CONTROL ECU





(a) Disconnect the K30 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

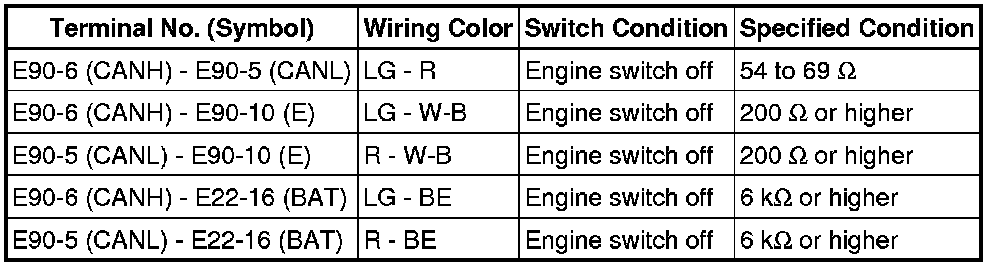

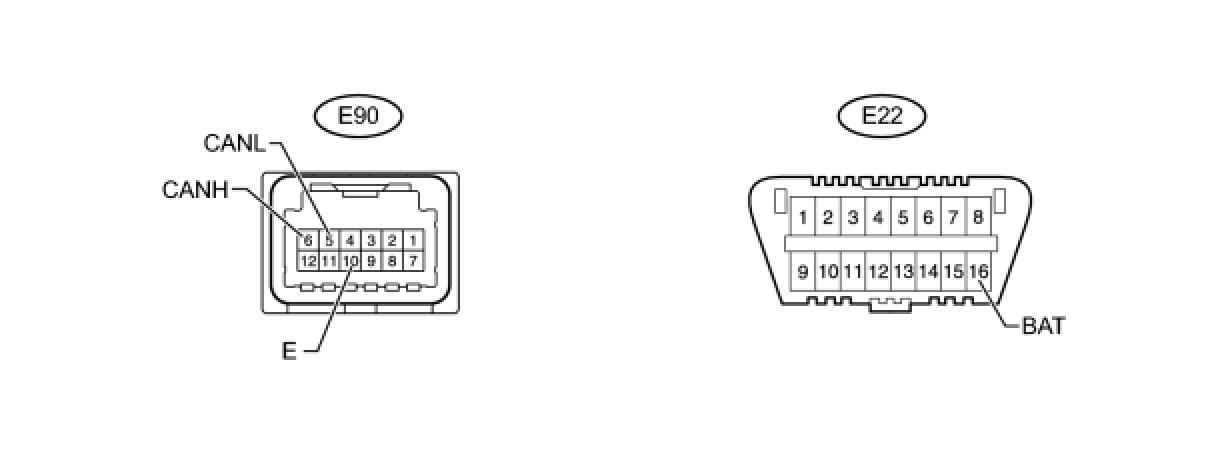

24. CHECK WINDSHIELD WIPER ECU





(a) Disconnect the E90 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

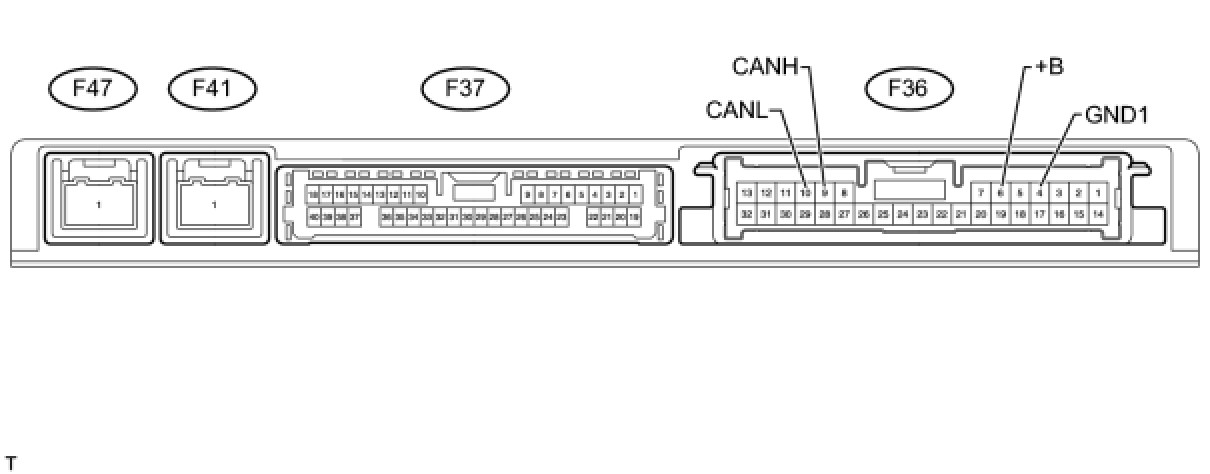

25. CHECK PARKING ASSIST ECU

For vehicles with the wide view front and side monitor system only.





(a) Disconnect the F36 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

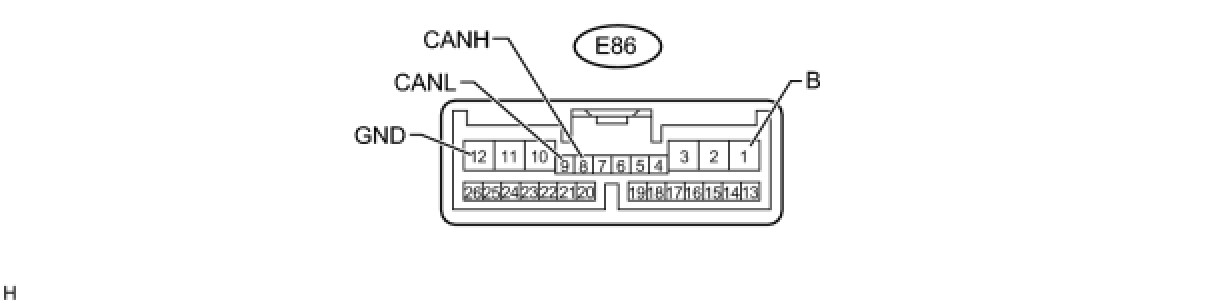

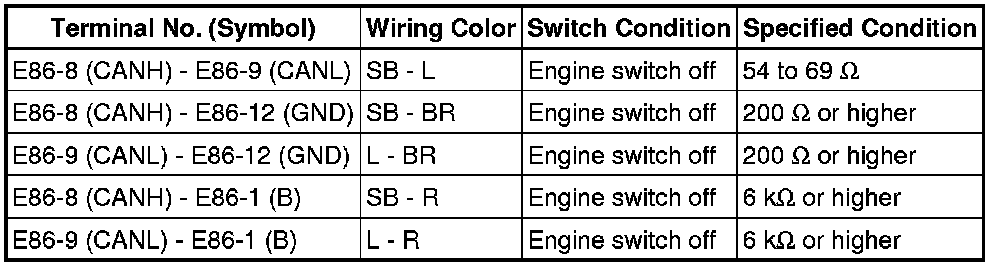

26. CHECK DISTANCE CONTROL ECU

For vehicles with the dynamic radar cruise control system only.





(a) Disconnect the E86 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.





27. CHECK POWER BACK DOOR UNIT (POWER BACK DOOR ECU)

For vehicles with the power back door system only.

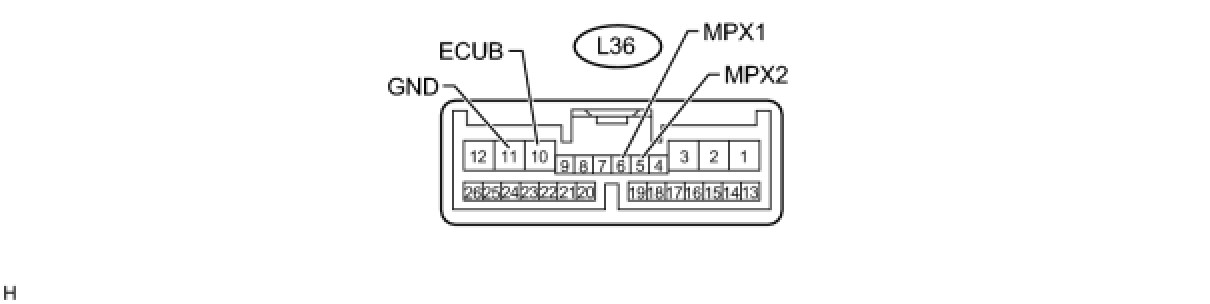

(a) Disconnect the L36 unit connector.

(b) Measure the resistance according to the value(s) in the table below.

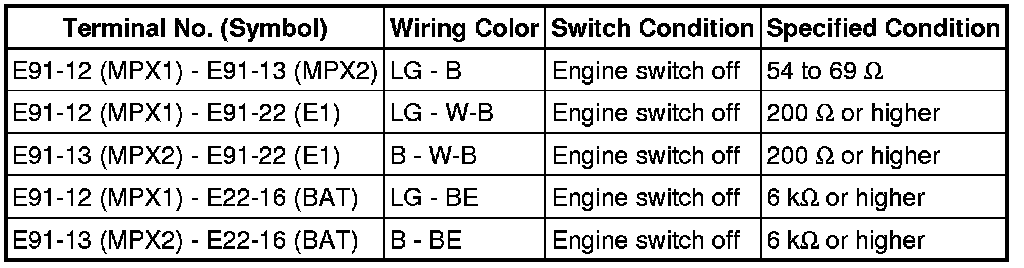

28. CHECK AFS ECU (HEADLIGHT SWIVEL ECU)

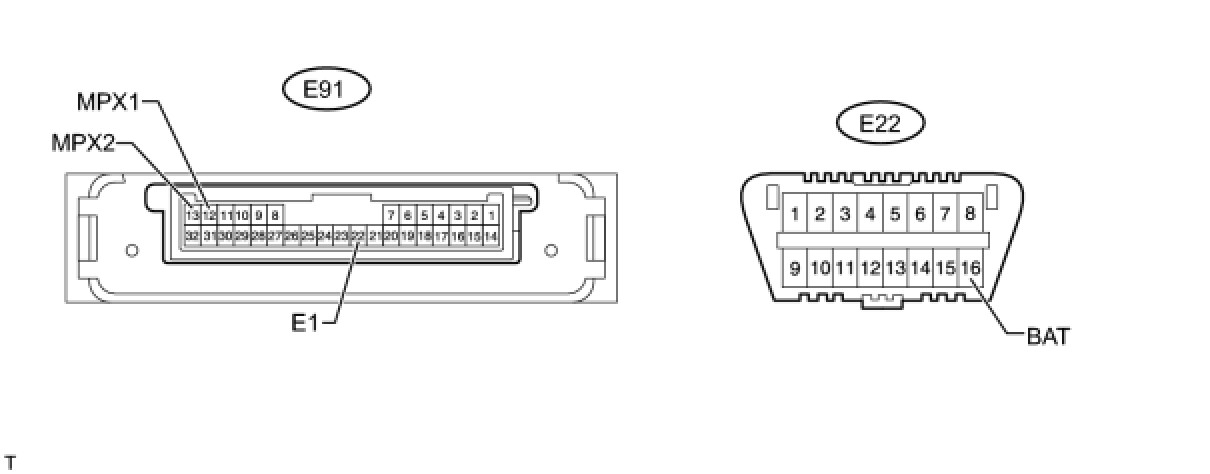

(a) Disconnect the E91 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

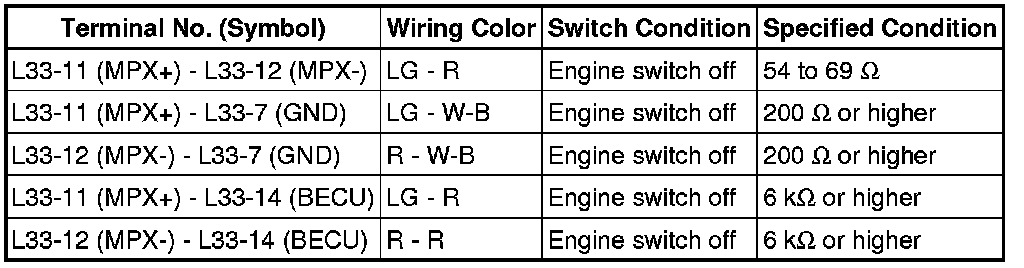

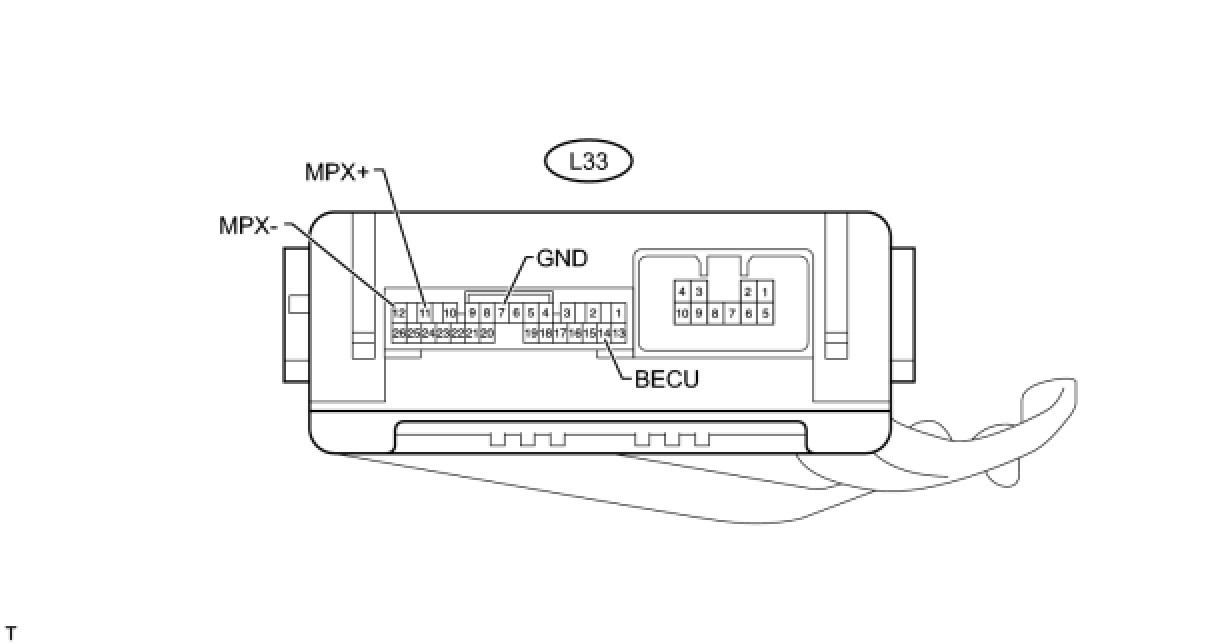

29. CHECK NO. 2 MAIN BODY ECU





(a) Disconnect the L33 ECU connector.

(b) Measure the resistance according to the value(s) in the table below.
