Service Data





SPECIFICATIONS: STEERING COLUMN: SERVICE DATA

Steering System





Steering Column

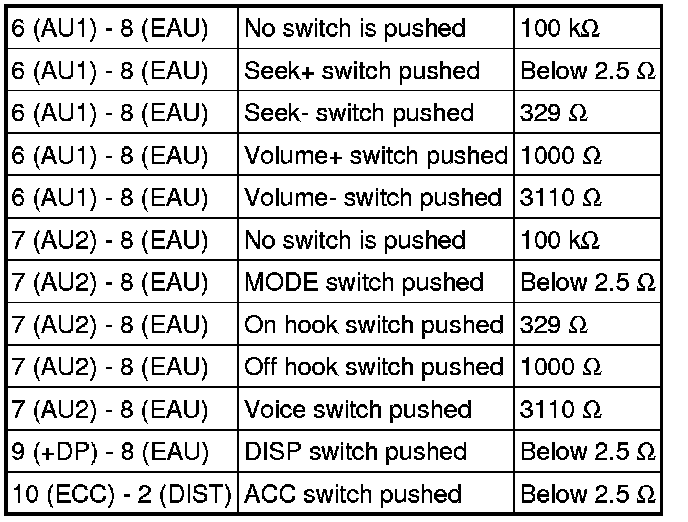

Steering Switch (w/ Dynamic Radar Cruise Control System) Standard Resistance

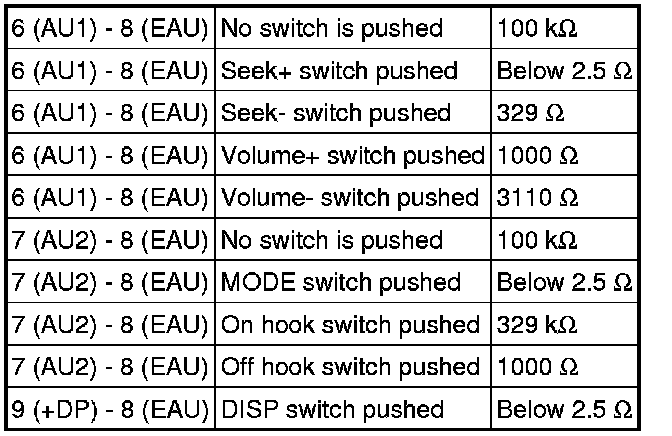

Steering Switch (w/o Dynamic Radar Cruise Control System) Standard Resistance

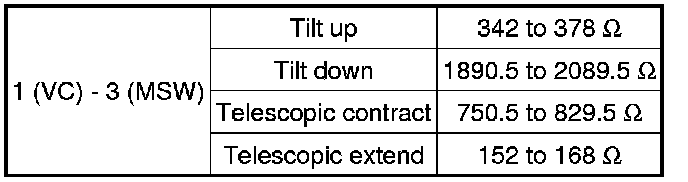

Tilt and Telescopic Manual Switch Standard Resistance
