Installation

3UR-FE BATTERY / CHARGING: GENERATOR: INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

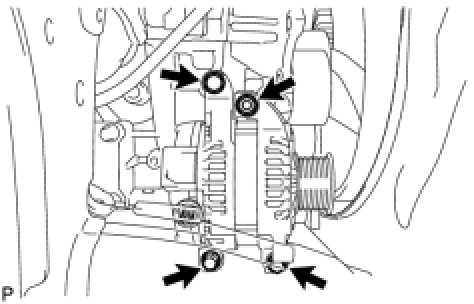

(a) Install the generator with the 3 bolts and nut.





Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

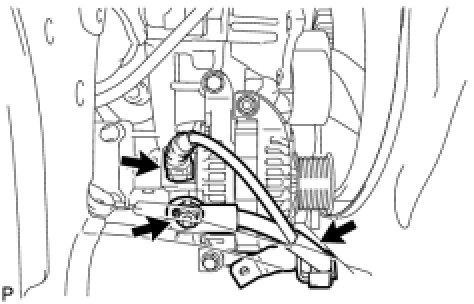

(b) Connect the generator connector.





(c) Connect the generator wire with the nut.

Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

(d) Install the terminal cap.

(e) Install the harness bracket to the generator with the bolt.

Torque : 31 Nm (316 kgf-cm, 23 ft-lbf)

2. CONNECT OIL COOLER PIPE ASSEMBLY Installation

3. CONNECT VANE PUMP ASSEMBLY Installation

4. INSTALL AIR CLEANER ASSEMBLY Installation

5. INSTALL AIR CLEANER HOSE ASSEMBLY Installation

6. INSTALL FRONT FENDER APRON SEAL FRONT RH Installation

7. INSTALL FAN & GENERATOR V BELT Installation

8. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation

9. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

10. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

13. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

14. INSTALL ENGINE ROOM SIDE COVER LH Installation

15. INSTALL ENGINE ROOM SIDE COVER RH Installation
