Lexus
>>
2011
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

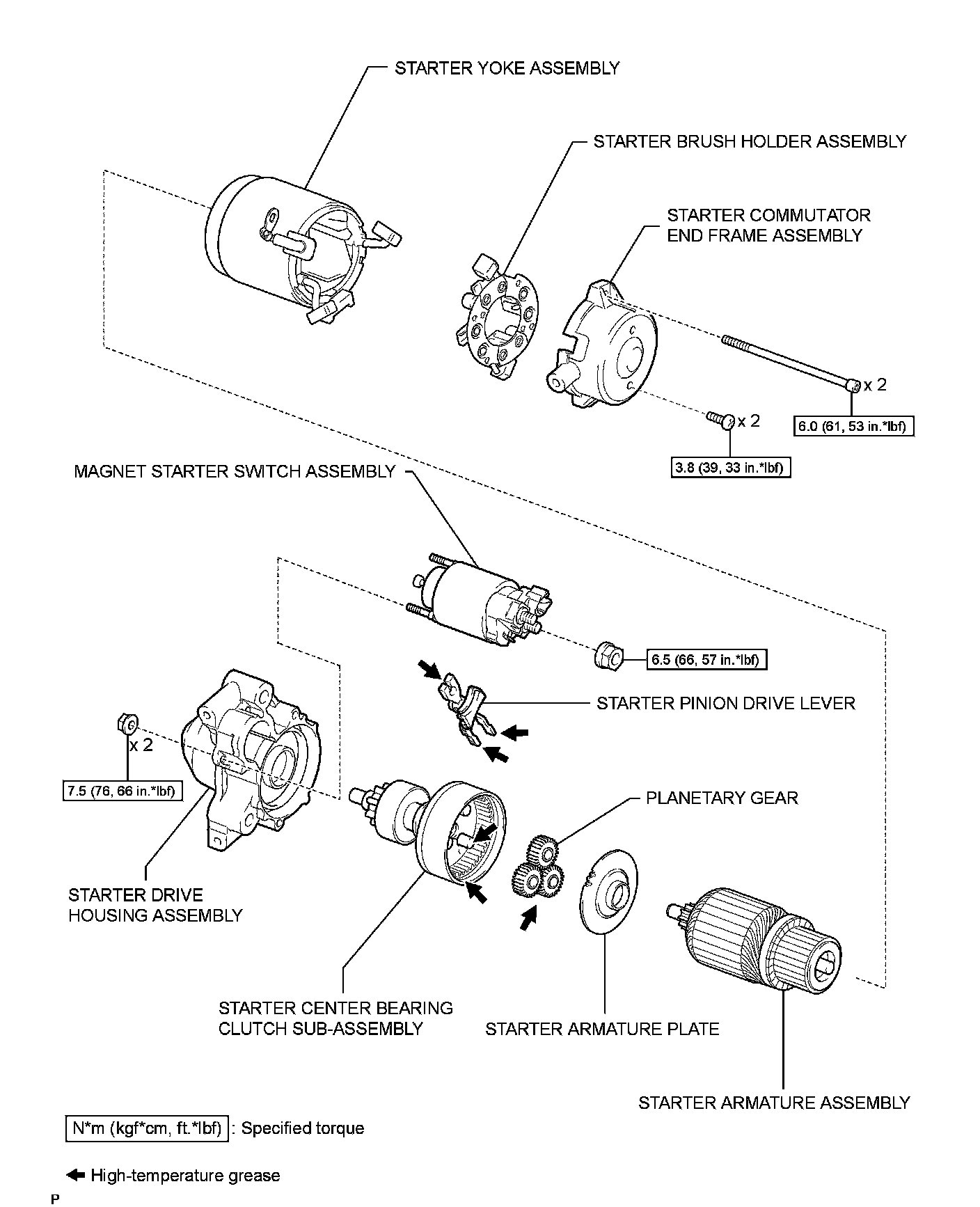

3UR-FE STARTING: STARTER: COMPONENTS
